Product Details

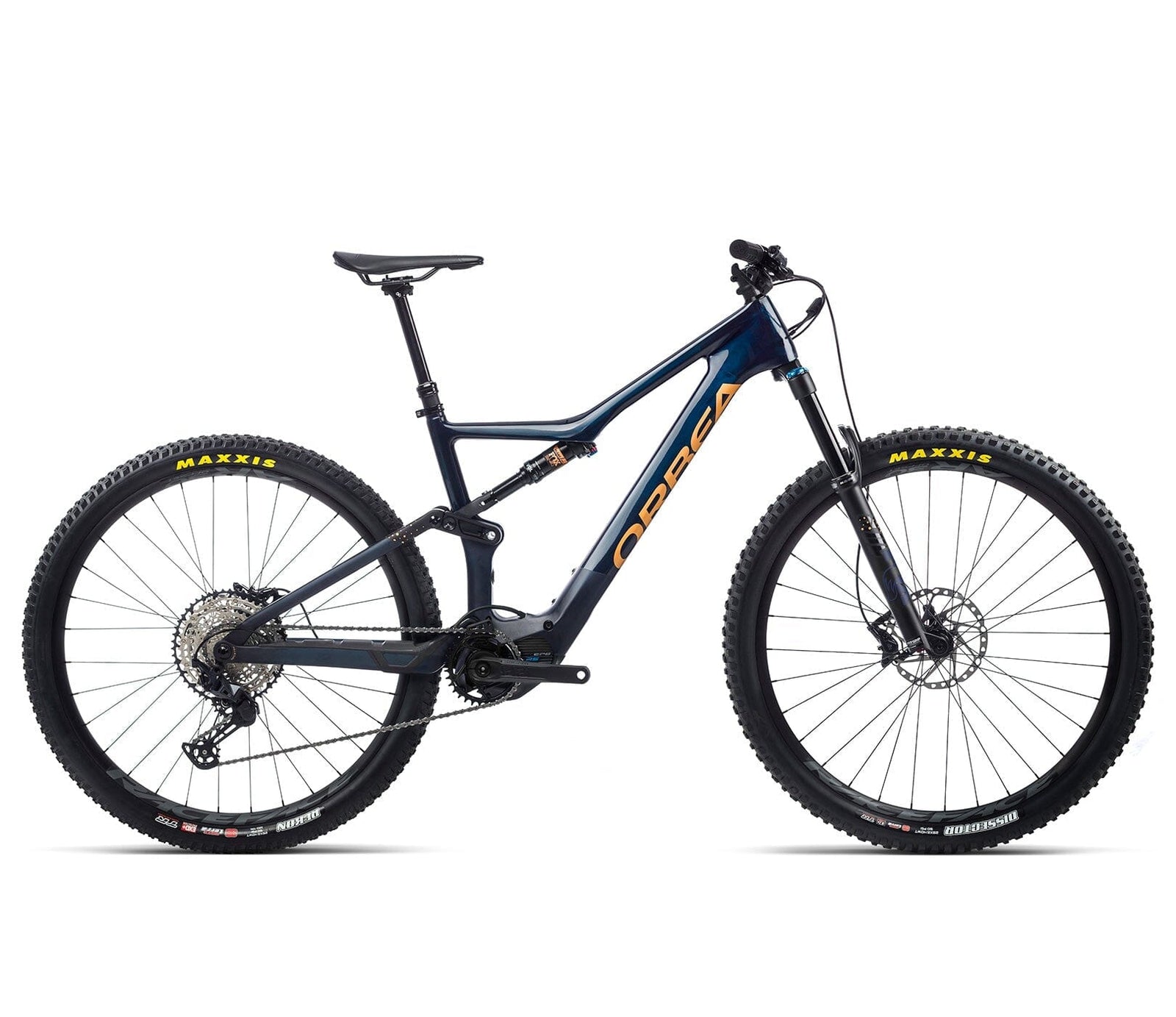

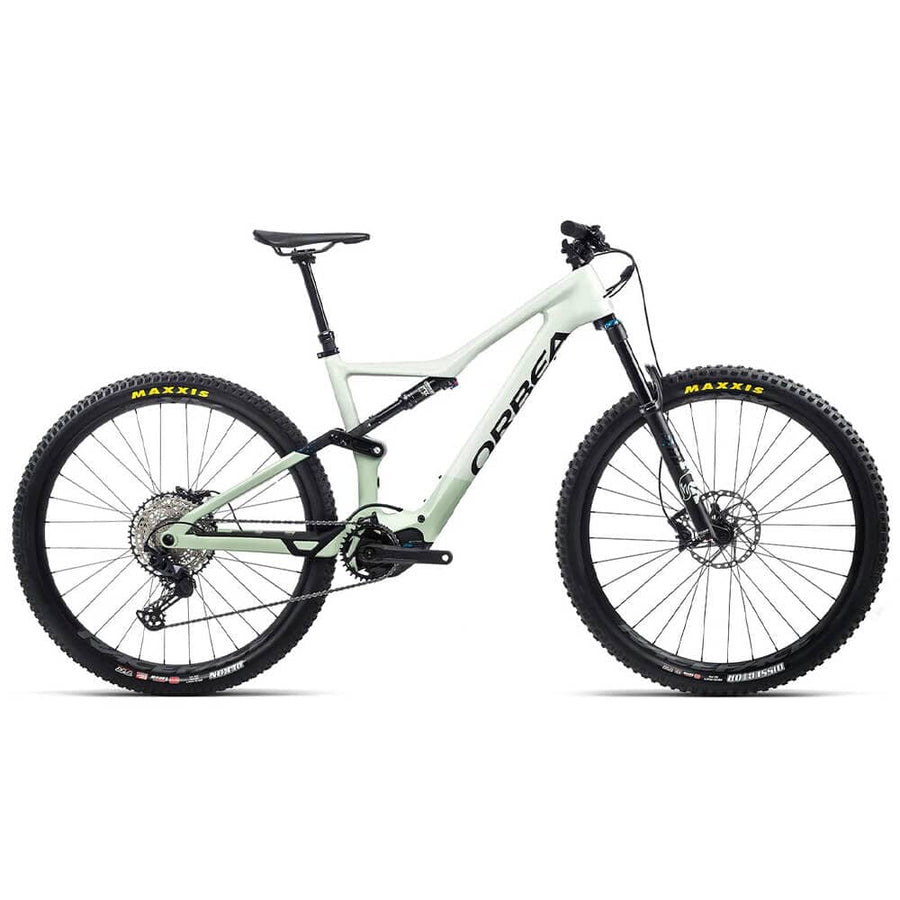

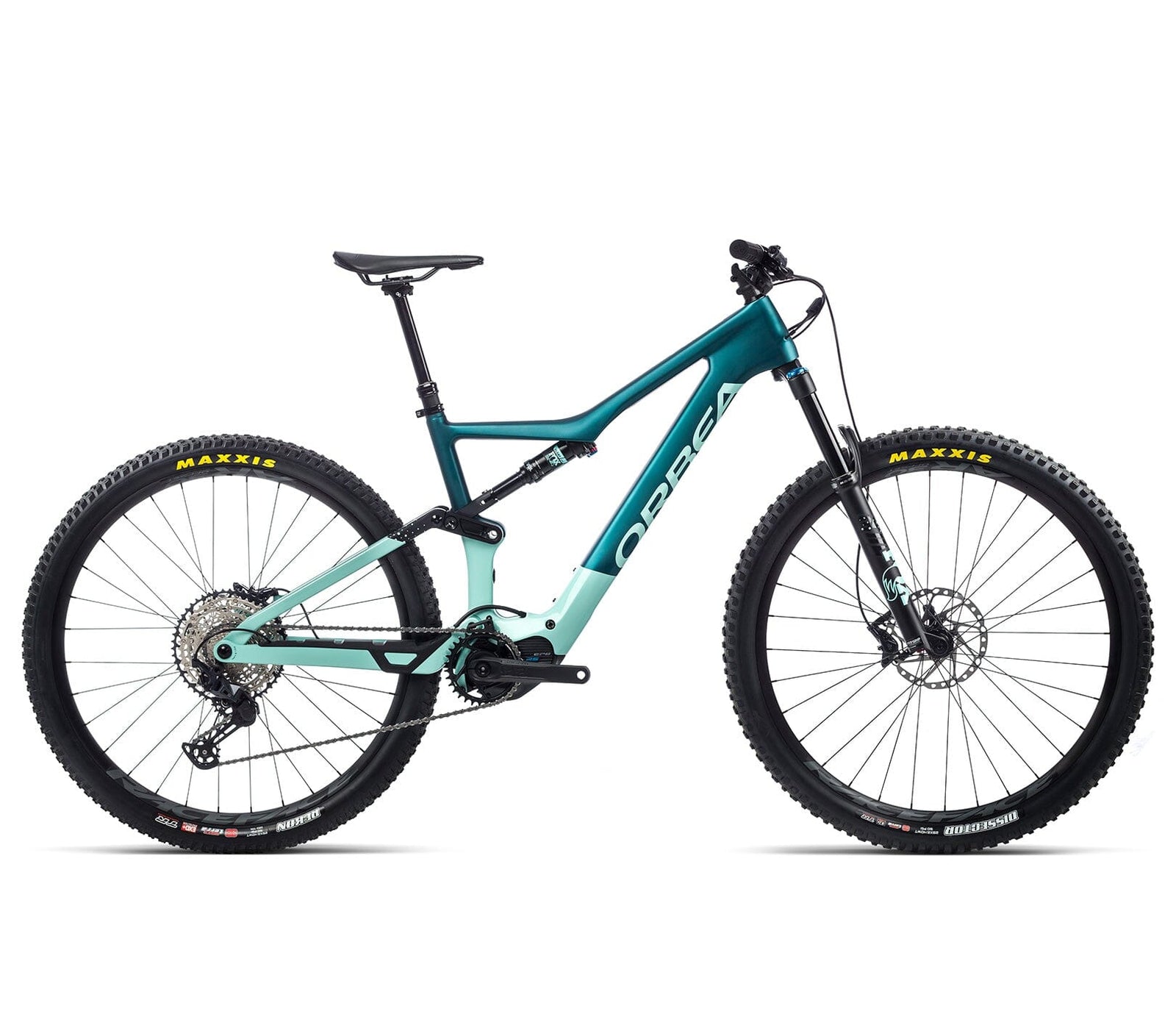

The new Orbea Rise M20 is a powerful electric mountain bike designed to conquer any terrain with ease. Featuring a robust Shimano EP801-RS motor and a dependable Shimano SLX drivetrain, it achieves speeds of up to 20mph and covers an impressive range of 60 miles.
Equipped with aggressive Maxxis tires on Race Face AR 30c wheels, the Orbea Rise M20 becomes the ultimate off-road adventure companion. These tires feature an EXO layer for exceptional grip and speed, instilling confidence for tackling challenging trails. The bike's design includes a steeper seat angle for a more comfortable pedaling position and a shorter seat tube, accommodating longer dropper posts for improved downhill performance. The OC Mountain Control MC31 handlebar with a 20mm rise and 800mm width helps you maintain control in various riding situations.
*Please note that bike specifications are subject to change without prior notice |
FRAME | Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148 |
---|---|
SHOCK | Fox Float Performance 2-Position Evol custom tune 210x55mm |
FORK | Fox 34 Float Performance 140 3-Position QR15x110 |
HEADSET | Alloy 1-1/2", Black Oxidated Bearing |
CHAINRING | e*thirteen e*spec Direct Mount 32T Boost |
CRANK | Shimano Steps EM600 |
SHIFTERS | Shimano SLX M7100 I-Spec EV |
CASSETTE | Shimano CS-M7100 10-51t 12-Speed |
REAR DERAILLEUR | Shimano SLX M7100 SGS Shadow Plus |
CHAIN | Shimano M6100 |
CHAINGUIDE | Orbea Rise chainguide |
HANDLEBAR | OC Mountain Control MC31, Rise20, Width 800 |
STEM | OC Mountain Control MC20, 0º |
COMPUTER MOUNT | OC Computer Mount CM-05, Garmin/Sigma |
BRAKES | Shimano M6100 Hydraulic Disc |
WHEELS | Race Face AR 30c Tubeless Ready |
TYRES | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
TYRES | Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR |
SEATPOST | OC Mountain Control MC21, 31.6mm, Dropper |
SEATPOST LEVER | Shimano SL-MT500 I-Spec EV |
SADDLE | Fizik Terra Ridon X5 145mm |
GRIPS | OC Lock On |
MOTOR | Shimano EP801-RS |
BATTERY | Orbea Internal 360Wh (Optional 540Wh) |
RANGE EXTENDER | N/A |
DISPLAY | N/A |
CHARGER | Orbea 2.Generation eBike Smart charger 42V/2-4A |
REMOTE | EN600-L |
Size | S | M | L | XL |
---|---|---|---|---|
1 - Seat Tube (C-T) | 381 | 419 | 457 | 508 |
2 - Top Tube (EFF) | 565 | 592 | 619 | 649 |
3 - Head Tube | 95 | 105 | 120 | 140 |
4 - Chainstay | 445 | 445 | 445 | 445 |
5 - BB Height | 336 | 336 | 336 | 336 |
6 - BB Drop | 35/32 | 35/32 | 35/32 | 35/32 |
7 - Wheelbase | 1180 | 1205 | 1229 | 1255 |
8 - Head Angle | 66º/65.5º | 66º/65.5º | 66º/65.5º | 66º/65.5º |
9 - Seat Angle | 77º/76.5º | 77º/76.5º | 77º/76.5º | 77º/76.5º |
10 - Standover | 710 | 736 | 766 | 776 |
11 - Reach | 425 | 450 | 474 | 500 |
12 - Stack | 604 | 613 | 627 | 646 |
13 - Fork Length | 547 | 547 | 547 | 547 |
Rake | 44 | 44 | 44 | 44 |
