Orbea Orca M20iLTD Bikes Orbea NEW Orbea Orca M20iLTD Bikes Orbea Tanzanite (Matt) - Carbon Raw (Matt) 47 Orbea Orca M20iLTD Bikes Orbea Wine Red - Titanium (Gloss) 47
Orbea Orca M20iLTD Bikes Orbea
NEW Orbea Orca M20iLTD Bikes Orbea Tanzanite (Matt) - Carbon Raw (Matt) 47
Orbea Orca M20iLTD Bikes Orbea Wine Red - Titanium (Gloss) 47
SKU: 210000144252
In Stock
On Sale

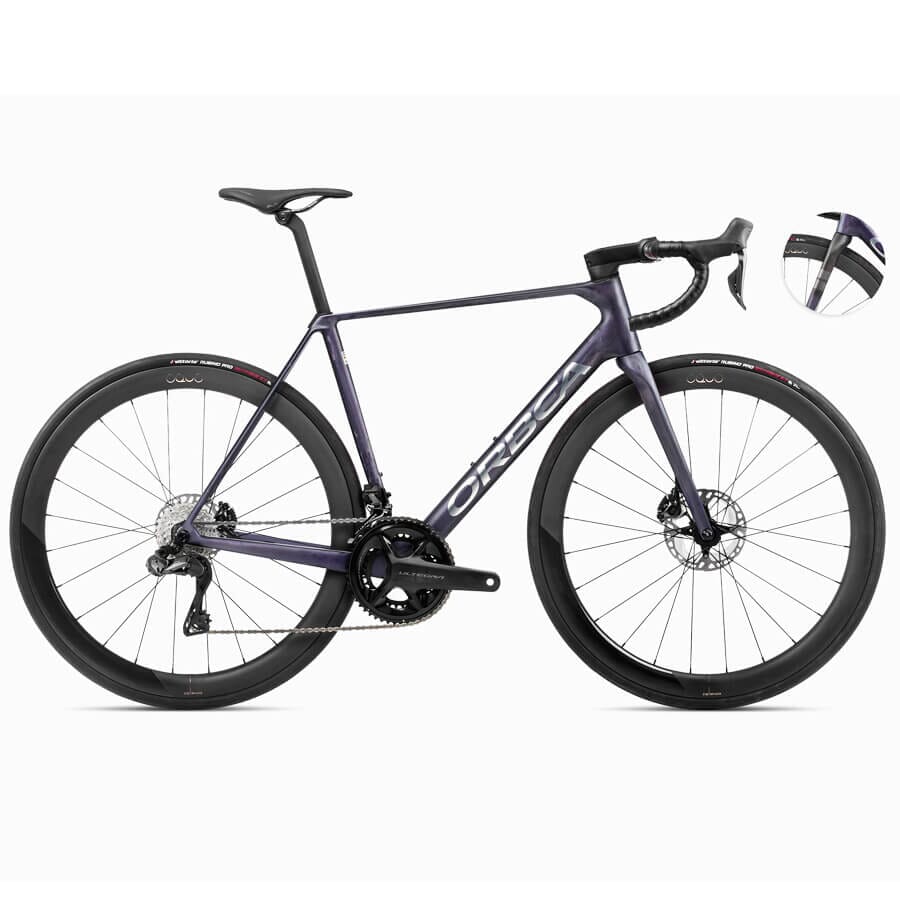

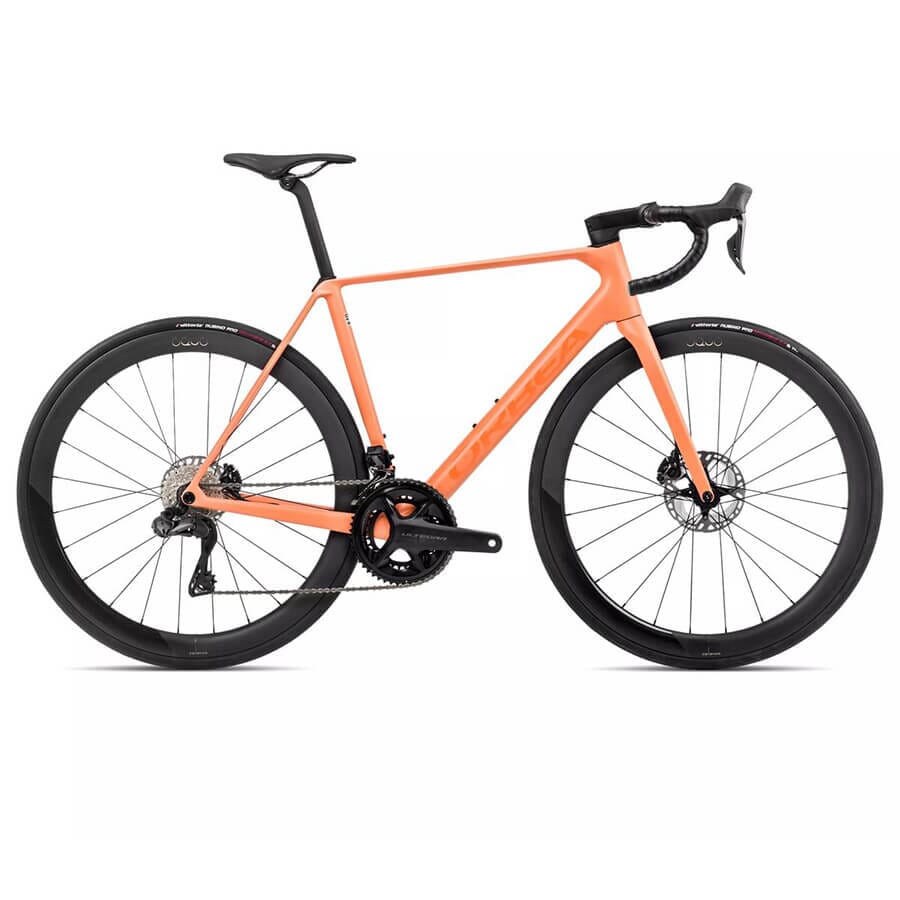

Orbea Orca M20iLTD

Regular price $6,999.00
Regular price $6,999.00 Sale price $6,999.00
Color
Size Guide (Opens in a new tab)
contact us
Your satisfaction is our top priority.

Product Details

Orbea recognizes the polarization in the road bike world, with bikes focused on either climbing, aerodynamics, or endurance and knows that one bike really can’t effectively cover all the bases. With this in mind, Orbea has chosen to “Praise The Light” with the new Orca and deliver a superior climbing machine. The 7th generation Orbea Orca’s mission is simple: deliver the best climbing experience possible. The latest Orca accomplishes this via excellent power transfer, agile handling, vibration damping, and of course, impressively light weight.

Celebrating the 20th anniversary of the model, this latest edition of the Orca achieves its lofty aspirations by removing as many overlaps in the carbon frame layup as possible and carefully shaping the frame to avoid “sharp” edges and shape elements in the frame where epoxy can gather and add weight. Orbea also keeps the overall weight down by curating the component selection with their own OC Performance cockpits and their new line of Oquo wheels. Paint and frame hardware are also handled at Orbea’s Basque Country HQ, further enabling them to further control what does and doesn’t add weight to the bike.

The feeling of a lightweight bike is unbeatable, but all of the low-weight in the world is meaningless if the bike can’t deliver on the rest of the riding experience. As such, the Orca has been painstakingly engineered to deliver an impressive stiffness to weight ratio, agile, predictable handling and responsive acceleration. The previous geometry has been adjusted with slightly shorter chain-stays which helps deliver this agility, rounder tube shapes help reduce energy-robbing vibrations and wider tire clearance lets you run up to 32mm’s of rubber.

While aerodynamics are unapologetically not key to the new Orca, Orbea hasn’t forgotten about the marginal gains available with aero-optimization. Orbea states that whenever aerodynamics don’t compromise weight or feel, they choose the most aero solution. Orbea’s “ICR” cable routing minimizes drag up front, while the new seat clamp mechanism has been carefully designed to reduce surface area and improve aerodynamics.

The new Orca is built on Orbea’s nearly century-long understanding of performance and design, reflecting their belief that bikes should look great and ride better. Orca's minimal, timeless lines give it a distinctive style to go along with some very modern technology. The M20i LTD version features Orbea's lightest "OMX" level carbon frame, a 12 speed Shimano Ultegra Di2 drivetrain and Oquo Road Performance RP45LTD carbon wheels.

*Please note that bike specifications are subject to change without prior notice
FRAME Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
FORK Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
HEADSET FSA 1-1/2" Integrated Aluminium Cup
CRANKSET Shimano Ultegra R8100 34x50t
SHIFTERS Shimano ST-8170
CASSETTE Shimano Ultegra R8100 11-30t 12-Speed
REAR DERAILLEUR Shimano Ultegra Di2 R8150
FRONT DERAILLEUR Shimano Ultegra Di2 R8150
CHAIN Shimano M8100
HANDLEBAR OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole
STEM OC Road Performance RP10, -8º
BRAKES Shimano R8170 Hydraulic Disc
ROTORS 160mm Front / 140mm Rear
WHEELS Oquo Road Performance RP45LTD, carbon Mini Hook rim, 45mm profile, Zipp Cognition VS2 hub, 21mm internal width, Sapim CX-Ray spokes, 700C
TIRES Vittoria Corsa Pro G2.0 TLR 700x28c
FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Lite
REAR WHEEL AXLE Orbea Thru Axle 12x142mm M12x2 P1 Lite
SEATPOST OC Performance XP10-S Carbon, 27.2mm, Setback 20
SADDLE Fizik Vento Antares R3 Kium Rail 140mm
HANDLEBAR TAPE Lyzard DSP 2.5mm
Size 47 49 51 53 55 57 60
1 - Seat Tube (C-T) 440 460 480 500 520 540 570
2 - Top Tube (EFF) 510.3 522.7 535.9 548.5 560.4 576.1 590
3 - Head Tube 110.5 118.2 134.6 152.9 173.1 191.2 218.3
4 - Chainstay 408 408 408 408 408 408 408
5 - BB Height 268.5 268.5 268.5 270.5 270.5 270.5 270.5
6 - BB Drop 72 72 72 70 70 70 70
7 - Wheelbase 971.8 975.4 980 981.2 991.4 1001.9 1015.6
8 - Head Angle 71 71.5 72.2 72.8 73 73.2 73.2
9 - Seat Angle 74.5 74 73.7 73.5 73.5 73.2 73.2
10 - Standover 736.5 748.5 767.5 788.5 808.5 826.5 852.5
11 - Reach 370 375 380 385 391 398 404
12 - Stack 506 515 533 552 572 590 616
13 - Fork Length 365 365 365 365 365 365 365
14 - Rake 48 48 48 43 43 43 43
15 - Trail 66 62.8 58.4 59.9 58.7 57.4 57.4
