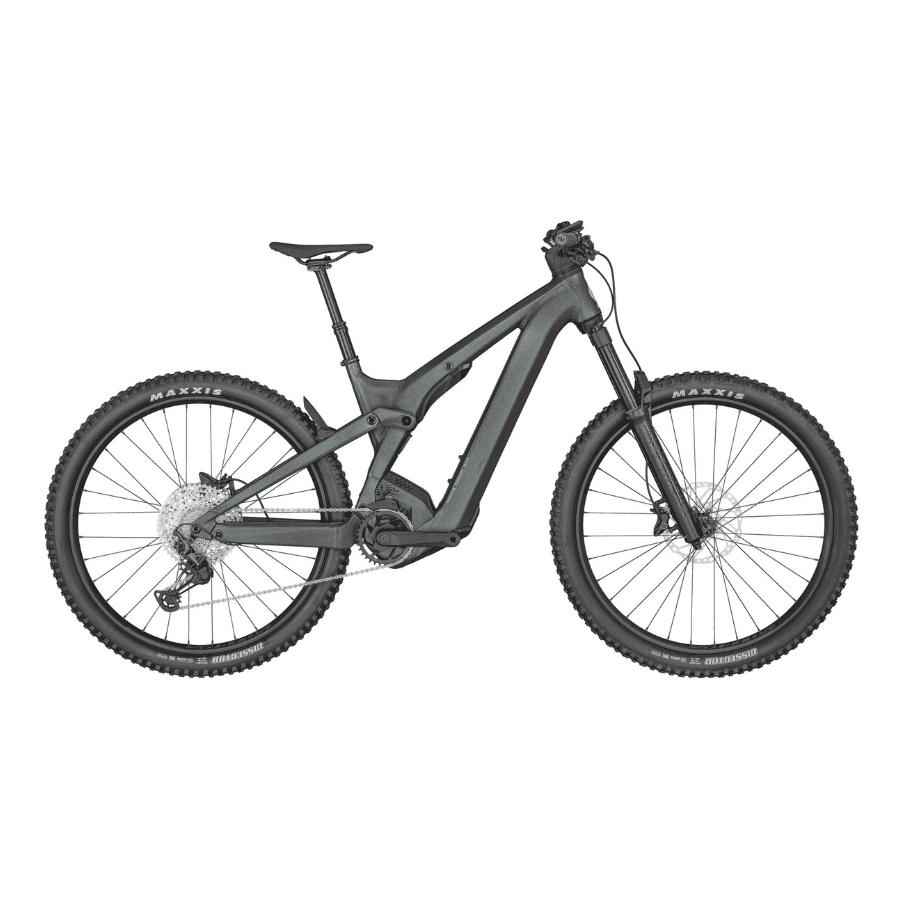

SCOTT Patron eRide 920
A new standard for integration, the SCOTT Patron eRide 920 is SCOTT's vision for the ultimate electric mountain bike. This bike is a tank, quite literally. On the heavier side but with a low center of gravity it handles incredibly well. And it gets you back up with its powerful motor and battery combo. This is not an e-bike to be messed with.
First thing first, where's the shock? It's integrated into the top tube, out of sight and out of harm's way. The 160mm travel means it can take a beating on the descents. It comes with TwinLoc technology to lock it out from your handlebar for improved pedaling efficiency. Even when not locked out, it sits high in the travel for more comfortable climbing. Putting the shock in the frame also allowed more space for the motor, battery, and water bottle. A flap on the bottom of the tube grants access to all necessary adjustments including setting sag.
The Patron eRide comes with the latest technology from Bosch. The new 750Wh battery and its 20% additional capacity set a new standard. Scott managed to fit the largest battery available without impacting tube proportions, offering sizes from small to Xlarge. Ride up to 2000m of elevation on eco mode or half that on turbo mode.
The Bosch motor has 85Nm and up to 340% assistance with new software that provides a natural feel. It's vertically mounted and cradled in the frame to support it from underneath. With the top of the motor more open, the air rushing by is able to cool it off more efficiently.
The Patron eRide has a LOT going on with the handlebars. With many levers and buttons come many cables and wires. Luckily these are internally routed directly into the handlebar, keeping things clean and organized.
Something a bit different for an e-mountain bike is integrated LED lights in the rear fender. On top of that, a cable is already routed, and a plug is already mounted on the handlebar for a front light. A range of Syncros accessories is available such as a kickstand, a rear fender, a rear rack, or an action camera mount.
With 160mm of travel front and rear, this can be considered an enduro or trail bike on the downhills and feels closer to a cross-country bike on the climbs with the dual suspension lockout. The SCOTT Patron eRide 920 is a tank, in the best way possible.
|BIKE||PATRON eRIDE 920|
|FRAME||Alloy Frame & Link Virtual 4 link kinematic VLK 29x2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8" Headtube, Central Kickstand Mount Integr. Cable|
|TRAVEL||Front: 160mm / Rear: 160mm|
|FORK||RockShox Domain Air 15x110mm QR axle / 1.8" Tapered Steerer Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike|
|REAR SHOCK||FOX Float EVOL eRIDE Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 160mm / 205x60mm|
|REMOTE SYSTEM||SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 modes|
|DRIVE UNIT||Bosch Performance CX EU: 25kmh / INT: 20mph|
|DISPLAY||Bosch LED Remote & Kiox 300|
|REAR DERAILLEUR||Shimano XT / 12 Speed|
|CRANKSET||FSA CK-745 165mm / 34T|
|CHAINGUIDE||e*thirteen / e*spec Slider|
|CHAINRING||FSA WB604 / 34T / DM / Steel|
|CASSETTE||Shimano CS-M6100 / 10-51 T|
|BRAKES||Shimano BR-MT520 4 Piston|
|ROTOR||Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm|
|HANDLEBAR||Syncros Hixon 2.0 / Alloy 6061D.B. 12mm rise / 9° / 780mm Syncros Pro lock-on grips H'STEMSyncros AM2.0 / 6061 Alloy 31.8mm / 4° / 1 1/8"|
|SEATPOST||Syncros Duncan Dropper Post 2.5 31.6mm / S size 125mm / M & L size 150mm / XL size 170mm|
|SEAT||Syncros Tofino 1.5 Regular Titanium rails|
|HEADSET||Acros / 1.8" ZS66 OD74 / integr. Cable|
|HUB (FRONT)||Formula CL-811 / 15x110mm|
|HUB (REAR)||Formula ECT-1481 / Boost 148x12mm|
|RIMS||Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready|
|FRONT TIRE||Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra|
|REAR TIRE||Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra|
|LIGHTS||Bosch Light Cable pre-installed F&R|
|EXTRAS||Rock Shox Fork Fender Syncros eRIDE integrated light fender|
|APPROX WEIGHTS IN KG||26.50|
|APPROX WEIGHTS IN LBS||58.42|
|MAX. SYSTEM WEIGHT||128 kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.|
|A||HEAD TUBE ANGLE||64.5 °||65.0 °||65.0 °||65.0 °|
|B||HEAD TUBE LENGTH||120.0 MM||125.0 MM||135.0 MM||145.0 MM|
|C||TOP TUBE HORIZONTAL||579.4 MM||595.0 MM||625.6 MM||656.4 MM|
|D||STANDOVER HEIGHT||766.0 MM||766.0 MM||766.0 MM||766.0 MM|
|E||BB OFFSET||-30.0 MM||-30.0 MM||-30.0 MM||-30.0 MM|
|F||BB HEIGHT||347.0 MM||347.0 MM||347.0 MM||347.0 MM|
|G||WHEEL BASE||1,221.7 MM||1,231.7 MM||1,263.7 MM||1,295.4 MM|
|H||BB CENTER TO TOPTUBE CENTER|
|I||BB CENTER TO TOP OF SEATTUBE||410.5 MM||440.5 MM||470.4 MM||500.4 MM|
|J||SEAT ANGLE||77.0 °||76.9 °||76.9 °||76.8 °|
|K||CHAINSTAY||454.0 MM||454.0 MM||454.0 MM||454.0 MM|
|L||REACH||432.7 MM||445.8 MM||473.6 MM||501.2 MM|
|M||STACK||634.8 MM||642.2 MM||651.3 MM||660.4 MM|
|N||STEM LENGTH||50.0 MM||50.0 MM||60.0 MM||60.0 MM|
|0||TRAIL||133.3 MM||129.5 MM||129.5 MM||129.5 MM|
|P||FORK LENGTH||567.1 MM||567.1 MM||567.1 MM||567.1 MM|
|Q||MAXIMUM SEATPOST INSERTION||245.0 MM||265.0 MM||300.0 MM||320.0 MM|
|R||CRANK LENGTH||165.0 MM||165.0 MM||165.0 MM||165.0 MM|
