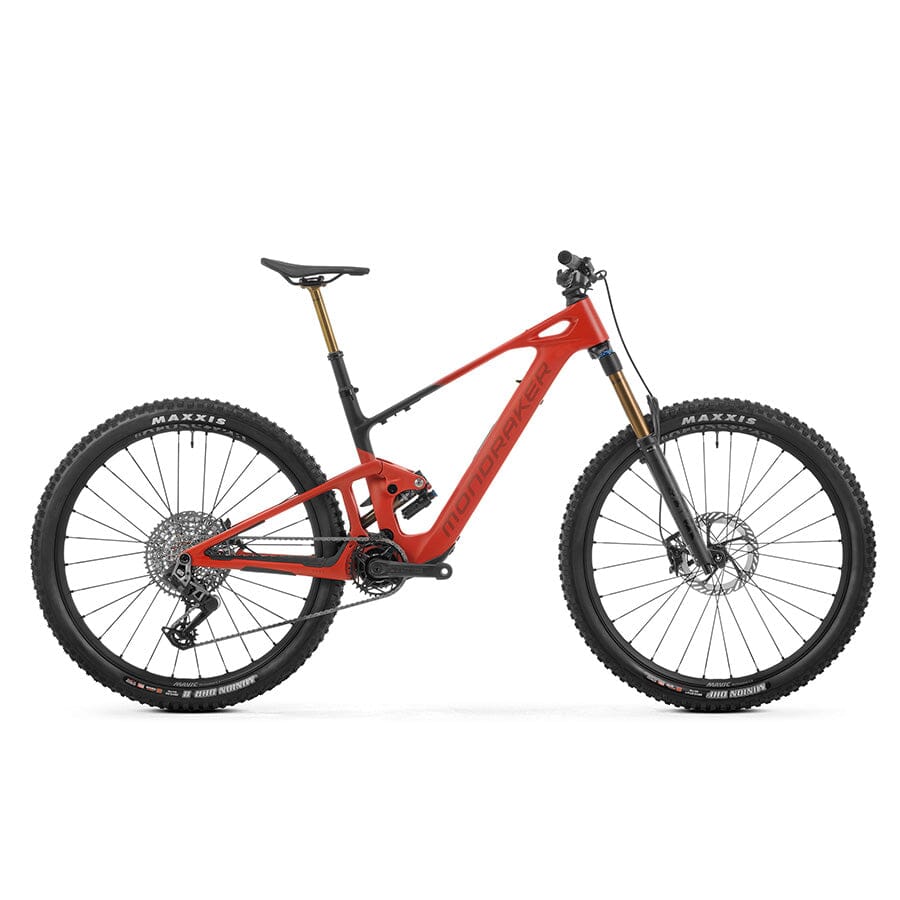

Mondraker Neat RR
Product Details
The Mondraker Neat RR redefines e-MTB performance, seamlessly blending cutting-edge motor technology with premium components for riders who demand power, precision, and agility. At its core, the TQ-HPR50 motor delivers up to 300W of power and 50Nm of torque across three natural-feeling assistance modes—ECO, MID, and HIGH—ensuring a smooth, intuitive ride that feels like a traditional drivetrain. The motor’s Harmonic Pin-Ring design eliminates belts and cogs for silent, low-friction performance, while its lightweight 3.9kg system preserves the bike’s nimble handling.
Integration is key on the Neat RR. The 360Wh removable battery, discreetly housed in the downtube, delivers up to 4 hours of ride time with more than 1,000 meters of elevation gain. For longer adventures, a 160Wh range extender boosts ride time by up to 50%. Riders can fine-tune motor settings via the TQ E-Bike app, adjusting power, assistance, and pedal response for a fully personalized ride experience.
The Neat RR’s STEALTH Carbon frame pairs with Mondraker’s ZERO Suspension System and Forward Geometry, providing superior control and stability on technical trails. Handling is further enhanced by the Fox 36 Float GRIP2 Factory Kashima fork and Fox Transfer Factory Kashima seatpost, delivering smooth, responsive travel and superior comfort.
Performance components include the SRAM GX Eagle AXS wireless 12-speed drivetrain for precise, effortless shifting, and SRAM Level Bronze Stealth brakes for confident stopping power. Mavic E-DeeMax SL 29 wheels with 29-inch tires provide exceptional traction and stability, making the Neat RR capable on any terrain.
Whether climbing steep technical trails or carving descents, the Mondraker Neat RR combines revolutionary electric assistance with a race-ready platform, creating a truly next-level e-MTB experience.
Key Features
- Frame: Stealth Air full Carbon
- Motor: TQ-HPR50, 300W Power, 50Nm Torque
- Battery: 360Wh Removable Internal
- Suspension: Fox 36 29 Float GRIP2 Factory Kashima Fork, Fox Float X Factory Kashima EVOL Shock
- Drivetrain: SRAM GX Eagle AXS Wireless 12-Speed
- Wheelset: Mavic E-DeeMax SL 29
| Specification | Detail |
|---|---|
| Frame | Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers |
| Sizes | S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| Rear Shock | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Shock Settings | CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer |
| Fork | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Headset | Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise |
| Grips | Onoff Forest, CNC lock-on, 135mm |
| Seatpost | Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm S: 95-120mm M: 125-150mm L: 155-180mm XL: 185-210mm |
| Saddle | Fizik Terra Aidon Slim X5 |
| Front Brake | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
| Rear Brake | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
| Brake Lever | Shimano XT M8100, ergonomic antiskid lever with servo wave, tool-less reach adjust, free stroke adjust |
| Rims | Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes |
| Spokes | Mavic 28 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead |
| Crankset | e*Thirteen Helix Core E*Spec Plus, all sizes: 160mm |
| Rings | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Rear Derailleur | Sram GX Eagle AXS T-Type, 12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Others | Mondraker custom design Fidlock smoked transparent 600ml bottle + Fidlock base down version. *Optional external battery: TQ 160Wh |
| Display | TQ HPR display V01 |
| Motor | TQ HPR-50 |
| Battery | TQ HPR-50 360Wh integrated and removable |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Top Tube Length | 595 mm | 615 mm | 640 mm | 660 mm |
| Bottom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Seat Tube Angle | 72.6° | 72.6° | 72.6° | 72.6° |
| Effective Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheelbase | 1235 mm | 1255 mm | 1275 mm | 1295 mm |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Reach | 450 mm | 470 mm | 495 mm | 515 mm |
| Stack | 626 mm | 626 mm | 642 mm | 650 mm |
