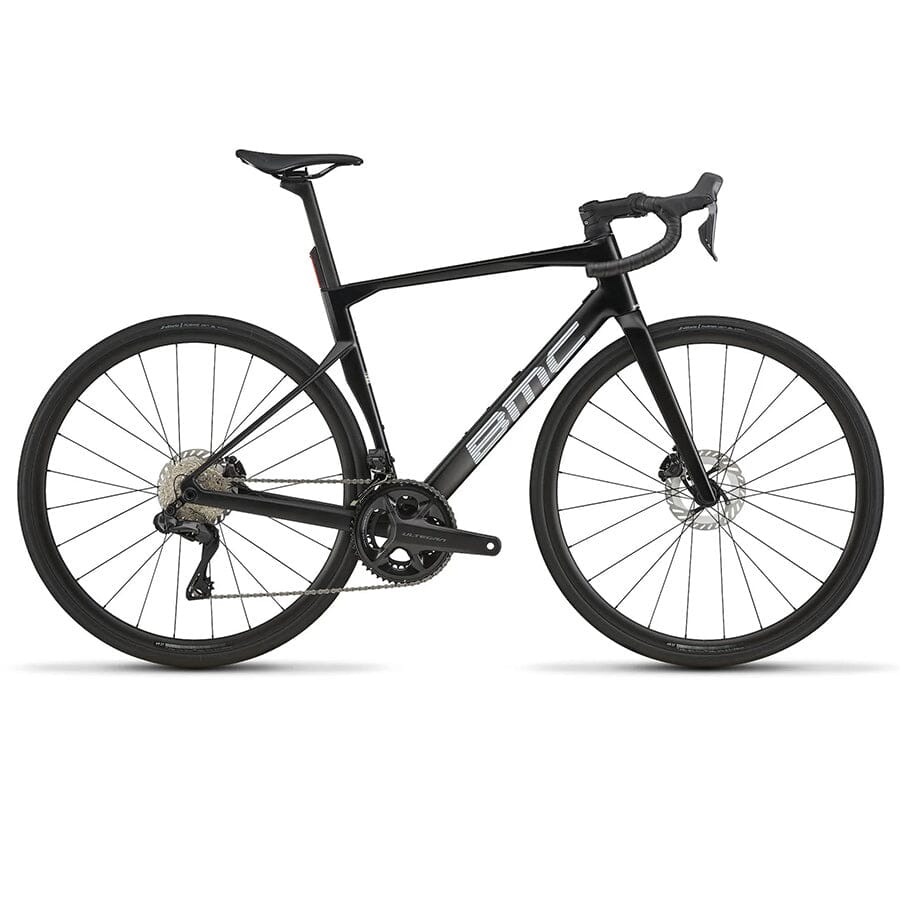

BMC Roadmachine ONE
Product Details
The BMC Roadmachine ONE represents the pinnacle of endurance road performance for riders who refuse to be confined to a single surface. Building on BMC's expertise and legacy of endurance excellence, the Roadmachine ONE combines comfort and efficiency into a highly versatile performance road bike that delivers an outstanding riding experience, resetting the standard for what an all-road endurance platform can achieve.
Crafted with BMC's Advanced Carbon frame featuring the third-generation Roadmachine platform, this bike is optimized for 32–35mm tires while maintaining clearance for gravel-ready 40mm rubber when adventure calls. The refined geometry maintains the essence of endurance with a short rear center, precise bottom bracket placement, and responsive front end for swift performance, while the Tuned Compliance Concept (TCC) Endurance design delivers unparalleled comfort for real-world riding experiences across any terrain.
Comprehensive integration elevates the Roadmachine ONE to a league of its own. The meticulously designed downtube features internal, rattle-free storage with a removable water-repellent pouch for essentials, neatly sealed under drag-reducing bottle cages. The ICS2 integrated stem offers complete stack and reach adjustability with incredibly low weight, high stiffness, and stealth cable routing. Full fender compatibility, multiple mounting points, and accessory integration options ensure readiness for year-round riding in all conditions.
Perfect for riders seeking premium all-road capability without compromise, the Roadmachine ONE pairs its advanced carbon platform with Shimano Ultegra Di2 electronic shifting and AR 27 wheels for peak smoothness and speed. Every early morning rollout becomes more enjoyable, every hunger knock more bearable, and every broken road smoother on this go-anywhere road bike where performance-driven details meet functional features.
Key Features
- Frame - Roadmachine Gen 3 Advanced Carbon with TCC Endurance
- Drivetrain - Shimano Ultegra Di2 2x12 Electronic
- Wheelset - AR 27 27mm
| Specification | Detail |
|---|---|
| Frame | Roadmachine Gen 3 | Advanced Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Full Mount - UDH | 12 x 142mm Thru-Axle |
| Fork | Roadmachine Gen 3 | Advanced Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset Size 47-51 | 45mm offset Size 54-61 |
| Stem | BMC RSM 01 | Integrated Cockpit System Technology |
| Handlebar | BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare |
| Grips | BMC Tacky 3mm |
| Seatpost | Roadmachine Carbon D-Shaped Seatpost | 0mm Offset Size 47-51 and 15mm Offset Size 54-61 | D-Fender Compatible |
| Saddle | Selle Italia Novus Boost Evo Superflow | Manganese Rail | 145mm |
| Crankset | SHIMANO Ultegra (FC-R8100) | 50-34T |
| Cassette | SHIMANO Ultegra (CS-R8101) | 11-34T |
| Chain | SHIMANO CN-M8100 |
| Front Derailleur | SHIMANO Ultegra Di2 (FD-R8150) |
| Rear Derailleur | SHIMANO Ultegra Di2 (RD-R8150) |
| Shifters | SHIMANO Ultegra Di2 (ST-R8170) |
| Gears | 2 x 12 |
| Bottom Bracket | SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B) |
| Brakes | SHIMANO Ultegra (BR-R8170) | Rotors: SHIMANO Ultegra (RT-CL800) | 160mm Front / 160mm Rear |
| Rims | AR 27 | Tubeless Ready | 27mm |
| Hubs | CL-712 & RXC-142S | Center Lock |
| Tires | Vittoria Rubino V TLR | Tubeless | 32mm |
| Tire Clearance | Up to 40mm measured (frameset clearance) | limited to 34mm by front derailleur |
| Weight without Pedals | 8.6kg | Size 54 as pictured with all accessories |
| Accessories | Integrated Rear Light 25 | Roadmachine Bottle Cages | Storage Pouch |
| ASTM Classification | Level 2 |
| System Weight Limit | 110kg |
| Measurement | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <160 | 158–174 | 172–180 | 178–186 | 184–192 | >190 |
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width (mm) | 390 / 438 | 390 / 438 | 390 / 438 | 410 / 458 | 410 / 458 | 430 / 478 |
| BB Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length (mm) | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork Rake (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Head Tube Length (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle (°) | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
| Rear Center (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| Seat Tube Angle (°) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube Length (mm) | 414 | 461 | 488 | 508 | 529 | 550 |
| Seatpost Length (mm) | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset (mm) | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height (mm) | 726 | 762 | 786 | 807 | 828 | 849 |
| Stem Angle (°) | -8 | -8 | -8 | -8 | -8 | -8 |
| Stem Length (mm) | 90 | 90 | 100 | 100 | 110 | 110 |
| Top Tube Length (mm) | 520 | 537 | 546 | 559 | 571 | 581 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
