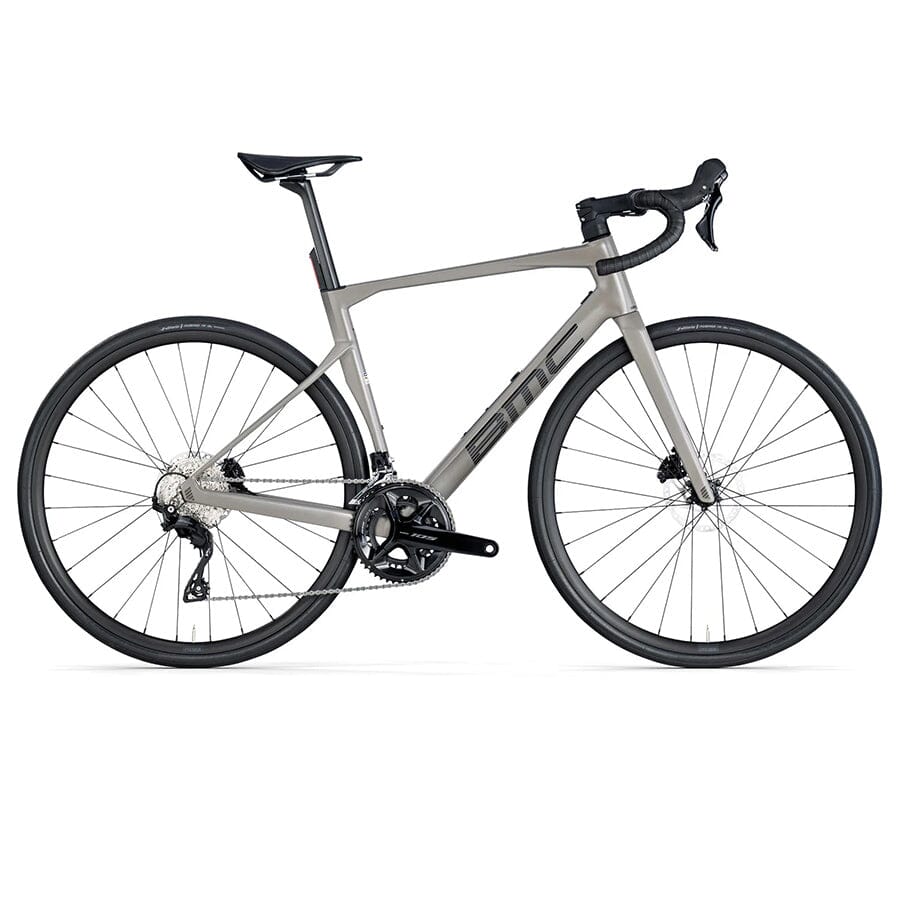

BMC Roadmachine THREE
Product Details
The BMC Roadmachine THREE represents the perfect balance of endurance and speed, crafted for riders who want to go the distance and refuse to be confined to just one surface. Building on BMC's expertise and legacy of endurance excellence, the Roadmachine combines comfort and efficiency into a highly versatile performance road bike that delivers an outstanding riding experience on any terrain encountered.
Built on BMC's lightweight Roadmachine Carbon frame with Tuned Compliance technology, this bike has been refined to reset the endurance bike standard. BMC engineers obsessed over every element of the endurance formula to deliver unparalleled comfort for real-world riding experiences. Optimized for 32-35mm tires yet adaptable to 40mm rubber, the geometry maintains the essence of endurance with a short rear center, precise bottom bracket placement, and responsive front end for swift performance. The result is peak smoothness and speed that tackles any terrain with confidence.
The reliable Shimano 105 groupset paired with PRD23 wheelset (23mm internal width) provides excellent value and dependable performance. BMC's integrated RSM01 stem offers user-friendly stack adjustability with incredibly low weight, high stiffness, and stealth cable routing, while the new Endurance Alloy handlebar delivers top-notch ergonomics for the perfect balance of control and comfort on all rides.
Comprehensive integration elevates the Roadmachine to a league of its own. Obsessively detailed downtube storage features a purpose-designed water-repellent pouch for on-ride carry, neatly sealed under drag-reducing bottle cages. The integrated rear light provides ultra-compact, USB-chargeable visibility that easily attaches and detaches from the seatpost. Full fender compatibility with mounting points on fork and frame, plus BMC's D-fender compatibility, makes this the most winterproof bike for year-round enjoyment in all conditions.
Perfect for riders seeking a go-anywhere road bike where performance-driven details and functional features meet every need, the Roadmachine THREE makes every early morning rollout more enjoyable, every hunger knock more bearable, and every broken road smoother. It's your road, your way.
Key Features
- Frame - BMC Roadmachine Carbon with Tuned Compliance Technology
- Drivetrain - Shimano 105
- Wheelset - PRD23 (23mm Internal Width)
| Specification | Detail |
|---|---|
| Frame |
Roadmachine Carbon with Tuned Compliance Concept Endurance ICS Technology Stealth Cable Routing Fender Mounts, Integrated Downtube Storage Stealth Dropout Design, 12x142mm Thru-Axle |
| Fork |
Roadmachine Carbon with Tuned Compliance Concept Endurance Internal Cable Routing, Fender Mounts, Flat Mount Disc 12x100mm Thru-Axle Offset: 50mm (Size 47–51) / 45mm (Size 54–61) |
| Stem |
BMC RSM 01 Integrated Cockpit System Technology |
| Handlebar |
BMC HB D4 03, 0, 12 Alloy 6061, Endurance Geometry 125mm drop, 70mm reach, 12° flare |
| Seatpost |
Roadmachine Carbon D-Shaped Seatpost 15mm Offset, D-Fender Compatible |
| Saddle |
Selle Italia Model X Superflow FeC Alloy Rail, 145mm |
| Crankset | Shimano 105 FC-R7100 |
| Chainrings | 50 / 34T |
| Cassette | Shimano CS-HG710, 11–36T |
| Chain | Shimano CN-M6100 |
| Front Derailleur | Shimano 105 FD-R7100 |
| Rear Derailleur | Shimano 105 RD-R7100 |
| Shifters | Shimano 105 ST-R7120 |
| Gearing | 2 x 12 Speed |
| Bottom Bracket | Shimano Press-Fit BB-RS500-PB |
| Brakes | Shimano 105 BR-R7170 Hydraulic Disc |
| Rotors |
Shimano SM-RT64 Centerlock 160mm Front / 160mm Rear |
| Rims | PRD23, 23mm |
| Hubs |
Shimano HB-TC500-12 (Front) & FH-TC500-HL (Rear) Center Lock, 28H |
| Tires |
Vittoria Rubino V, Tube Type, 32mm or Vittoria Rubino IV, Tube Type, 28mm |
| Tubeless Compatibility |
Non-Tubeless Rims Non-Tubeless Clincher Tires |
| Accessories Included |
Integrated Rear Light 25 Storage Pouch |
| Tire Clearance |
Up to 40mm (frameset clearance) Limited to 34mm by front derailleur |
| Weight (Without Pedals) | 9.1 kg (Size 54 as pictured, with accessories) |
| System Weight Limit | 110 kg |
| Measurement | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <160 | 158–174 | 172–180 | 178–186 | 184–192 | >190 |
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width (mm) | 390 / 438 | 390 / 438 | 390 / 438 | 410 / 458 | 410 / 458 | 430 / 478 |
| BB Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length (mm) | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork Rake (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Head Tube Length (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle (°) | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
| Rear Center (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| Seat Tube Angle (°) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube Length (mm) | 414 | 461 | 488 | 508 | 529 | 550 |
| Seatpost Length (mm) | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset (mm) | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height (mm) | 726 | 762 | 786 | 807 | 828 | 849 |
| Stem Angle (°) | -8 | -8 | -8 | -8 | -8 | -8 |
| Stem Length (mm) | 90 | 90 | 100 | 100 | 110 | 110 |
| Top Tube Length (mm) | 520 | 537 | 546 | 559 | 571 | 581 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
