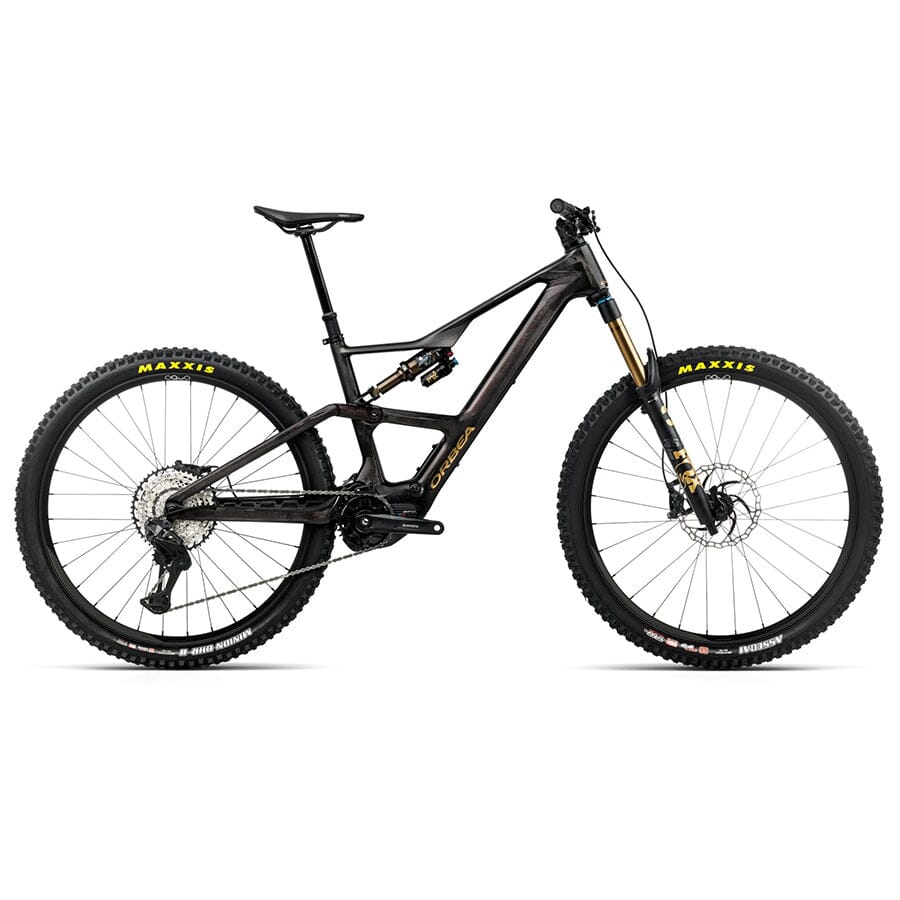

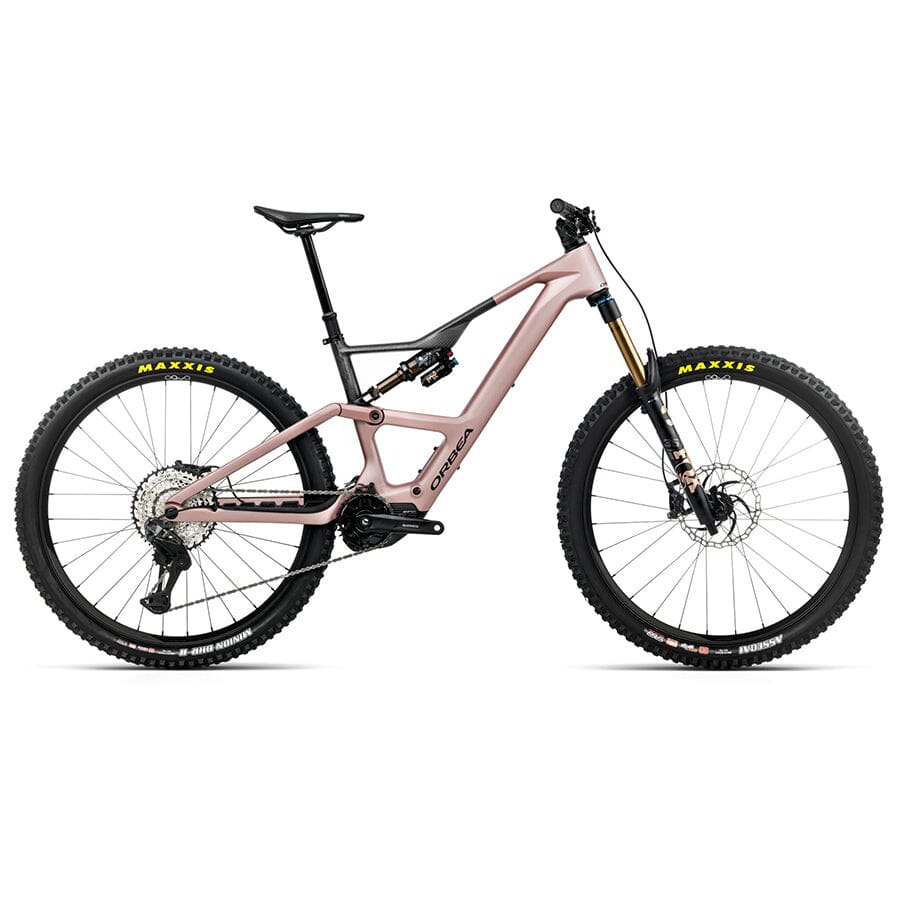

Orbea Rise LT M10 20MPH
Product Details
The Orbea Rise LT M10 redefines the eMTB experience for trail enthusiasts who crave adventure and demand more aggressive capability. Built for riders seeking flow with extra bite, this bike features 160mm front and 150mm rear suspension travel paired with progressive trail geometry that delivers exhilarating performance across any terrain. Rise LT offers trail shredders a more aggressive stance and additional travel for big adventures on rugged trails while maintaining the lightweight, playful character that defines the Rise platform.
Built on Orbea's OMR carbon frame with innovative asymmetric design, the Rise LT M10 enhances torsional rigidity through construction techniques inspired by the robust Rallon and Occam models. The Secure Battery System (SBS) ensures seamless integration without compromising frame structure, allowing optimized stiffness and reduced weight where needed. Powered by the Shimano EP801 motor with RS GEN2 MC firmware tuning, the bike delivers up to 85Nm of natural, responsive torque that feels intuitive and connected, providing power when needed while conserving battery for exceptional range from either the 420Wh or optional 630Wh battery.
The Fox 36 Float Factory fork with 160mm travel and Grip X damper pairs with the Fox Float X Factory shock to deliver progressive trail kinematics with approximately 23% progressivity, balancing grip with composure on bigger hits. Concentric Boost suspension design places a pivot at the rear axle, keeping suspension active under braking while using fewer parts to remove weight, add rigidity, and improve reliability. Shimano XT M8260 SGS shifting and Oquo Mountain Control MC32TEAM wheels complete the premium build.
Perfect for riders ready to attack trails with confidence, the Rise LT M10 features Rider Synergy (RS) custom firmware with preconfigured ride modes accessible through the Shimano E-Tube app, offering exceptional versatility to adapt settings for any challenge. Whether scaling steep climbs, navigating technical descents, or enjoying long-distance adventures, this bike harmonizes power, precision, and innovation—making every ride an opportunity to rise beyond.
Key Features
- Frame - Orbea Rise OMR Carbon
- Motor - Shimano EP801
- Battery - 420Wh or 630Wh Internal Battery
- Suspension - Fox 36 Float Factory Fork with Fox Float X Factory Shock
- Drivetrain - Shimano XT M8260 SGS
- Wheelset - Oquo Mountain Control MC32TEAM
| Specification | Detail |
|---|---|
| Frame | Orbea Rise LT OMR, 150mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 36 Float Factory 160, Grip X, QR15x110, Kashima |
| Shock | Fox Float X Factory 2-Pos Adjust Evol LV, Kashima, custom tune, 210x55mm |
| Headset / Steerer | Alloy 1-1/2", Black Oxidated Bearing |
| Battery | Orbea Internal Battery, 420Wh or 630Wh |
| Range Extender | N/A |
| Motor | Shimano EP801 RS Gen2 MC |
| Charger | Orbea 2nd Generation eBike Smart Charger, 42V / 2–4A |
| Remote | Orbea System Controller with eDropper Remote |
| Chainring | e*thirteen Helix Core e*spec Direct Mount, 32T, 55mm chainline |
| Crankset | Shimano Steps EM600 |
| Shifters | Shimano XT M8250 |
| Rear Derailleur | Shimano XT M8260 SGS |
| Cassette | Shimano CS-M7100, 10–51T, 12-speed |
| Chain | Shimano M7100 |
| Chainguide | Orbea eBike chainguide |
| Handlebar | OC Mountain Control MC10 Carbon, 20mm rise, 800mm width |
| Stem | OC Mountain Control MC20, 0° |
| Computer Mount | OC Computer Mount CM-05, Garmin / Sigma |
| Brakes | Shimano XT M8220 Hydraulic Disc |
| Rotors | Galfer Wave Rotors, 203mm front / 180mm rear |
| Wheelset | Oquo Mountain Control MC32TEAM |
| Front Tire | Maxxis Assegai 2.50" 60TPI, 3CG / EXO+ / TR, MaxxGrip |
| Rear Tire | Maxxis Minion DHR II 2.40" WT FB, 120TPI, 3C MaxxTerra, EXO+ TR |
| Seatpost | OC Mountain Control MC10, 31.6mm, Electronic Dropper |
| Saddle | Fizik Terra Ridon X5, 145mm |
| Lights | N/A |
| Tools | OC FLP Multitool MT-20 (Hex 2/3/4/5) + OC rear axle lever (Hex 6 & valve core removal) |
| Measurement | S – High | S – Low | M – High | M – Low | L – High | L – Low | XL – High | XL – Low |
|---|---|---|---|---|---|---|---|---|
| Seat Tube (C–T) (mm) | 405 | 405 | 415 | 415 | 430 | 430 | 460 | 460 |
| Top Tube (Effective) (mm) | 569 | 570 | 595 | 596 | 622 | 623 | 649 | 650 |
| Head Tube Length (mm) | 95 | 95 | 100 | 100 | 110 | 110 | 120 | 120 |
| Chainstay Length (mm) | 440 | 442 | 440 | 442 | 440 | 442 | 440 | 442 |
| BB Drop (mm) | 26 | 34 | 26 | 34 | 26 | 34 | 26 | 34 |
| BB Height (mm) | – | – | – | – | – | – | – | – |
| Wheelbase (mm) | 1201 | 1203 | 1228 | 1230 | 1258 | 1259 | 1287 | 1288 |
| Head Tube Angle (°) | 64.5 | 64 | 64.5 | 64 | 64.5 | 64 | 64.5 | 64 |
| Seat Tube Angle (°) | 77.5 | 77 | 77.5 | 77 | 77.5 | 77 | 77.5 | 77 |
| Rake (mm) | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Standover Height (mm) | – | – | – | – | – | – | – | – |
| Reach (mm) | 435 | 430 | 460 | 455 | 485 | 480 | 510 | 505 |
| Fork Length (mm) | 575 | 575 | 575 | 575 | 575 | 575 | 575 | 575 |
