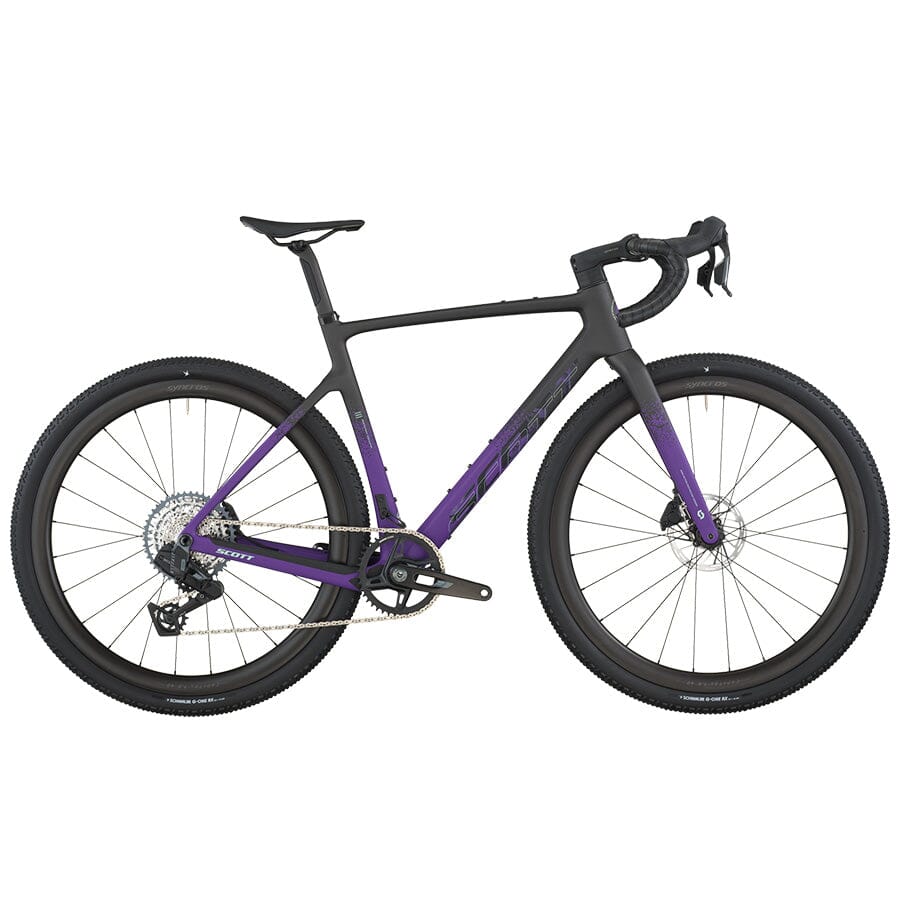

SCOTT Addict Gravel 20
Product Details
The SCOTT Addict Gravel 20 will get you wherever you're going, no matter what the trail throws at you. This adventure-ready machine combines progressive geometry, enhanced control, and comprehensive mounting options to create the perfect ticket for getting out there and exploring beyond where roads end. More capable, more versatile, and ready for serious adventure, find yourself, get lost.
Built on the Addict Gravel HMF Carbon frame featuring SCOTT's patented airfoil tube shapes, this platform proves gravel and aerodynamics can go hand in hand. The optimized airflow design on main tubes, including down tube, head tube, seat tube, seatpost, and seat stays, reduces overall drag without compromising comfort or compliance. Increased tire clearance accommodating 45mm rubber, lowered seat stays, and strategic carbon layering guarantee both optimal pedaling efficiency and enough compliance when terrain gets rough, delivering a controlled and smooth riding experience across all conditions.
The Creston ic SL X integrated cable routing system guides both mechanical and electronic shifting wires plus hydraulic hoses completely internally, matching the clean premium look found on the Addict RC and Foil while improving front-end airflow and providing more handlebar bag space without cable rubbing. Smart mounting options include bolt-on top-tube bag mounts, an extra down tube mount for additional bottle cages or toolboxes, and two different bottle cage positions for better access when running frame bags. Well-hidden Syncros-specific fender mounts with 40mm tire clearance make this equally capable as a commuter.
Perfect for riders seeking limitless gravel exploration with premium performance, the Addict Gravel 20 pairs its adventure-focused carbon platform with SRAM Rival XPLR AXS 13-speed wireless electronic shifting and Syncros Capital 1.0 40 carbon wheels. Compatible with both 1-by and 2-by drivetrains for ultimate versatility—this is serious adventure capability in a refined, aerodynamic package.
Key Features
- Frame - Addict Gravel HMF Carbon with Aero Tube Shapes
- Drivetrain - SRAM Rival XPLR AXS 13-Speed
- Wheelset - Syncros Capital 1.0 40 Carbon
| Specification | Detail |
|---|---|
| Frame | Addict Gravel HMF Carbon, Gravel Geometry, Replaceable UDH Derailleur Hanger, Internal Cable Routing, Syncros Fender Kit Ready |
| Fork | Addict Gravel HMF Flatmount Disc, 1 1/4"-1 1/2" Eccentric Carbon Steerer |
| Rear Derailleur | SRAM Rival XPLR AXS, 13-Speed Electronic Shift System |
| Shifters | SRAM Rival AXS HRD Shift-Brake System |
| Crankset | SRAM Rival XPLR Crankset, 42T |
| Bottom Bracket | SRAM DUB PF Road 86.5 |
| Chain | SRAM Rival |
| Cassette | SRAM Rival XPLR XG-1351, 10-46T |
| Brakes | SRAM Rival AXS HRD Shift-Brake System |
| Rotors | SRAM Paceline, 160mm Front / 160mm Rear |
| Handlebar | Syncros Creston 2.0 X, Alloy 31.8mm |
| Stem | Syncros RR2.0 1 1/4", Four Bolt, 31.8mm |
| Seatpost | Syncros SP-R101-CF |
| Saddle | Syncros Tofino Regular 2.0 Cutout |
| Headset | Acros AIF-1134 |
| Wheelset | Syncros Capital 1.0 40 Carbon, 24 Front / 24 Rear, Syncros SL Axle with Removable Lever & Tool |
| Front Tire | Schwalbe G-One RX, 700x45C |
| Rear Tire | Schwalbe G-One RX, 700x45C |
| Weight | Approx. 8.8 kg / 19.40 lbs |
| Max System Weight | 120 kg (Total weight including bike, rider, equipment, and additional luggage) |
| Size | XS/49 | S/52 | M/54 | L/56 | XL/58 |
|---|---|---|---|---|---|
| Head Tube Angle | 70.0° | 70.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length | 95.0 | 122.0 | 140.0 | 166.0 | 187.0 |
| Top Tube Horizontal | 518.0 | 534.5 | 554.5 | 578.5 | 592.5 |
| Standover Height | 759.0 | 786.0 | 807.0 | 828.0 | 847.0 |
| BB Offset | -71.0 | -71.0 | -71.0 | -71.0 | -71.0 |
| BB Height | 283.0 | 283.0 | 283.0 | 283.0 | 283.0 |
| Wheelbase | 1,009.4 | 1,022.9 | 1,029.2 | 1,048.7 | 1,063.5 |
| BB Center to Top Tube Center | 447.0 | 477.0 | 498.0 | 516.0 | 536.0 |
| BB Center to Top of Seat Tube | 477.0 | 507.0 | 528.0 | 546.0 | 566.0 |
| Seat Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° |
| Chainstay | 425.0 | 425.0 | 425.0 | 425.0 | 425.0 |
| Reach | 374.1 | 378.4 | 387.1 | 398.2 | 406.1 |
| Stack | 519.0 | 544.4 | 565.3 | 589.9 | 609.7 |
| Stem Length | 83.0 | 93.0 | 103.0 | 103.0 | 113.0 |
