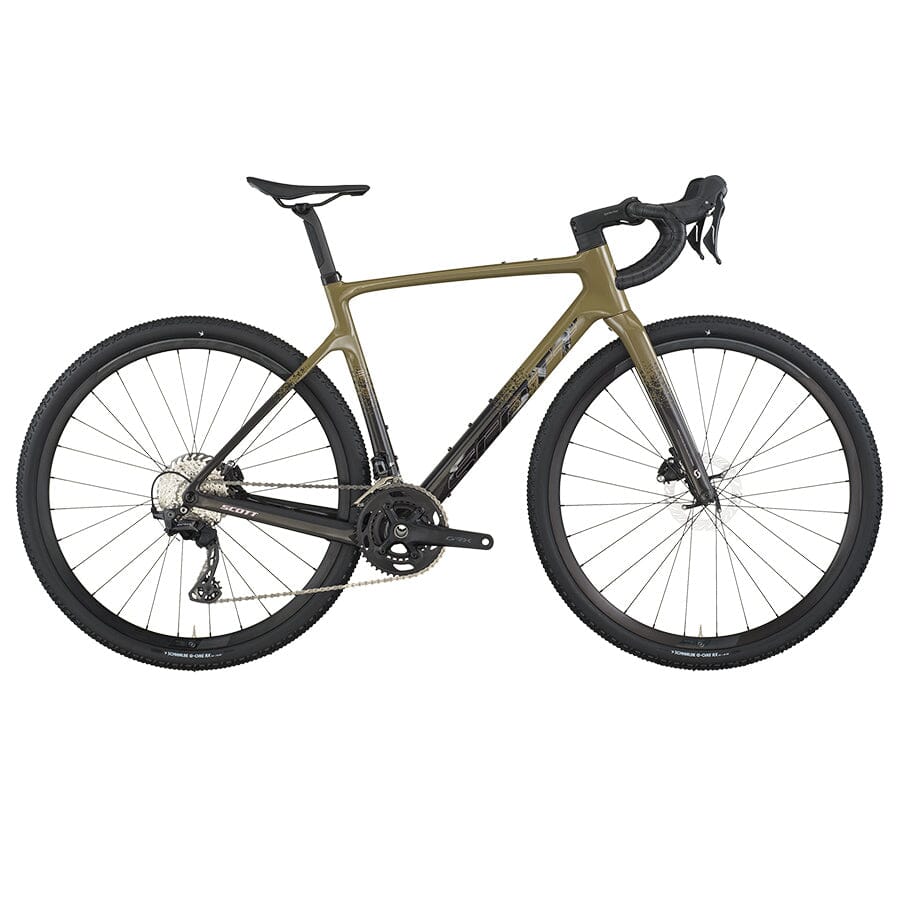

SCOTT Addict Gravel 40
Product Details
The SCOTT Addict Gravel 40 is all about getting riders to the finish line fast. More progressive, more controlled, and more versatile, this adventure-ready race machine is the ticket to getting out there, wherever out there may be. Built to deliver performance across everything from gravel races to multi-day adventures, the Addict Gravel combines speed with the capability needed for serious exploration.
Built on the Addict Gravel HMF Carbon frame and fork, this bike features advanced carbon layering that guarantees optimal pedaling efficiency while providing comfort when terrain gets rough. To ensure a controlled and smooth riding experience, SCOTT increased tire clearance to 45mm (40mm with fenders), lowered the seat stays, and applied patented airfoil design to the main tubes—down tube, head tube, seat tube, seatpost, and seat stays—optimizing airflow and reducing drag without compromising comfort or compliance.
The Creston iC SL X cockpit allows for fully integrated cable routing that guides both mechanical and electronic shifting wires plus hydraulic hoses completely internally, just like the Addict RC and Foil. This integration creates a clean, premium appearance while improving front-end airflow and providing more handlebar bag space without cable interference. Smart mounting solutions include bolt-on top-tube bag positions, an extra down tube mount for additional bottle cages or toolboxes, and two different bottle cage positions for better access when riding with frame bags.
Perfect for riders seeking a versatile gravel race machine ready for serious adventures, the Addict Gravel 40 pairs its advanced frameset with Shimano GRX RX820 24-speed shifting and Syncros RP2.0 Disc wheels. Well-hidden mounts accommodate Syncros-specific fenders, transforming the bike into a perfect commuter option. Whether racing gravel events or exploring remote routes, this bike proves that gravel and aerodynamics can go hand in hand.
Key Features
- Frame - SCOTT Addict Gravel HMF Carbon with Airfoil Tube Shaping
- Drivetrain - Shimano GRX RX820 24-Speed
- Wheelset - Syncros RP2.0 Disc
| Specification | Detail |
|---|---|
| Frame |
Addict Gravel HMF Carbon Gravel geometry Replaceable UDH derailleur hanger Internal cable routing Syncros fender kit ready |
| Fork |
Addict Gravel HMF Flatmount Disc 1 1/4"–1 1/2" eccentric carbon steerer |
| Rear Derailleur |
Shimano GRX RD-RX820 24-speed |
| Front Derailleur | Shimano GRX FD-RX820-F |
| Shifters | Shimano GRX ST-RX610, 24-speed |
| Crankset | Shimano GRX FC-RX610-2, 46/30 |
| Bottom Bracket | Shimano BB-RS500 PB |
| Chain | Shimano CN-M6100-12 |
| Cassette | Shimano CS-HG710-12, 11–36 |
| Brakes | Shimano BR-RX410 Hydraulic Disc |
| Rotors | Shimano SM-RT-CL700, 160mm front / 160mm rear |
| Handlebar | Syncros Creston 2.0 X, Alloy, 31.8mm |
| Stem | Syncros RR2.0, 1 1/4", four-bolt, 31.8mm |
| Seatpost | Syncros SP-R101-CF |
| Saddle | Syncros Tofino Regular 2.0 Cutout |
| Headset | Acros AIF-1134 |
| Wheelset |
Syncros RP2.0 Disc Syncros SL axle with removable lever and tool |
| Front Tire | Schwalbe G-One RX, 700x45C |
| Rear Tire | Schwalbe G-One RX, 700x45C |
| Max. System Weight | 120 kg (includes bike, rider, equipment, and possible additional luggage) |
| Size | XS/49 | S/52 | M/54 | L/56 | XL/58 |
|---|---|---|---|---|---|
| Head Tube Angle | 70.0° | 70.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length | 95.0 mm | 122.0 mm | 140.0 mm | 166.0 mm | 187.0 mm |
| Top Tube Horizontal | 518.0 mm | 534.5 mm | 554.5 mm | 578.5 mm | 592.5 mm |
| Standover Height | 759.0 mm | 786.0 mm | 807.0 mm | 828.0 mm | 847.0 mm |
| BB Offset | -71.0 mm | -71.0 mm | -71.0 mm | -71.0 mm | -71.0 mm |
| BB Height | 283.0 mm | 283.0 mm | 283.0 mm | 283.0 mm | 283.0 mm |
| Wheelbase | 1,009.4 mm | 1,022.9 mm | 1,029.2 mm | 1,048.7 mm | 1,063.5 mm |
| BB Center to Top Tube Center | 447.0 mm | 477.0 mm | 498.0 mm | 516.0 mm | 536.0 mm |
| BB Center to Top of Seat Tube | 477.0 mm | 507.0 mm | 528.0 mm | 546.0 mm | 566.0 mm |
| Seat Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° |
| Chainstay | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm |
| Reach | 374.1 mm | 378.4 mm | 387.1 mm | 398.2 mm | 406.1 mm |
| Stack | 519.0 mm | 544.4 mm | 565.3 mm | 589.9 mm | 609.7 mm |
| Stem Length | 83.0 mm | 93.0 mm | 103.0 mm | 103.0 mm | 113.0 mm |
