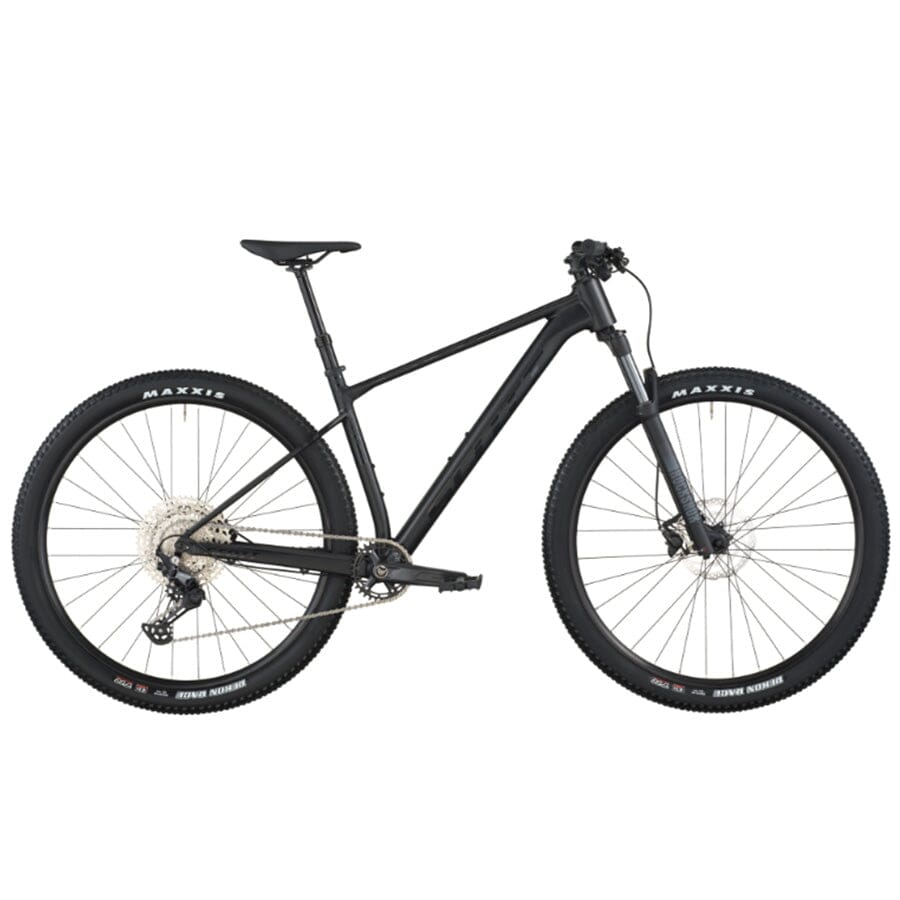

The SCOTT Scale 940 Hardtail exemplifies “bang for the buck,” offering a blend of high-end technology and performance at an accessible price. Perfect for both XC racing enthusiasts and those looking to enhance their single-track speed, this bike brings advanced features found in more expensive models to a wider audience. The Scale 940’s hardtail design ensures simplicity and responsiveness, embodying SCOTT’s world-renowned craftsmanship honed over three decades of carbon expertise.
This latest iteration of the Scale 940 introduces several notable upgrades. The new Syncros Cable Integration System and SCOTT’s RideLoc 2 remote system enhance both functionality and aesthetics. Additionally, the SRAM NX/SX Eagle Drivetrain and Shimano MT 200 Disc Brakes deliver reliable shifting and stopping power. The Scale 940 now includes SCOTT’s adjustable headset, allowing riders to modify the head angle by 0.6 degrees without the need for cable adjustments or brake bleeding.
The bike’s design features a Syncros cockpit and racing-inspired geometry, coupled with a sharp and distinctive look. This blend of form and function gives the Scale 940 an aggressive edge, making it a standout choice for competitive riding. SCOTT’s use of Finite Element Analysis (FEA) software has optimized the carbon lay-up, resulting in a super-light frame that maintains both stiffness and durability. This meticulous virtual modeling ensures controlled flex in the seat-stays, seat-tube, and top-tube, enhancing comfort while preserving structural integrity.
With its top-tier components and refined frame design, the Scale 940 accelerates decisively with every pedal stroke. It’s engineered to perform under pressure, making it an ideal companion for those who aim to tip the scales in their favor against the clock. Embrace the thrill of competitive riding with a bike that offers exceptional value and performance. Elevate your riding experience with a bike that not only meets but exceeds your expectations, blending advanced technology with enduring craftsmanship.
KEY FEATURES
- Scale Carbon HMF Frame
- RockShox Judy 100mm Fork
- RideLoc 2 Remote
- SRAM NX-SX Eagle 12 Speed
- Shimano Disc Brakes
- Schwalbe Smart Sam Tires
| *Please note that bike specifications are subject to change without prior notice | |
| FRAME | Scale Carbon HMF / Adjustable head angle / Syncros Cable Integration System / Advanced Shock & Standing Damping System / BB92 / UDH Interface / 12x148mm with 55mm Chainline |
| FORK | RockShox Judy Silver TK Solo Air / 15x110mm QR axle / 42mm offset / Tapered Steerer / Reb. Adj. / Lockout / 100mm travel |
| REMOTE SYSTEM | SCOTT RideLoc 2 Remote |
| REAR DERAILLEUR | SRAM NX Eagle 12 Speed |
| SHIFTERS | SRAM SX Eagle Trigger |
| CRANKSET | SRAM SX Eagle DUB / 55mm CL / 32T |
| BB-SET | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| CHAIN | SRAM CN SX Eagle |
| CASSETTE | SRAM SX-PG1210 / 11-50 T |
| BRAKES | Shimano MT200 Disc Brake |
| ROTOR | Shimano SM-RT10 CL / 180/F and 160/R |
| HANDLEBAR | Syncros Alloy 6061 / T shape Flat / 9° / 740mm / Syncros Performance XC lock-on grips / H'STEMSyncros Alloy 6061 / oversized 31.8mm / 1 1/8" / 6° angle |
| SEATPOST | Syncros / 31.6x400mm |
| SEAT | Syncros Belcarra Regular 2.5 |
| HEADSET | Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment / ZS56/28.6 – ZS56/40 MTB |
| HUB (FRONT) | Formula CL-811 / 15x110mm |
| HUB (REAR) | Formula CL-3248 / 12x148mm |
| SPOKES | Stainless Black 15G / 1.8mm |
| RIMS | Syncros X-30SE / 32H / 30mm / Tubeless ready |
| FRONT TIRE | Schwalbe Smart Sam 29x2.35" / Active line |
| REAR TIRE | Schwalbe Smart Sam 29x2.35" / Active line |
| APPROX WEIGHTS IN KG | 12.7 (with tubes) |
| APPROX WEIGHTS IN LBS | 28 (with tubes) |
| MAX. SYSTEM WEIGHT | 128kg / The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
| S / 900 | M / 900 | L / 900 | XL / 900 | ||
| A | HEAD TUBE ANGLE (+0.6° HEADSET SETTING) | 67.9 ° | 67.9 ° | 67.9 ° | 67.9 ° |
| B | HEAD TUBE LENGTH | 90.0 MM | 95.0 MM | 110.0 MM | 120.0 MM |
| C | TOP TUBE HORIZONTAL | 575.0 MM | 600.2 MM | 626.0 MM | 656.5 MM |
| D | STANDOVER HEIGHT | 752.0 MM | 781.0 MM | 800.0 MM | 835.1 MM |
| E | BB OFFSET | -62.0 MM | -62.0 MM | -62.0 MM | -62.0 MM |
| F | BB HEIGHT | 313.0 MM | 313.0 MM | 313.0 MM | 313.0 MM |
| G | WHEEL BASE | 1,105.4 MM | 1,131.1 MM | 1,158.0 MM | 1,189.4 MM |
| I | BB CENTER TO TOP OF SEATTUBE | 390.0 MM | 440.0 MM | 480.0 MM | 530.0 MM |
| J | SEAT ANGLE | 75.4 ° | 75.4 ° | 75.3 ° | 75.3 ° |
| K | CHAINSTAY | 425.0 MM | 425.0 MM | 425.0 MM | 425.0 MM |
| L | REACH | 418.5 MM | 442.3 MM | 463.6 MM | 491.2 MM |
| M | STACK | 600.3 MM | 604.9 MM | 618.9 MM | 628.1 MM |
| N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM |
| 0 | TRAIL | 105.1 MM | 105.0 MM | 105.0 MM | 105.0 MM |
