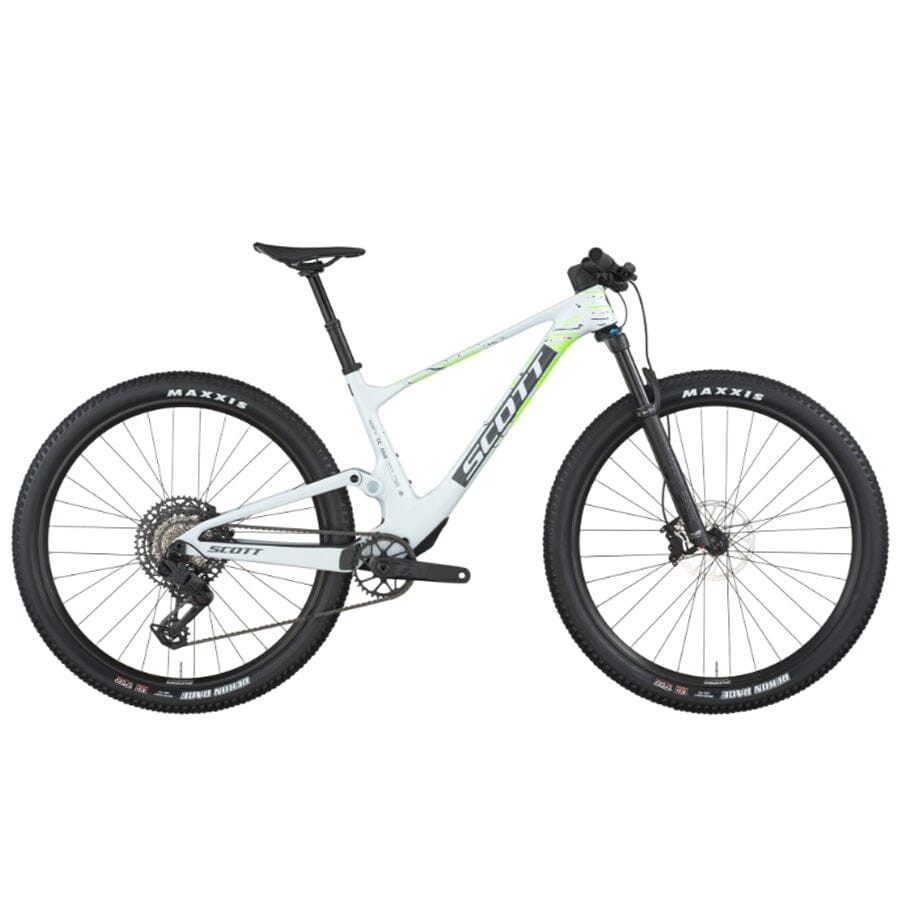

SCOTT Spark RC Comp
Product Details
The SCOTT Spark RC Comp represents the perfect blend of top-notch carbon engineering, unprecedented integration, and just the right amount of secret sauce. SCOTT set out to make this platform faster than ever before both up and down the hill, and the result is extraordinary. By increasing travel, perfecting geometry, and applying direct input from the world's best athletes, SCOTT has created the cross country race bike of all cross country race bikes, a machine where fast equals fun on every ride.
Built with advanced Evo-Lap carbon technology and intensive finite element analysis software, the Spark RC Carbon HMF frame optimizes carbon layers throughout to create a super-light, compact structure without sacrificing stiffness, comfort, or impact resistance. The patented integrated suspension system refines suspension characteristics through more rigid frame construction around the shock and trunnion mount, larger seat tube pivot bearings, and lower shock placement that reduces center of gravity for better handling and more stable, confidence-inspiring performance.
The proven single pivot suspension layout with flex pivot in the seat stay delivers specific, proven kinematics with reduced unsprung mass, the ideal solution for technical cross-country racing and fast, punchy singletrack. FOX 32 Float Rhythm Grip fork paired with the custom FOX Float LV EVOL Performance Trunnion shock provides dialed suspension performance with easy shock access via a bottom bracket hatch for adjusting rebound, compression, and pressure without hassle.
Perfect for racers and enthusiasts who believe fast is fun, the Spark RC Comp features adjustable head angle capability (±0.6 degrees without cutting cables or bleeding brakes) by simply rotating the headset cups 180 degrees. The reliable SRAM NX Eagle 12-speed drivetrain with Shimano Deore brakes and Syncros X-30SE wheelset complete the package, while the integrated rear axle tool with T25, T30, and 6mm allen key provides convenient on-trail adjustments for all pivot hardware.
Key Features
- Frame - SCOTT Spark RC Carbon HMF with Evo-Lap Technology
- Suspension - FOX 32 Float Rhythm Grip Fork with FOX Float LV Custom EVOL Performance Trunnion Shock
- Technology - Patented Integrated Suspension System with Adjustable Head Angle
- Drivetrain - SRAM NX Eagle 12-Speed with Shimano Deore Brakes
- Wheelset - Syncros X-30SE
| Specification | Detail |
|---|---|
| Frame | Spark RC Carbon HMF Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline |
| Fork | FOX 32 Float Rhythm Grip 3-Modes / Kabolt 15x110mm axle / 44mm offset / tapered steerer Reb. Adj. / Lockout / 120mm travel |
| Rear Shock | FOX Float LV Custom EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 120mm / T165X45mm |
| Remote System | SCOTT TwinLoc Technology 3 Suspension modes |
| Rear Derailleur | SRAM NX Eagle 12 Speed |
| Shifters | SRAM NX Eagle Trigger |
| Crankset | SRAM NX Eagle DUB 55mm CL / 32T |
| Chainguide | SCOTT custom |
| BB-Set | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Chain | SRAM CN NX Eagle |
| Cassette | SRAM SX-PG1230 / 11-50 |
| Brakes | Shimano Deore M6100 Disc |
| Rotor | Shimano SM-RT64 / CL / 180/F and 160/R |
| Handlebar | Syncros Fraser 2.0 XC Alloy 6061 D.B. Flat Bar / 8° / 740mm Syncros Performance XC lock-on grips |
| H'stem | Syncros XC 2.0 Syncros Cable Integration System -12° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| Seatpost | Syncros Duncan 2.0 / 10mm offset 31.6x400mm |
| Seat | Syncros Belcarra Regular 2.0 CRMO rails |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Hub (Front) | Formula CL-811 / 15x110mm |
| Hub (Rear) | Formula CL-148S / 12x148mm Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools |
| Spokes | Stainless Black 15G / 1.8mm |
| Rims | Syncros X-30SE / 32H / 30mm Tubeless ready |
| Front Tire | Maxxis Rekon Race / 29x2.4" / 60TPI Foldable Bead Tubeless Ready / EXO |
| Rear Tire | Maxxis Rekon Race / 29x2.4" / 60TPI Foldable Bead Tubeless Ready / EXO |
| Approx weight in KG | 12.6 (Tubeless setup) |
| Approx weight in LBS | 27.78 (Tubeless setup) |
| Max. System Weight | 128kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle (°) | 67.2 | 67.2 | 67.2 | 67.2 |
| Head Tube Length (mm) | 90 | 90 | 105 | 115 |
| Top Tube (Horizontal) (mm) | 562 | 590 | 614 | 642 |
| Standover Height (mm) | 758 | 765 | 776 | 799 |
| BB Offset (mm) | -45 | -45 | -45 | -45 |
| BB Height (mm) | 330 | 330 | 330 | 330 |
| Wheelbase (mm) | 1129 | 1159 | 1190 | 1231 |
| BB Center to Toptube Center | – | – | – | – |
| BB Center to Top of Seattube (mm) | 415 | 440 | 490 | 540 |
| Seat Tube Angle (°) | 75.9 | 76.1 | 76.6 | 76.9 |
| Chainstay Length (mm) | 437.5 | 437.5 | 437.5 | 437.5 |
| Reach (mm) | 411 | 441 | 471 | 501 |
| Stack (mm) | 602.5 | 602.5 | 616 | 625 |
| Stem Length (mm) | 50 | 60 | 70 | 80 |
| Trail (mm) | 115 | 115 | 115 | 115 |
| Fork Length (mm) | 530 | 530 | 530 | 530 |
| Maximum Seatpost Insertion (mm) | 150 | 175 | 225 | 275 |
| Crank Length (mm) | 170 | 170 | 175 | 175 |
