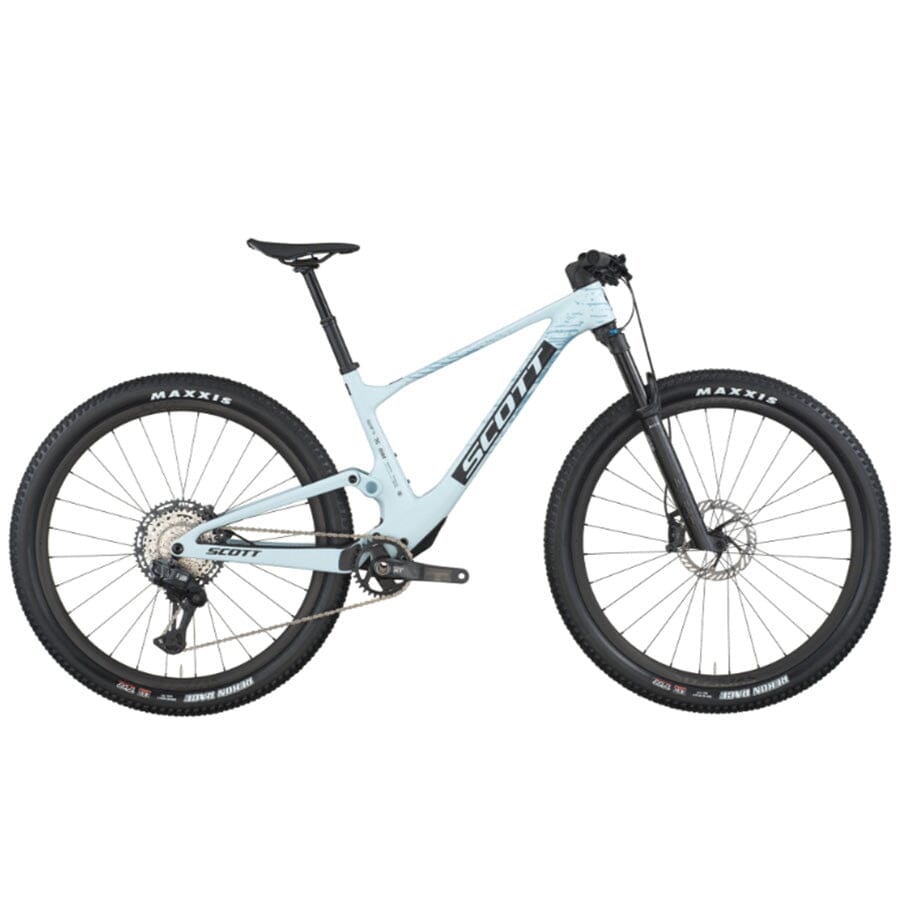

SCOTT Spark RC Pro
Product Details
The SCOTT Spark RC Pro is a high-performance cross-country race bike engineered for riders who demand speed, precision, and efficiency on every trail. Built around the Spark RC Carbon HMF frame, it combines lightweight stiffness with race-proven geometry to deliver responsive handling, explosive power transfer, and confidence-inspiring control across technical climbs, punchy descents, and fast singletrack.
SCOTT’s Evo-Lap technology ensures the frame is optimized at every layer, using advanced carbon fibers and finite element analysis to map stress and refine the carbon layup. The result is a super-light, compact frame that delivers stiffness, comfort, and impact resistance where it counts. An adjustable head angle allows riders to dial in handling preferences without cutting cables, while the patented integrated suspension platform ensures efficient power transfer and a lower center of gravity for stable, predictable performance. Easy shock access and a thoughtfully designed single-pivot suspension layout allow the FOX Nude 6 EVOL rear shock and FOX 34 SL Float Performance Elite 120mm fork to perform optimally in all conditions.
Shifting and braking are seamless thanks to the Shimano XT Di2 12-speed wireless drivetrain and Shimano XT 4-piston hydraulic disc brakes, while DT Swiss XRC 1501 wheels paired with Maxxis Rekon Race foldable tires provide low rotational weight, traction, and durability across XC terrain. Ergonomic Syncros cockpit components complete the setup, offering lightweight precision and control on every trail.
Designed with input from elite athletes, the Spark RC Pro is the ultimate XC race machine—fast, agile, and uncompromising in performance.
Key Features
- Frame – Spark RC Carbon HMF Frame: Lightweight, stiff, and optimized for XC race performance
- Suspension – FOX 34SL Float Performance Elite 120mm Fork & FOX Nude 6 EVOL TwinLoc 120mm Shock
- Drivetrain – Shimano XT Di2 12-Speed Drivetrain: Wireless, high-precision shifting
- Wheelset – DT Swiss XRC 1501 Wheelset with Maxxis Rekon Race Foldable Tires
| Specification | Detail |
|---|---|
| Frame | Spark RC Carbon HMF, Integrated Suspension Technology, Flex Pivot, Adjustable head angle, Syncros Cable Integration System, BB92, UDH Interface, 12x148mm with 55mm Chainline |
| Fork | FOX 34SL Float Performance Elite Air Grip SL, 3-Modes, Kabolt 15x110mm Axle, 44mm offset, tapered steerer, Rebound Adjust, Lockout, 120mm travel |
| Rear Shock | FOX NUDE 6 EVOL Trunnion, SCOTT custom w. travel & geo adjustment, 3 modes: Lockout-Traction Control-Descend, Low Speed Adjust, Rebound Adjust, Bearing Hardware, Travel 120-80-Lockout, T165X45mm |
| Remote System | SCOTT TwinLoc Technology, Suspension & Dropper Remote, 3 Suspension modes |
| Rear Derailleur | Shimano XT Di2 RD-M8250 SGS, 12 Speed, Wireless Electronic Shift System |
| Shifters | Shimano XT Di2 SW-M8250-IR, I-Spec EV clamp |
| Crankset | Shimano XT FC-M8200-1, Hollowtech II, 55mm CL, 34T |
| Chainguide | SCOTT custom |
| Bottom Bracket | Shimano XT BB-7141, shell 41x92mm |
| Chain | Shimano XT CN-M8100 |
| Cassette | Shimano XT CS-M8200-12, 10-51T |
| Brakes | Shimano XT M8220 4-Piston Disc |
| Rotors | Shimano RT-CL700, 180mm front / 160mm rear |
| Handlebar | Syncros Fraser iC SL XC Carbon, -12° rise, back sweep 8°, 740mm, Syncros Performance XC lock-on grips |
| Seatpost | Syncros Duncan Dropper 1.5XC, 31.6mm, all sizes 100mm |
| Seat | Syncros Belcarra V2.0 Cut Out, CRMO rails |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Wheelset | DT Swiss XRC 1501 CL, F: 15x110mm, R: 12x148mm Boost, 30mm Tubeless ready Carbon Rim, 28H, MS Driver |
| Front Tire | Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Rear Tire | Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Extras | Shimano Di2 Powerpack, Tire Sealant, Transport Axle |
| Approx. Weight | 11.6kg / 25.57 lbs (Tubeless setup) |
| Max System Weight | 130kg (includes bike, rider, equipment, and additional luggage) |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle | 67.2° | 67.2° | 67.2° | 67.2° |
| Head Tube Length (mm) | 90.0 | 90.0 | 105.0 | 115.0 |
| Top Tube Horizontal (mm) | 562.0 | 590.0 | 614.0 | 642.0 |
| Standover Height (mm) | 758.0 | 765.0 | 776.0 | 799.0 |
| BB Offset (mm) | -45.0 | -45.0 | -45.0 | -45.0 |
| BB Height (mm) | 330.0 | 330.0 | 330.0 | 330.0 |
| Wheelbase (mm) | 1,129.0 | 1,159.0 | 1,190.0 | 1,231.0 |
| BB Center to Top of Seat Tube (mm) | 415.0 | 440.0 | 490.0 | 540.0 |
| Seat Angle | 75.9° | 76.1° | 76.6° | 76.9° |
| Chainstay (mm) | 437.5 | 437.5 | 437.5 | 437.5 |
| Reach (mm) | 411.0 | 441.0 | 471.0 | 501.0 |
| Stack (mm) | 602.5 | 602.5 | 616.0 | 625.0 |
| Stem Length (mm) | 50.0 | 60.0 | 70.0 | 80.0 |
| Trail (mm) | 115.0 | 115.0 | 115.0 | 115.0 |
| Fork Length (mm) | 530.0 | 530.0 | 530.0 | 530.0 |
| Maximum Seatpost Insertion (mm) | 150.0 | 175.0 | 225.0 | 275.0 |
| Crank Length (mm) | 170.0 | 170.0 | 175.0 | 175.0 |
