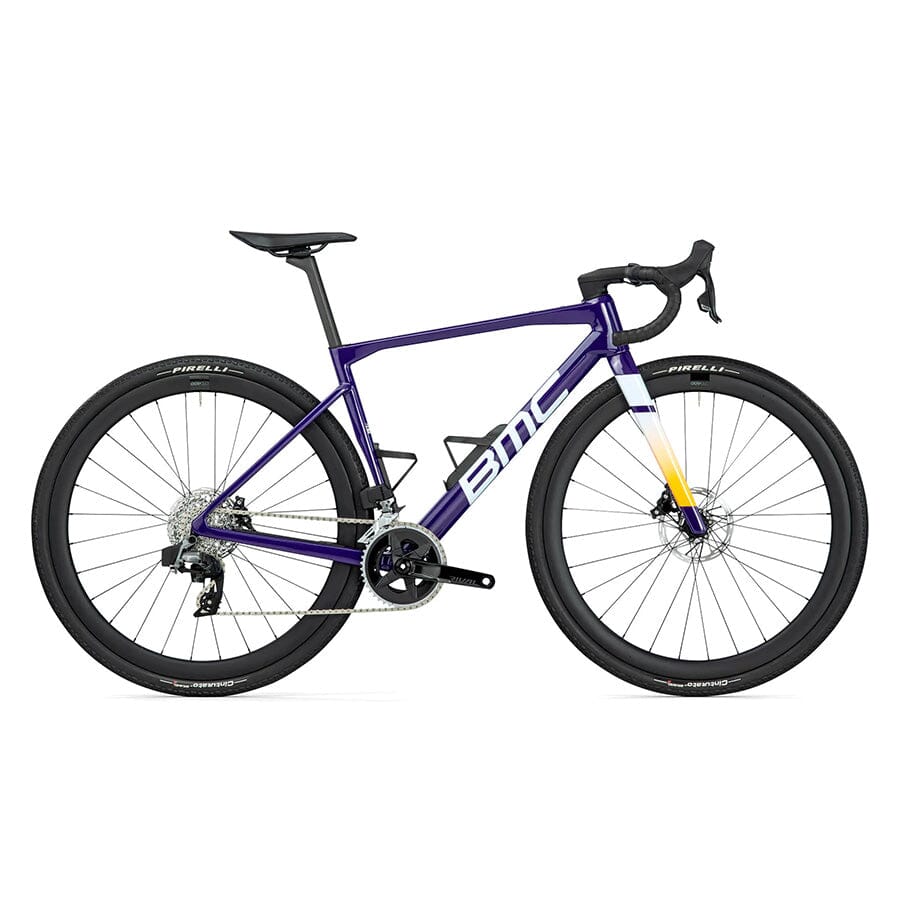

BMC Kaius 01 THREE

$4,799.00
$5,999.00 $4,799.00

Contact us for current price.
EARN UP TO A $400 GIFT CARD! LEARN MORE!

Color
Size Guide (Opens in a new tab)
contact us
Your satisfaction is our top priority.

Request Info

BMC Kaius 01 THREE

Online Enquiries

Phone: 801.364.0344

Locations

Product Details

Introducing Kaius, the epitome of premium carbon gravel bikes designed to elevate your racing experience across diverse terrains. Its groundbreaking carbon layup and gravel-specific geometry strike the ideal balance between stiffness, lightweight design, and compliance, ensuring exceptional traction on loose surfaces, stability in the front-end, and unparalleled climbing capabilities.

Engineered with precision and performance inspired by BMC's acclaimed road technologies, Kaius stands as a race-ready machine for the gravel enthusiast. Equipped with the Kaius fork, ICS2 stem, conventional bar, TCC Race compliance, and compatibility with 1x and 2x drivetrains, Kaius offers a versatile racing companion with up to 44 mm of tire clearance.

*Please note that bike specifications are subject to change without prior notice
Frame: Kaius 01 Premium Carbon with Aerocore Design | ICS Technology, Stealth Cable Routing | Integrated Aerocore Bottle Cages | Stealth Dropout Design | TCC Race Compliance Level | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle
Fork: Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle
Handlebar: BMC RAB 03 | Ergo Top Shape | Compact Bend
Stem: BMC ICS2 - Integrated Cockpit Design
Seatpost: Kaius 01 Premium Carbon D-Shaped Seatpost - 15mm Offset - D-Fender Compatible
Saddle: Fizik Vento Argo R5 - 140mm
Gears: 2x12
Crankset: SRAM Rival DUB WIDE 43-30T
Cassette: SRAM Rival AXS XG-1250 10-36T
Chain: SRAM Rival 12 Speed
Front Derailleur: SRAM Rival eTap AXS WIDE
Rear Derailleur: SRAM Rival eTap AXS WIDE
Shifters: SRAM Rival eTap AXS HRD
Brake Levers / Calipers: SRAM Rival eTap AXS HRD
Rotors: SRAM Paceline 160 / 160 mm - Centerlock
Rims: CRD-400 Carbon, Tubeless Ready, 40mm
Hubs (F/R): CRD-400
Tires: Pirelli Cinturato Gravel H, 40mm
Tubeless Information: Tubeless Ready Rims / Tubeless Tires
Tire Clearance: 44mm (Measured Width)
ASTM Classification: Level 2
Weight Limit: 120 Kg
Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 390 397 401 405 410 414
Stack 510 530 550 570 595 620
Bar Drop 77 117 117 117 117 117
Bar Reach 77 77 77 77 77 77
Bar Width 400 420 420 420 420 440
BB Drop 80 80 80 80 80 80
Crank Length 170 170 172.5 172.5 175 175
Fork Length 387 387 387 387 387 387
Fork Rake 50 50 45 45 45 45
Front Center 596 610 608 619 632 644
Head Tube 85 106 123 144 170 196
Head Tube Angle 71 71 72 72 72 72
Rear Center 420 420 420 420 420 420
Seat Angle 73 73 73 73 73 73
Seat Tube 428 452 468 493 513 533
Seatpost Length 282 322 362 362 402 402
Seatpost Offset 15 15 15 15 15 15
Standover Height 684 722 756 780 798 818
Stem Angle 12.5 12.5 12.5 12.5 12.5 12.5
Stem Length 90 100 100 110 110 120
Top Tube 546 559 569 579 592 604
Trail 66 66 68 68 68 68
Wheelbase 1003 1017 1015 1026 1039 1051
