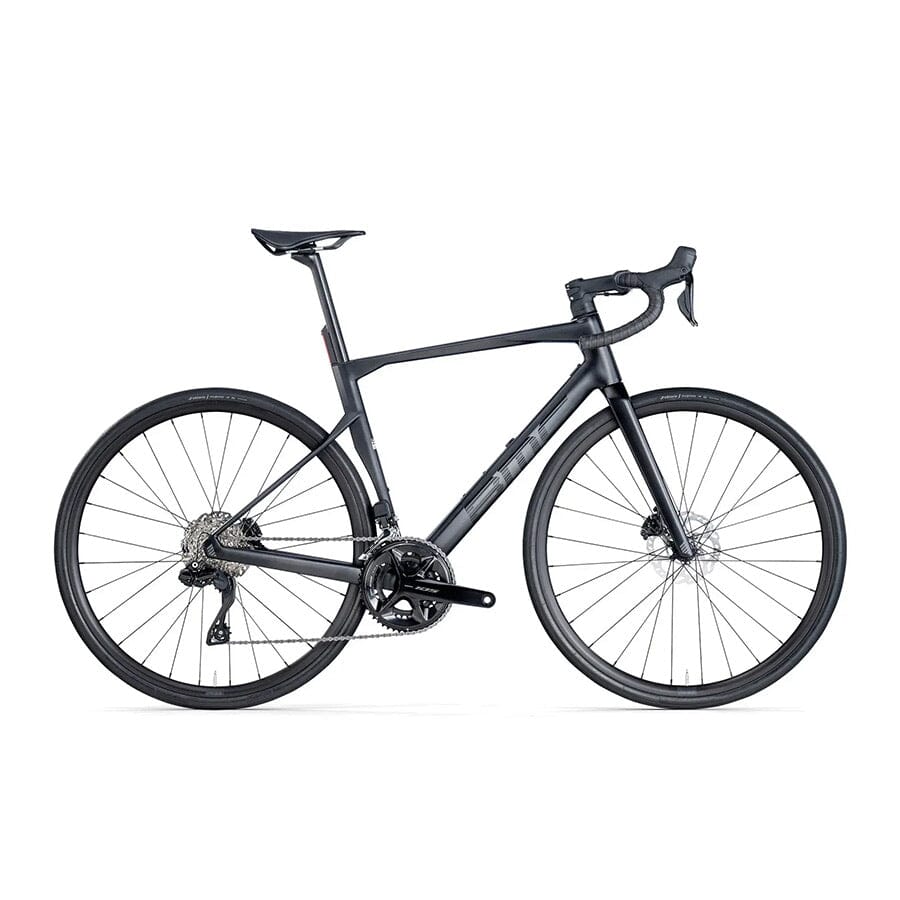

BMC Roadmachine TWO
Product Details
The BMC Roadmachine TWO represents the ultimate endurance bike for riders who want to go the distance without being confined to a single surface. Building on BMC's expertise and legacy of endurance excellence, this platform combines comfort and efficiency into a highly versatile performance road bike that delivers an outstanding riding experience across a wide range of terrain and conditions. No road, no distance is out of reach.
Built with lightweight carbon construction and BMC's advanced Tuned Compliance Concept (TCC) Endurance technology, the Roadmachine features big wheel capabilities, a dropped bottom bracket, adapted head tube angle, increased stack, and one of the industry's smallest rear centers for responsive handling. This geometry creates the perfect balance for extended rides, absorbing road imperfections while maintaining the efficiency needed for pushing pace when terrain or conditions demand it.
Practical innovation defines the Roadmachine experience through thoughtful integration at every touchpoint. The optimized downtube incorporates internal storage with a purpose-designed water-repellent pouch for on-ride essentials, neatly sealed under drag-reducing bottle cages. The integrated RSM01 stem provides user-friendly stack adjustability for creating the perfect position, combining incredibly low weight with high stiffness and stealth cable routing. An ultra-compact integrated rear light offers USB-rechargeable visibility that easily attaches and detaches from the seatpost for changing conditions.
Built for riders seeking endurance capability without sacrificing performance, the Roadmachine TWO features a full Shimano 105 Di2 groupset delivering smooth electronic shifting and powerful braking. The integrated RSM01 stem and Endurance Alloy handlebar provide exceptional ergonomics, offering the perfect balance of control and comfort. Wide, fast-rolling tires ensure a smooth ride across various road surfaces, making this the complete package for ambitious road adventures.
Key Features
- Frame - Roadmachine Carbon with Tuned Compliance Concept Endurance Technology
- Drivetrain - Shimano 105 Di2 2x12 Electronic
- Wheelset - PRD23 23mm wheels
| Category | Specification |
|---|---|
| Frame | Roadmachine Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle |
| Fork | Roadmachine Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset (Size 47-51) | 45mm offset (Size 54-61) |
| Cockpit - Stem | BMC RSM 01 | Integrated Cockpit System Technology |
| Cockpit - Handlebar | BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare |
| Seatpost | Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible |
| Saddle | Selle Italia Model X Superflow | FeC Alloy Rail | 145mm |
| Crankset | SHIMANO 105 (FC-R7100) |
| Chainrings | 50-34T |
| Cassette | SHIMANO (CS-HG710), 11-36T |
| Chain | SHIMANO CN-M6100 |
| Front Derailleur | SHIMANO 105 Di2 (FD-R7150) |
| Rear Derailleur | SHIMANO 105 Di2 (RD-R7150) |
| Shifters | SHIMANO 105 Di2 (ST-R7170) |
| Gears | 2 x 12 |
| Bottom Bracket | SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB) |
| Brake Levers / Calipers | SHIMANO 105 (BR-R7170) |
| Brake Rotors | SHIMANO SM-RT70 | Centerlock [or] SHIMANO RT-CL700, 160 / 160mm (F/R) |
| Rims | PRD23 | 23mm internal width |
| Hubs (F/R) | SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock | 28H |
| Tires | Vittoria Rubino V | Tube type | 32mm |
| Tubeless Information | Non-Tubeless Rims | Non-Tubeless Clincher Tire |
| Accessories In The Box | Integrated Rear Light 25 | Storage Pouch |
| Tire Clearance | Up to 40mm frameset clearance, limited to 34mm by front derailleur |
| Weight without Pedals | 8.99kg | Size 54 (with all accessories) |
| ASTM Classification | Level 2 |
| System Weight Limit | 110kg |
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <160 | 158-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width (mm) | 390/438 | 390/438 | 390/438 | 410/458 | 410/458 | 430/478 |
| BB Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length (mm) | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork Rake (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Head Tube (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle | 71.4° | 71.4° | 72.2° | 72.2° | 72.2° | 72.2° |
| Rear Center (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| Seat Angle | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Seat Tube (mm) | 414 | 461 | 488 | 508 | 529 | 550 |
| Seatpost Length (mm) | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset (mm) | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height (mm) | 726 | 762 | 786 | 807 | 828 | 849 |
| Stem Angle | -8 | -8 | -8 | -8 | -8 | -8 |
| Stem Length (mm) | 90 | 90 | 100 | 100 | 110 | 110 |
| Top Tube (mm) | 520 | 537 | 546 | 559 | 571 | 581 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
