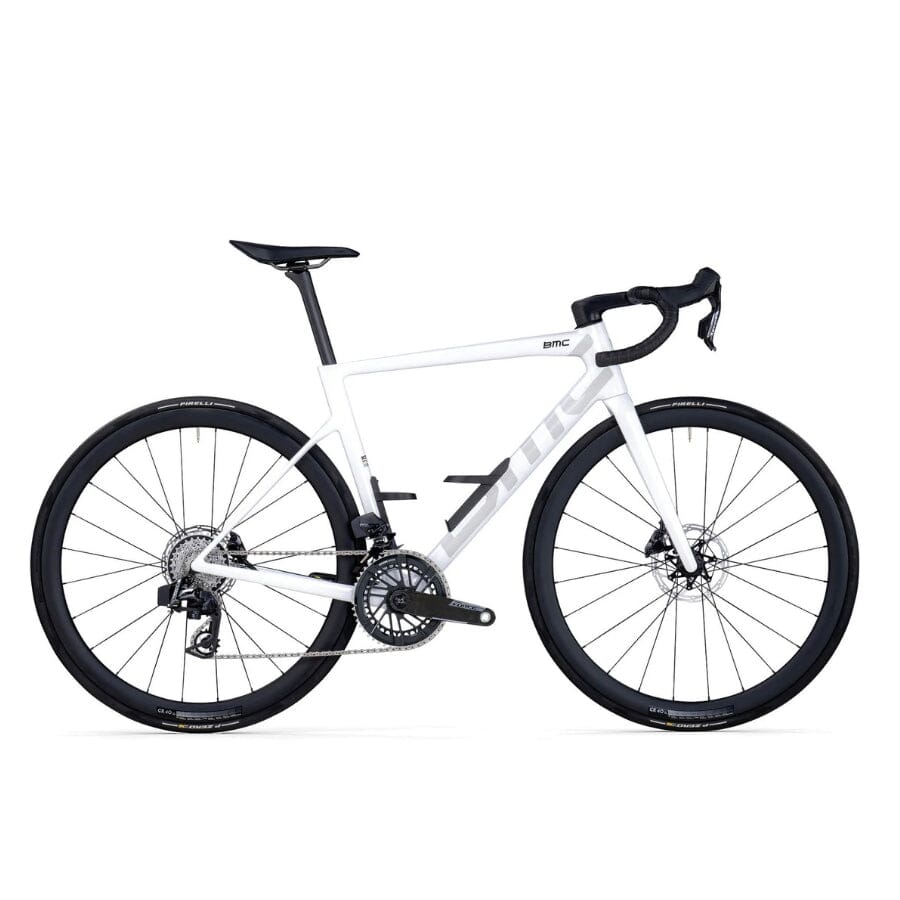

BMC Teammachine SLR 01 THREE
Product Details
Light, stiff, and fast, the BMC Teammachine SLR 01 THREE pairs BMC’s premium 01 carbon frameset with SRAM Force AXS, a power meter, ICS EVO cockpit, and CRD 40 SL carbon wheels for a modern, high-performance build.
The fifth-generation BMC Teammachine SLR 01 takes everything that made this platform legendary and pushes it further. Designed specifically for mountain stages and high-elevation racing, this all-new frame blends low weight, aerodynamic shaping, and race-tuned handling into one complete package.
Now 16% lighter than the previous version, the updated frame saves 222 grams through optimized carbon layup, reduced paint mass, and streamlined tube profiles—all without compromising stiffness. That means explosive acceleration, responsive handling, and efficient power transfer when it matters most.
Inspired by the aero-focused Teammachine R 01, the new SLR 01 incorporates a refined fork, slimmer seatpost, and reduced frontal area to improve aerodynamic efficiency. Clearance for 32mm measured tires adds versatility for today’s varied race conditions and surfaces.
BMC’s Tuned Compliance Concept (TCC) and the updated Aero Shape seatpost deliver a balanced ride feel by absorbing road vibrations without dulling responsiveness. Combined with proven geometry, this frameset handles with precision whether climbing steep switchbacks or descending at speed.
Full integration through the ICS cockpit and internal cable routing keeps the bike looking clean and performing at the highest level. The result is a bike that feels like a natural extension of the rider and is built to perform on any race course.
Highlights:
- Lighter Than Ever: Redesigned frame saves 222g while maintaining class-leading stiffness
- Aero-Enhanced Frame: Refined fork, tube profiles, and seatpost for better airflow and speed
- Modern Tire Clearance: Fits up to 32mm measured tires for added comfort and versatility
- Integrated Cockpit System: ICS EVO bar and stem setup with hidden cables and a race-focused finish
Key Features:
- Frame: Teammachine SLR 01 Premium Carbon with Aerocore Design
- Drivetrain: SRAM Force AXS 2x12 with integrated power meter
- Wheels: CRD 40 SL Carbon Wheelset
- Cockpit: ICS Carbon EVO – One-piece full carbon handlebar and stem
| Specification | Detail |
|---|---|
| Frame | Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Fork | Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61 |
| Handlebar | ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare |
| Seatpost | Teammachine SLR 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset |
| Saddle | Fizik Argo Vento R3 | 140mm |
| Crankset | SRAM Force AXS (FC-FRC-P-E1) |
| Chainrings | 48-35T |
| Power Meter | SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1) |
| Cassette | SRAM Force (CS-XG-1270-E1) |
| Cassette Size | 10-33T |
| Chain | SRAM Force (CN-FRC-E1) |
| Front Derailleur | SRAM Force AXS (FD-FRC-E-E1) |
| Rear Derailleur | SRAM Force AXS (RD-FRC-E-E1) |
| Shifters | SRAM Force AXS (ED-FRC-E1) |
| Gears | 2 x 12 |
| Bottom Bracket | SRAM Press Fit DUB |
| Brake Levers / Calipers | SRAM Force AXS (ED-FRC-E1) |
| Rotors | SRAM Centerline X | Centerlock |
| Rotor Size (F/R) | 160 / 160mm |
| Rims | CR 40 SL Carbon | Tubeless Ready | 40mm |
| Hubs (F/R) | TXC-812 & TXC-240 Centerlock |
| Tires | Pirelli P Zero Race TLR | 26mm |
| Tubeless Information | Tubeless Rim | Tubeless Tires |
| In the Box | Aerocore Bottle Cages |
| Tire Clearance | 32mm |
| Weight without Pedals | 7.1kg | Size 54 with all accessories |
| ASTM Classification | Level 1 |
| System Weight Limit | 110kg |
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <166 | 166–174 | 172–180 | 178–186 | 184–192 | >190 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Seat Tube | 422 | 464 | 491 | 509 | 530 | 555 |
| Top Tube | 515 | 532 | 552 | 562 | 582 | 598 |
| Head Tube | 108 | 133 | 149 | 165 | 184 | 211 |
| Seat Angle ° | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Head Angle ° | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.30° |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
| BB Drop (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork Length | 369 | 369 | 369 | 369 | 369 | 369 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Standover Height | 717 | 752 | 779 | 797 | 817 | SaRI |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 10 | 10 | 10 | 10 | 10 | 10 |
| Seatpost Max Insertion | 130 | 170 | 200 | 220 | 235 | 250 |
