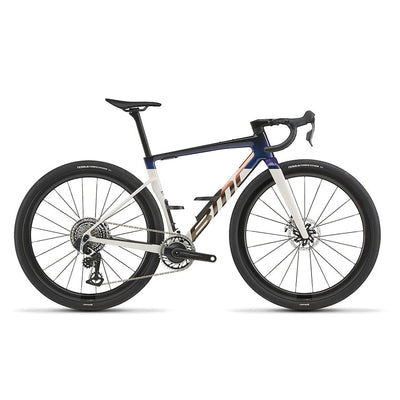

BMC Kaius 01 ONE
Product Details
The BMC Kaius 01 ONE is designed for riders who want to go the distance and refuse to be confined to just one surface. Built on BMC's expertise and legacy of endurance excellence, this all-road machine combines comfort and efficiency into a highly versatile performance bike that delivers an outstanding riding experience across any terrain. Crafted with BMC carbon frame expertise and featuring full integration, the Kaius represents the perfect balance of endurance and speed, it's your road, your way.
Engineered at the BMC Impec Lab using expert understanding of composite layup, the Kaius 01 achieves a sub-1kg frameset (size 54) with supreme, data-proven compliance and torsional stiffness for a bike that's not only comfortable but also remarkably fast. The third-generation platform focuses on all-road capabilities, calibrated to use road-smoothing 32–35mm tires while maintaining clearance for gravel-ready 40mm tires. The geometry has been evolved to maintain the essence of endurance: a short rear center, precise BB placement, and responsive front end for swift performance, while the dropped BB, revised head tube angle, and increased stack deliver one of the industry's smallest rear centers for an agile, responsive ride.
Key Features
- Frame - BMC Kaius 01 Gen 2 Premium Carbon with AeroCore Design and TCC Race Compliance
- Drivetrain - SRAM Red AXS Wireless Electronic with SRAM Red XPLR AXS Power Meter
- Wheelset - CG 39 SL Carbon with CG 39 SL Hubs
| Specification | Detail |
|---|---|
| Frame | Kaius 01 Gen 2 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Fork | Kaius 01 Gen 2 | 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Handlebar | ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare |
| Grips | BMC Tacky 3mm |
| Seatpost | Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61 |
| Saddle | Fizik Vento Argo X1 Carbon | 140mm |
| Crankset | SRAM Red XPLR AXS Wide (FC-RED-1WP-E1) |
| Chainrings | 42T |
| Power Meter | SRAM Red XPLR AXS Power Meter (FC-RED-1WP-E1) |
| Cassette | SRAM Red XPLR (CS-XG-1391-E1) |
| Cassette Size | 10-46T |
| Chain | SRAM RED (CN-RED-E1) |
| Rear Derailleur | SRAM Red XPLR AXS (RD-RED-1E-E1) |
| Shifters | SRAM Red AXS (ED-RED-E1) |
| Gears | 1 x 13 |
| Bottom Bracket | SRAM DUB T47 85.5 Road Wide Bottom Bracket (BB-DUB-T47-A1) |
| Brake Levers / Calipers | SRAM Red AXS (ED-RED-E1) |
| Rotors | SRAM Paceline X Rotor (RT-PLN-X-A1) |
| Rotor Size (F/R) | 160 / 160mm |
| Rims | CG 39 SL Carbon | Tubeless Ready | 39mm |
| Hubs (F/R) | CG 39 SL for Carbon Spokes | Star Ratchet Freehub | Center Lock |
| Tires | Continental Terra Competition Race Rapid | Tubeless | 45mm |
| Tubeless Information | Tubeless Rim | Tubeless Tires |
| In the Box | Aerocore Bottle Cages | Computer mount for Garmin, Wahoo and GoPro mount |
| Tire Clearance | 52mm measured tire |
| Weight without Pedals | 7.1kg | Size 54 as pictured with all accessories |
| ASTM Classification | Level 2 |
| System Weight Limit | 120kg |
| Measurement | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166–174 | 172–180 | 178–186 | 184–192 | >190 |
| Reach (mm) | 385 | 392 | 396 | 400 | 405 | 409 |
| Stack (mm) | 521 | 541 | 561 | 581 | 606 | 631 |
| Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width (mm) | 390 / 438 | 390 / 438 | 390 / 438 | 410 / 458 | 410 / 458 | 430 / 478 |
| BB Drop (mm) | 79 | 79 | 79 | 79 | 79 | 79 |
| Crank Length (mm) | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
| Fork Length (mm) | 397 | 397 | 397 | 397 | 397 | 397 |
| Fork Rake (mm) | 50 | 50 | 50 | 45 | 45 | 45 |
| Front Center (mm) | 597 | 611 | 614 | 619 | 633 | 645 |
| Head Tube Length (mm) | 88 | 109 | 126 | 147 | 173 | 199 |
| Head Tube Angle (°) | 70.8° | 70.8° | 70.8° | 71.6° | 71.6° | 71.6° |
| Rear Center (mm) | 425 | 425 | 425 | 425 | 425 | 425 |
| Seat Angle (°) | 74.3° | 74.3° | 73.8° | 73.8° | 73.8° | 73.8° |
| Seat Tube Length (mm) | 429 | 449 | 471 | 485 | 509 | 533 |
| Seatpost Length (mm) | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset (mm) | 0 | 0 | 10 | 10 | 10 | 10 |
| Standover Height (mm) | 739 | 758 | 779 | 795 | 815 | 838 |
| Stem Angle (°) | -8° | -8° | -8° | -8° | -8° | -8° |
| Stem Length (mm) | 80 | 90 | 90 | 100 | 100 | 110 |
| Top Tube Length (mm) | 531 | 544 | 559 | 569 | 587 | 598 |
| Trail (mm) | 72 | 72 | 72 | 72 | 72 | 72 |
| Wheelbase (mm) | 1010 | 1024 | 1027 | 1032 | 1045 | 1058 |
