Product Details

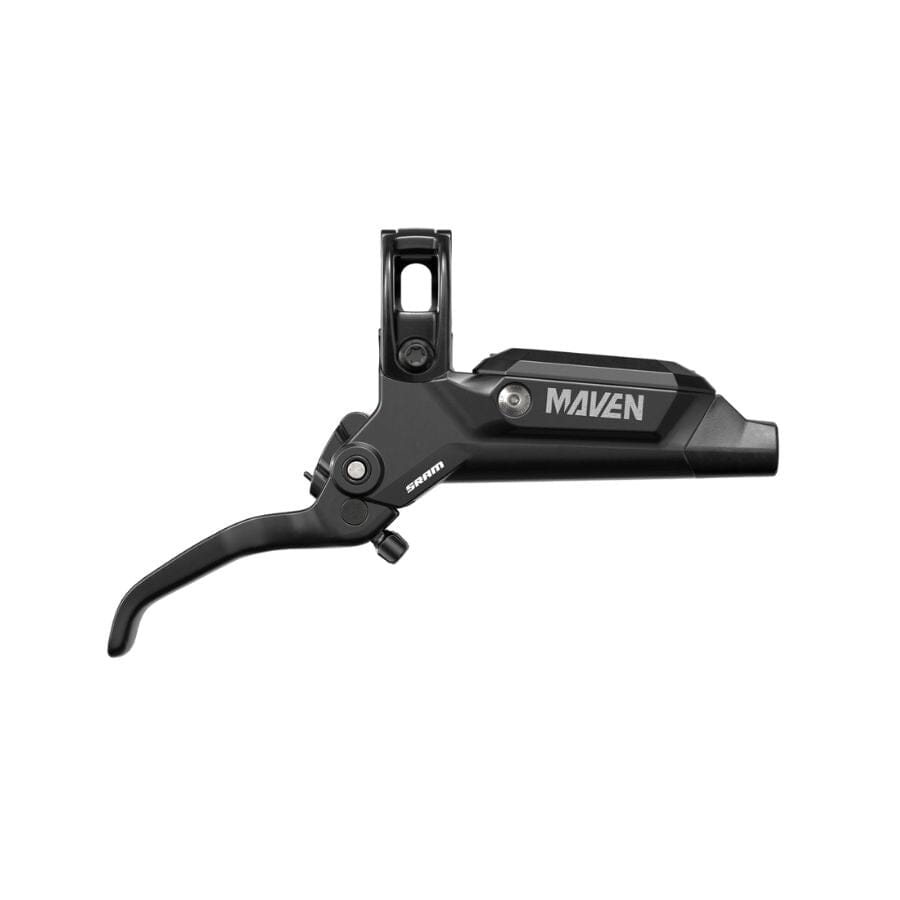

The SRAM Maven Base Disc Brake and Lever system delivers exceptional braking performance for modern mountain biking. Designed for both front and rear applications, this advanced system provides unmatched stopping power and control, ensuring confidence on even the most demanding terrain. The Maven Base lever features a durable aluminum body with Directlink technology, translating rider input into smooth, responsive braking. Paired with a stiff 4-bolt caliper, the system efficiently dissipates heat, maintaining consistent performance from start to finish. Riders can customize their braking experience with tool-free reach adjustment, fine-tuning the lever feel to personal preference.

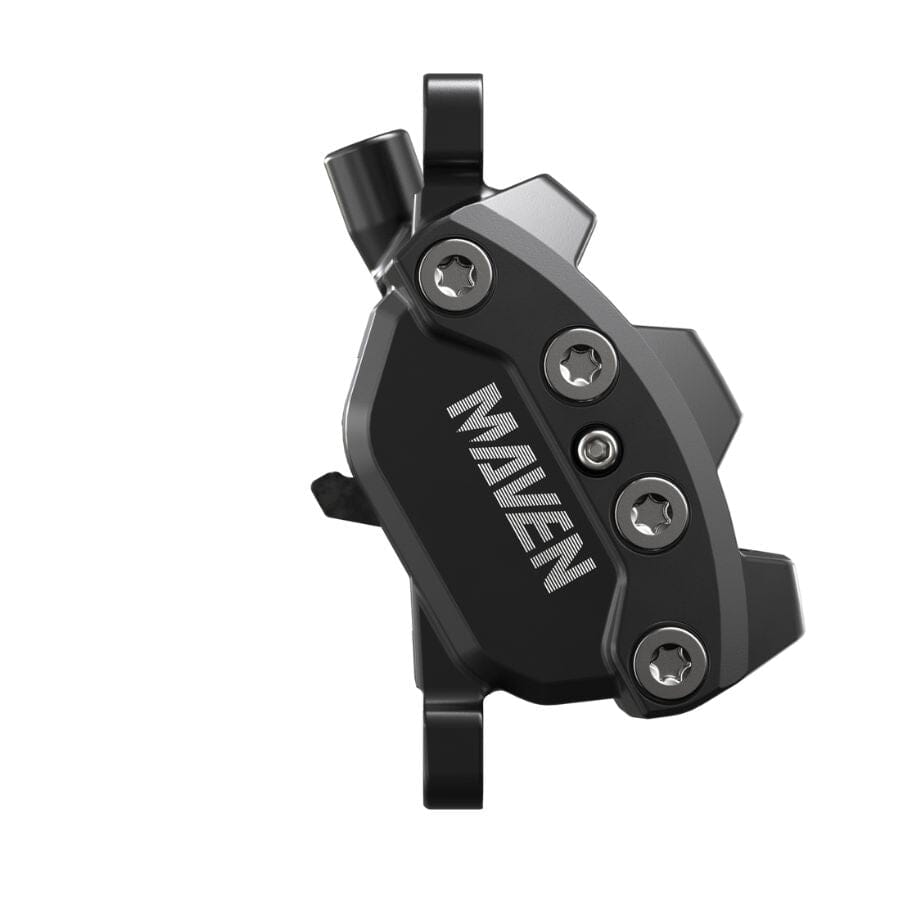

At the heart of the Maven Base Disc Brake is a 2-piece forged aluminum caliper, equipped with four 18mm pistons for extreme stopping power. The system includes organic brake pads for superior modulation and a quiet ride, while the sleek Stealth lever architecture enhances bike aesthetics. Designed for low-maintenance use with Maxima Mineral Brake Oil, the system also features a Bleeding Edge bleed port, ensuring hassle-free maintenance.
Key Features:
-
Extreme-Duty Braking Power – Four 18mm pistons for maximum control.
-
Customizable & Low-Maintenance Design – Tool-free reach adjust & mineral oil system.
-
Stealth Lever Architecture & Heat-Managed Caliper – Sleek aesthetics with reliable performance.
Brake Specifications
Specification | Details |
---|---|
Application (DB) | MTB |
Brake Type | Hydraulic |
Blade Material | Aluminum |
Contact Adjust | No |
Color (DB) | Diffusion Black Anodized |
Orientation | Front, Rear |
Pad Type (Disc) | Steel-backed organic |
Bracket (Disc Brake) | Direct mount DIR |
Reach Adjust | Tool-free |
Hydraulic Fluid | SRAM Mineral Oil |
Lever Pivot | Bushing |
Weight (g) | 381 |
Weight Based On | Rear, Stealth-a-majig, DIR, 1800mm, w/pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |
