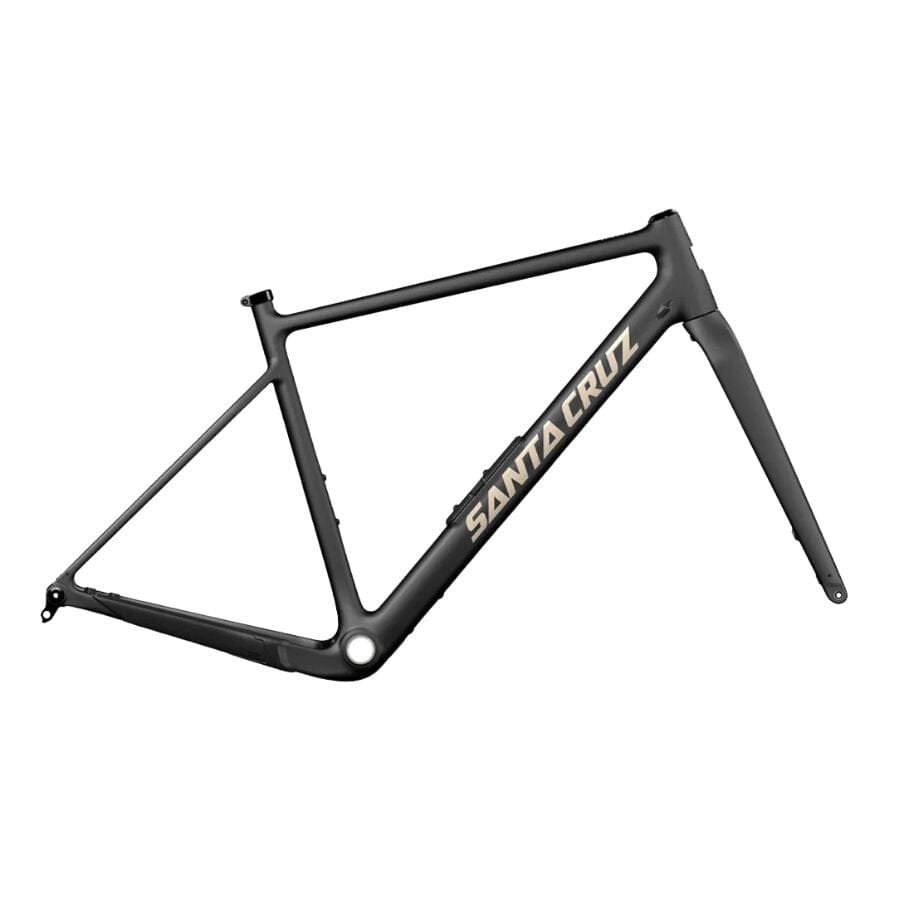

Santa Cruz Stigmata 4 CC Frameset
Product Details
The Santa Cruz Stigmata 4 CC Frameset is built for riders who refuse to choose between speed and adventure. This isn't just another gravel bike; it's a singletrack-slicing, race-winning machine that blurs the lines between road bike efficiency and mountain bike capability. Whether you're lining up for your biggest gravel race or disappearing into unmarked territory, the Stigmata delivers the performance to match your ambition.
The progressive geometry features a longer reach and slacker head angle that keeps you stable and confident when the terrain gets technical, while still being efficient enough to hang in fast race groups. Built from Santa Cruz's premium CC carbon, this frameset is lightweight without sacrificing the durability needed for serious off-road adventures. With generous tire clearance and even the option to add a 40mm gravel suspension fork, it adapts to whatever route you choose to explore.
Key Features
- Progressive Gravel Geometry – Long reach and slack head angle provide stability on technical terrain while maintaining race efficiency.
- Premium CC Carbon Construction – Lightweight, durable frame built with Santa Cruz’s highest grade carbon technology.
- Maximum Versatility – Generous tire clearance and optional 40mm suspension fork compatibility for all-terrain adaptability.
| Specification | Detail |
|---|---|
| Frame | Carbon CC Gravel |
| Weight | 4.12lbs / 1.87kg |
| Wheel Size | 700c |
| Bottom Bracket Shell | Threaded 68mm |
| Rear Brake Mount | 160mm FM |
| Fork Axle to Crown | 430mm |
| Fork Compatibility | 40mm |
| Fork Offset | 45mm |
| Front Derailleur Mount | Clamp On |
| Headset | Integrated (IS41/52) |
| Max Chainring Size | 42T (1x) | 50T (2x) |
| Max Tire Clearance | 50mm (1x) | 45mm (2x) |
| Rear Spacing | 142mm |
| Seat Clamp Diameter | 31.8mm |
| UDH Compatible | Yes |
| Water Bottle Mounts | 3 |
| Component | SRAM Rival AXS XPLR 13 Speed | SRAM Force AXS XPLR 13 Speed | SRAM RED AXS XPLR 13 Speed | SRAM Rival / GX AXS Transmission Mullet | SRAM Force / X0 AXS Transmission Mullet | SRAM RED / XX SL AXS Transmission Mullett | Shimano GRX / XTR Di2 1x12 |
|---|---|---|---|---|---|---|---|
| Levers/Calipers | SRAM Rival AXS E1 HRD Lever/Caliper | SRAM Force AXS E1 HRD Lever/Calipe | SRAM RED AXS E1 HRD Lever/Caliper | SRAM Rival AXS E1 HRD Lever/Caliper | SRAM Force AXS E1 HRD Lever/Calipe | SRAM RED AXS E1 HRD Lever/Caliper | Shimano ST-RX825 GRX Brake/Shift Lever + CALIPER |
| Crankset | SRAM Rival AXS DUB Wide Crankset | SRAM Force AXS DUB WIDE Crankset | SRAM RED AXS DUB WIDE Crankset | SRAM Rival AXS DUB Wide Crankset | SRAM Force AXS DUB WIDE Crankset | SRAM RED AXS DUB WIDE Crankset | Shimano GRX FC-RX820-1 Crankset |
| Rear Derailluer | SRAM Rival XPLR AXS 13 Speed Rear Derailleur | SRAM Force XPLR AXS 13 Speed Rear Derailleur | SRAM RED XPLR AXS 13 Speed Rear Derailleur | SRAM GX AXS Transmission Rear Derailleur | SRAM X0 AXS Transmission Rear Derailleur | SRAM XX SL AXS Transmission Rear Derailleur | Shimano XTR M-9250 Di2 Rear Derailleur |
| Chain | SRAM Rival Flattop Chain | SRAM Force Flattop Chain | SRAM RED Flattop Chain | SRAM GX Eagle Flattop Chain | SRAM X0 Eagle Flattop Chain | SRAM XX SL Eagle Flattop Chain | Shimano CN-M9100 Chain |
| Cassette | SRAM Rival XPLR XG-1351 10/46T Cassette | SRAM Force XPLR XG-1371 10/46T Cassette | SRAM RED XPLR XG-1391 10/46T Cassette | SRAM GX Eagle XS-1275 10/52T Cassette | SRAM X0 Eagle XS-1295 10/52T Cassette | SRAM XX SL Eagle XS-1299 10/52T Cassette | Shimano CS-M9200 XTR 10/51T or 9/45T Cassette |
| Rotors | SRAM Paceline Rotor | SRAM Paceline Rotor | SRAM Paceline X Rotor | SRAM Paceline Rotor | SRAM Paceline Rotor | SRAM Paceline X Rotor | Shimano RT-CL900 Rotor |
| Battery/Extras | Battery/Charger | Battery/Charger | Battery/Charger | Battery/Charger | Battery/Charger | Battery/Charger | Battery/Charger |
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Reach | 375 | 390 | 405 | 420 | 435 | 450 |
| Stack | 550 | 564 | 576 | 600 | 612 | 631 |
| Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Seat Tube Length | 450 | 455 | 485 | 515 | 545 | 575 |
| Front Center | 605 | 625 | 645 | 668 | 688 | 710 |
| BB Height | 278 | 278 | 280 | 280 | 282 | 282 |
| BB Drop | 78 | 78 | 76 | 76 | 74 | 74 |
| Wheelbase | 1023 | 1043 | 1063 | 1087 | 1108 | 1130 |
| Rear Center | 423 | 423 | 423 | 423 | 423 | 423 |
| Head Tube Length | 90 | 105 | 120 | 145 | 160 | 180 |
| Top Tube Length | 533 | 552 | 570 | 592 | 610 | 631 |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Standover Height | 723 | 728 | 753 | 778 | 804 | 830 |
