Mondraker Zendit RR
Request Info
Mondraker Zendit RR
Product Details

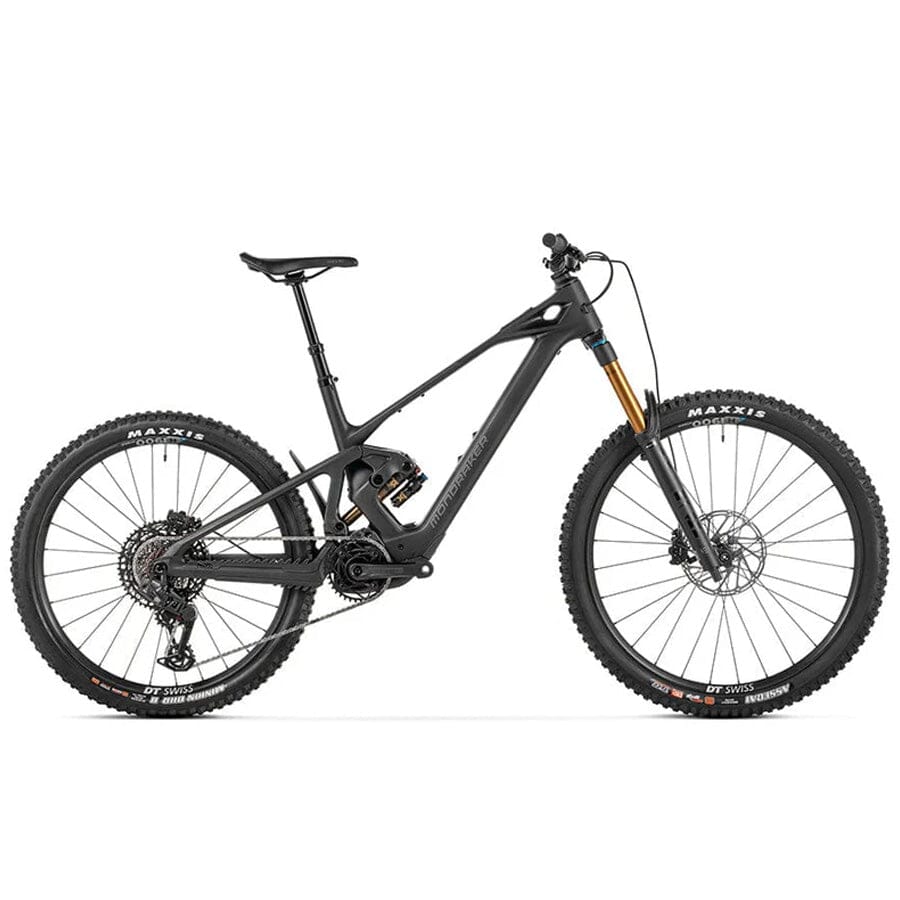

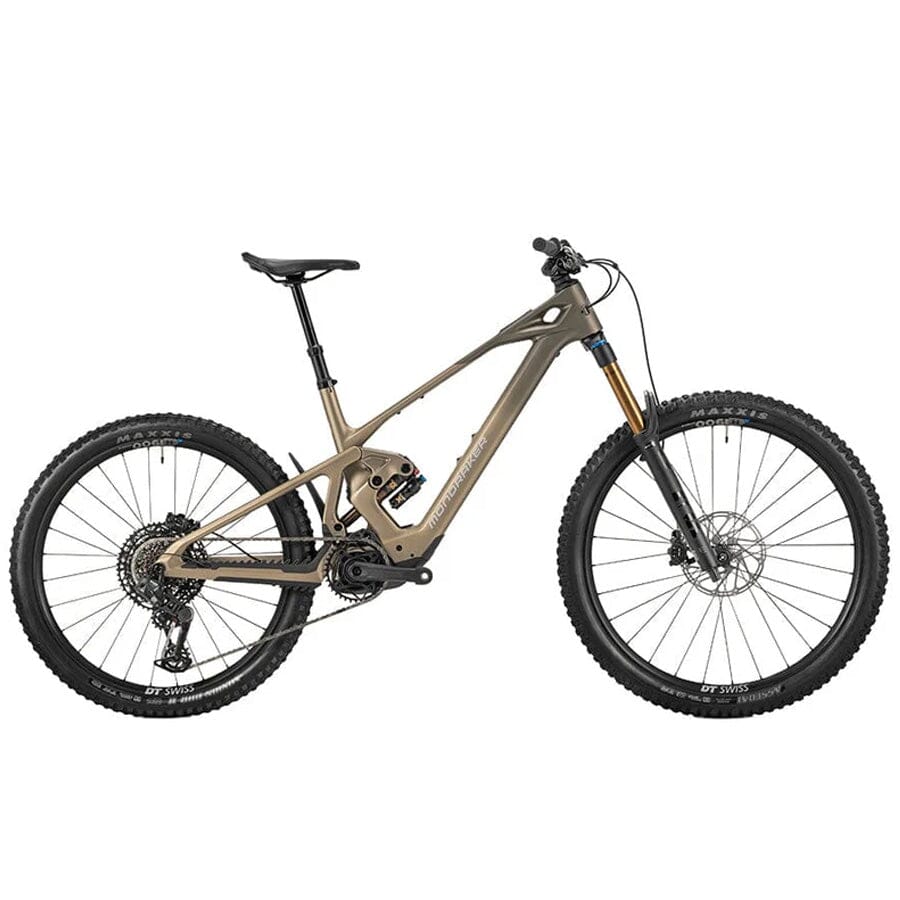

The Mondraker Zendit RR is a next-generation electric mountain bike built to redefine what’s possible on the trail. Designed from the ground up around the powerful Avinox M2S drive system, this long-travel machine delivers unmatched performance on the steepest climbs and most demanding descents. With 165mm of rear travel, 170mm up front, and Mondraker’s evolved ZERO suspension kinematics, the Zendit RR is engineered for aggressive riders who refuse to hold back.
At its core, the Stealth Air full carbon frame represents Mondraker’s most advanced construction to date, utilizing precision manufacturing and refined design to achieve exceptional stiffness, durability, and a remarkably low system weight. The updated ZERO suspension platform is tuned to handle the immense power of the Avinox system, offering increased support, improved traction, and efficient power transfer with optimized anti-squat and anti-rise characteristics.
Power comes from the Avinox M2S motor, delivering up to 130Nm of torque (150Nm in Boost mode) and 1300W peak output, paired with an integrated 800Wh battery for long, demanding rides. Intelligent multi-sensor technology ensures smooth, controlled assistance across varied terrain, while customizable ride modes adapt to everything from efficient cruising to full-power climbs.
A mixed wheel (MX) setup enhances agility and control, with the option to run full 29” wheels for added rolling efficiency. Adjustable geometry via flip-chip allows riders to fine-tune handling for different terrain and riding styles.
Built for riders who demand the ultimate in power, precision, and suspension performance, the Zendit RR is a true no-compromise electric mountain bike, ready to climb harder, descend faster, and push boundaries further than ever before.
Key Features
- Frame – Stealth Air Full Carbon Frame with ZERO Suspension Platform
- Motor – Avinox M2S Drive Unit (Up to 150Nm Boost / 1300W Peak)
- Battery – 800Wh Integrated Battery
- Suspension – FOX 38 Factory GRIP X2 170mm Fork & FOX Float X Factory EVOL LV Shock
- Drivetrain – SRAM S1000 Eagle AXS T-Type
- Wheelset – DT Swiss Hybrid H 1900 Spline
| Specification | Detail |
|---|---|
| Frame | Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Rear Shock | Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compression (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings. |
| Shock Settings | CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers |
| Fork | Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload. |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock. |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S:140-115mm, M:160-135mm, ML:180-155mm, L:210-185mm, XL:210-185mm |
| Saddle | Ergon SM10 E-Mountain Black |
| Front Brake | SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6-bolt rotor, steel-backed organic pads |
| Rear Brake | SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6-bolt rotor, steel-backed organic pads |
| Brake Lever | SRAM Maven Base, Directlink and lever pivot bushings, tool-free reach adjust |
| Rims | DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked/crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | DT Swiss Straightpull spokes, DT Hybrid I, black |
| Front Hub | DT Swiss 370, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra, DD protection, 120x2TPI, folding bead |
| Crankset | e*thirteen Helix Race e*spec alloy, 155mm all sizes |
| Rings | SRAM Eagle 36T T-Type, 104BCD, steel, CL55 |
| Chain | SRAM GX Eagle T-Type, 12s Flattop, w/Powerlock |
| Rear Derailleur | SRAM S1000 Eagle AXS, T-Type, 12s |
| Shift Levers | SRAM Eagle AXS Pod Controller w/discrete clamp, 12s |
| Casette | SRAM XS 1270, 10-52T, T-Type, 12s |
| Others | SRAM AXS Extension Cord / Avinox 4A Charger |
| Weight | 22.8 Kg |
| Display | Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R) |
| Motor | Avinox M2S |
| Battery | Avinox 800Wh Battery |
| Measurement | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (mm) | 380 | 410 | 435 | 460 | 490 |
| Top Tube (mm) | 586 / 586 | 606 / 606 | 628 / 629 | 650 / 651 | 672 / 673 |
| BB Drop (mm) | 6 / 11 | 6 / 11 | 6 / 11 | 6 / 11 | 6 / 11 |
| Chainstay Length (mm)* | 345 / 340 | 345 / 340 | 345 / 340 | 345 / 340 | 345 / 340 |
| Seat Stay Length (mm) | 450 / 451 | 450 / 451 | 450 / 451 | 455 / 456 | 455 / 456 |
| Seat Tube Angle (°) | 73.5° / 73.15° | 73.5° / 73.15° | 73.5° / 73.15° | 73.5° / 73.15° | 73.5° / 73.15° |
| Effective Seat Angle (°) | 77° / 76.65° | 77° / 76.65° | 77° / 76.65° | 77° / 76.65° | 77° / 76.65° |
| Head Tube Angle (°) | 63.5° / 63.15° | 63.5° / 63.15° | 63.5° / 63.15° | 63.5° / 63.15° | 63.5° / 63.15° |
| Fork Rake (mm) | 44 | 44 | 44 | 44 | 44 |
| Wheelbase (mm) | 1241 / 1242 | 1261 / 1262 | 1286 / 1287 | 1315 / 1316 | 1339 / 1340 |
| Head Tube Length (mm) | 110 | 110 | 120 | 130 | 140 |
| Reach (mm) | 440 / 436 | 460 / 456 | 480 / 476 | 500 / 496 | 520 / 516 |
| Stack (mm) | 631 / 633 | 631 / 634 | 640 / 643 | 649 / 652 | 658 / 661 |
