Product Details

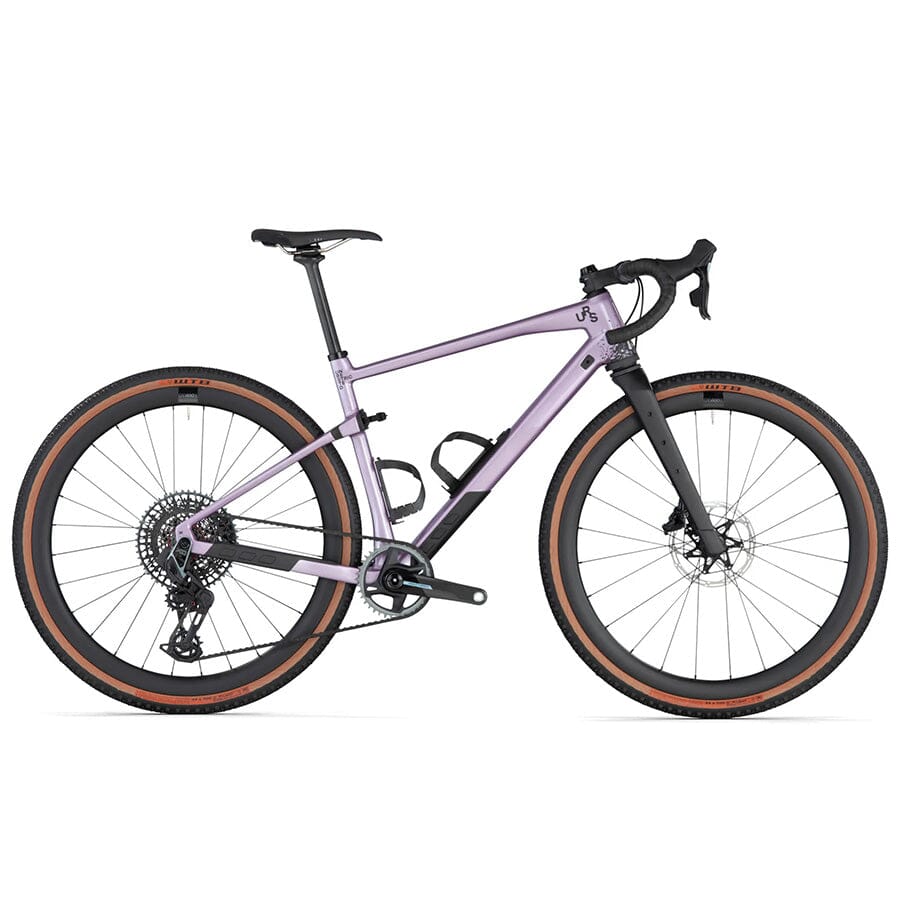

When gravel riders face the choice between rigid efficiency and suspension comfort, traditional gravel bikes force compromise between speed and capability. The BMC URS 01 LT ONE eliminates that compromise, combining front and rear Micro Travel Technology (MTT) suspension with the unmatched gear range of SRAM Force AXS x X0 Eagle Transmission to deliver a true gravel+ experience, where no terrain, distance, or adventure is off-limits.
Built around BMC’s premium carbon frame, the URS 01 LT ONE features a 20mm MTT suspension fork with coil spring and hydraulic damping up front, paired with 10mm of XCell damper-tuned rear suspension for comfort that adapts to weight and terrain. The groundbreaking drivetrain pairing of Force eTap AXS wireless precision and X0 Eagle Transmission’s 10–52T cassette range provides effortless climbing and road-speed efficiency. Rolling on lightweight CRD-400 SL carbon wheels with 44mm WTB Raddler tires and clearance up to 47mm, this setup handles everything from tarmac to technical backcountry.
Integrated downtube storage with a purpose-built pouch and included side-load bottle cages keeps essentials accessible without extra bags, while multiple cargo mounts expand expedition capacity. BMC’s gravel+ geometry combines long reach with a short stem for stable, responsive handling on unpredictable terrain—proving that at just 10.1kg, true adventure performance doesn’t require choosing between speed, comfort, and capability.
Key Features
- Frame: URS 01 Premium Carbon with Micro Travel Technology
- Suspension: Micro Travel Technology Suspension Fork with Micro Travel Technology Stays
- Drivetrain: SRAM Force AXS x SRAM X0 Eagle Transmission
- Wheelset: CRD-400 SL Carbon Wheels
| Specification | Detail |
|---|---|
| Frame | URS 01 Premium Carbon with Micro Travel Technology | Gravel+ Geometry | ICS Technology | Integrated Storage | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle | UDH Dropout |
| Front Suspension | Micro Travel Technology Suspension Fork | Premium Carbon Blades | 20mm Travel | Coil Spring & Hydraulic Damper | Cargo Mounts | Fender Mounts | Hub-Dynamo Cable Routing |
| Rear Suspension | Micro Travel Technology Stays |
| Stem | BMC MSM |
| Handlebar | Easton EA70 AX |
| Seatpost | URS 01 Premium Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible |
| Saddle | WTB Gravelier Steel SL | Medium |
| Crankset | SRAM Force 1 DUB WIDE |
| Chainrings | 38T |
| Cassette | SRAM X0 Eagle Transmission XS-1295 | 10-52T |
| Chain | SRAM X0 Eagle Transmission Flattop |
| Rear Derailleur | SRAM X0 Eagle Transmission |
| Shifters | SRAM Force eTap AXS |
| Gearing | 1 x 12 |
| Bottom Bracket | PF86 Bottom Bracket |
| Brake Levers / Calipers | SRAM Force eTap AXS |
| Rotors | SRAM Centerline X | 180 / 160mm |
| Rims | CRD-400 SL Carbon | Tubeless Ready | 40mm |
| Hubs | CRD-400 SL |
| Tires | WTB Raddler | 44mm |
| Tubeless Information | Tubeless Ready Rims | Tubetype Tires |
| Included Accessories | URS Bottle Cages | Storage Pouch |
| Tire Clearance | 47mm measured tire |
| Weight (without pedals) | 10.1 kg |
| ASTM Classification | Level 2 |
| System Weight Limit | 120 kg |
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | <167 | 165–170 | 168–178 | 176–188 | >188 |
| Reach | 390 | 400 | 410 | 420 | 430 |
| Stack | 560 | 560 | 580 | 610 | 640 |
| Bar Drop | 120 | 120 | 120 | 120 | 120 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 420 | 420 | 420 | 440 | 440 |
| BB Drop | 76 | 76 | 76 | 76 | 76 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 |
| Fork Length | 405 | 405 | 415 | 415 | 415 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 |
| Front Center | 633 | 643 | 651 | 672 | 693 |
| Head Tube | 133 | 133 | 140 | 172 | 204 |
| Head Tube Angle | 69 | 69 | 69.5 | 69.5 | 69.5 |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Seat Angle | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| Seat Tube | 430 | 445 | 475 | 505 | 540 |
| Seatpost Length | 310 | 360 | 360 | 360 | 360 |
| Seatpost Offset | 0 | 0 | 0 | 0 | 0 |
| Standover Height | 727 | 735 | 758 | 778 | 795 |
| Stem Angle | ±7 | ±7 | ±7 | ±7 | ±7 |
| Stem Length | 70 | 70 | 70 | 80 | 90 |
| Top Tube | 545 | 555 | 571 | 589 | 607 |
| Trail | 84 | 84 | 86 | 86 | 86 |
| Wheelbase | 1052 | 1062 | 1070 | 1091 | 1112 |
