Product Details

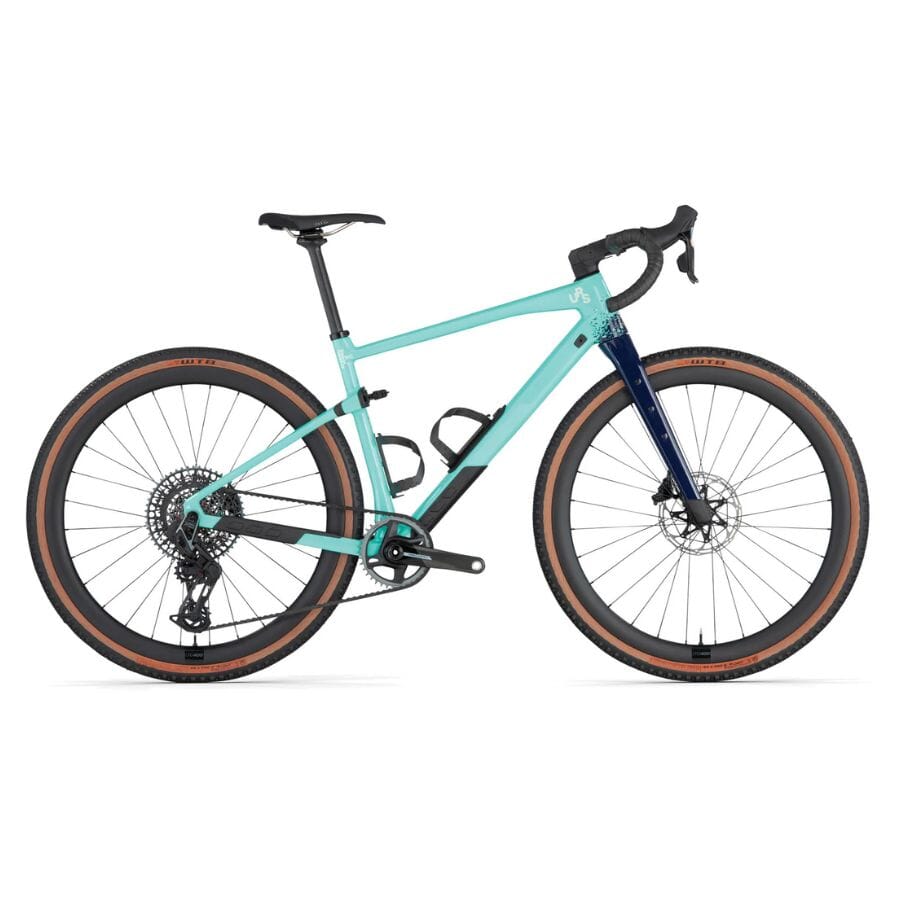

The BMC URS 01 THREE pushes gravel riding into new territory with revolutionary features that enhance both performance and capability. Built around a premium carbon frame with integrated downtube storage and seamlessly hidden cable routing, this bike is engineered for long-distance adventures. The standout feature is the Micro Travel Technology rear stays that provide 10mm of suspension through XCell damper technology, while the innovative MTT x Redshift suspension stem adds front compliance for maximum comfort on rough terrain. Combined with the new Gravel+ geometry featuring long reach and short stems, the URS delivers stable yet responsive handling that keeps you in control.
The drivetrain combines SRAM Force AXS wireless shifting with the wide-range X0 Eagle Transmission, giving you a massive 10-52t cassette range to tackle any gradient. Premium CRD-400 carbon wheels with 44mm WTB Raddler tires provide excellent traction and tubeless-ready performance, while the integrated storage solutions and cargo mounts make this bike ready for bikepacking adventures or long gravel races.
KEY FEATURES
- Frame - URS 01 Premium Carbon with MTT
- Suspension - Micro Travel Technology Stays
-
Drivetrain - SRAM Force AXS with X0 Eagle Transmission
- Wheelset - CRD-400 Carbon
*Please note that bike specifications are subject to change without prior notice
| Specification | Detail |
|---|---|
| Frame | URS 01 Premium Carbon with MTT | Tuned Compliance Concept Gravel | Gravel+ Geometry | ICS Technology Stalth Cable Routing | Integrated Storage | Fender and Rack Mounts | 12 x 142mm Thru-Axle | UDH Droput |
| Fork | URS 01 Premium Carbon with Tuned Compliance Concept Gravel | ICS Technology Integrated Brake & Hub Dynamo Routing | Cargo Mounts | Fender and Rack Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Rear Suspension | Micro Travel Technology Stays |
| Stem | ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology |
| Handlebar | Easton EA70 AX |
| Seatpost | URS 01 | 01 Premium Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible |
| Saddle | WTB Gravelier Steel SL | Medium |
| Crankset | SRAM Force 1 DUB WIDE |
| Chainrings | 38T |
| Cassette | SRAM X0 Eagle Transmission XS-1295 |
| Cassette Size | 10-52T |
| Chain | SRAM X0 Eagle Transmission Flattop |
| Rear Derailleur | SRAM X0 Eagle Transmission |
| Shifters | SRAM Force eTap AXS |
| Gears | 1 x 12 |
| Bottom Bracket | PF86 Bottom Bracket |
| Brake Levers / Calipers | SRAM Force eTap AXS |
| Rotors | SRAM Centerline X |
| Rotor Size (F/R) | 180 / 160mm |
| Rims | CRD-400 Carbon | Tubeless Ready | 40mm |
| Hubs (F/R) | CRD-400 |
| Tires | WTB Raddler | 44mm |
| Tubeless Information | Tubeless Ready Rims | Tubetype Tires |
| In the Box | URS Bottle Cages | Storage Pouch |
| Tire Clearance | 47mm measured tire |
| Weight without Pedals | 9.3 Kg |
| ASTM Classification | Level 2 |
| System Weight Limit | 120kg |
| Specification | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | <167 | 165-170 | 168-178 | 176-188 | >188 |
| Reach | 390 | 400 | 410 | 420 | 430 |
| Stack | 560 | 560 | 580 | 610 | 640 |
| Bar Drop | 120 | 120 | 120 | 120 | 120 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 420 | 420 | 420 | 440 | 440 |
| BB Drop | 76 | 76 | 76 | 76 | 76 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 |
| Fork Length | 405 | 405 | 415 | 415 | 415 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 |
| Front Center | 633 | 643 | 651 | 672 | 693 |
| Head Tube | 133 | 133 | 140 | 172 | 204 |
| Head Tube Angle | 69 | 69 | 69.5 | 69.5 | 69.5 |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Seat Angle | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| Seat Tube | 430 | 445 | 475 | 505 | 540 |
| Seatpost Length | 310 | 360 | 360 | 360 | 360 |
| Seatpost Offset | 0 | 0 | 0 | 0 | 0 |
| Standover Height | 727 | 735 | 758 | 778 | 795 |
| Stem Angle | 0 | 0 | 0 | 0 | 0 |
| Stem Length | 72 | 72 | 72 | 80 | 90 |
| Top Tube | 545 | 555 | 571 | 589 | 607 |
| Trail | 84 | 84 | 86 | 86 | 86 |
| Wheelbase | 1052 | 1062 | 1070 | 1091 | 1112 |
