Product Details

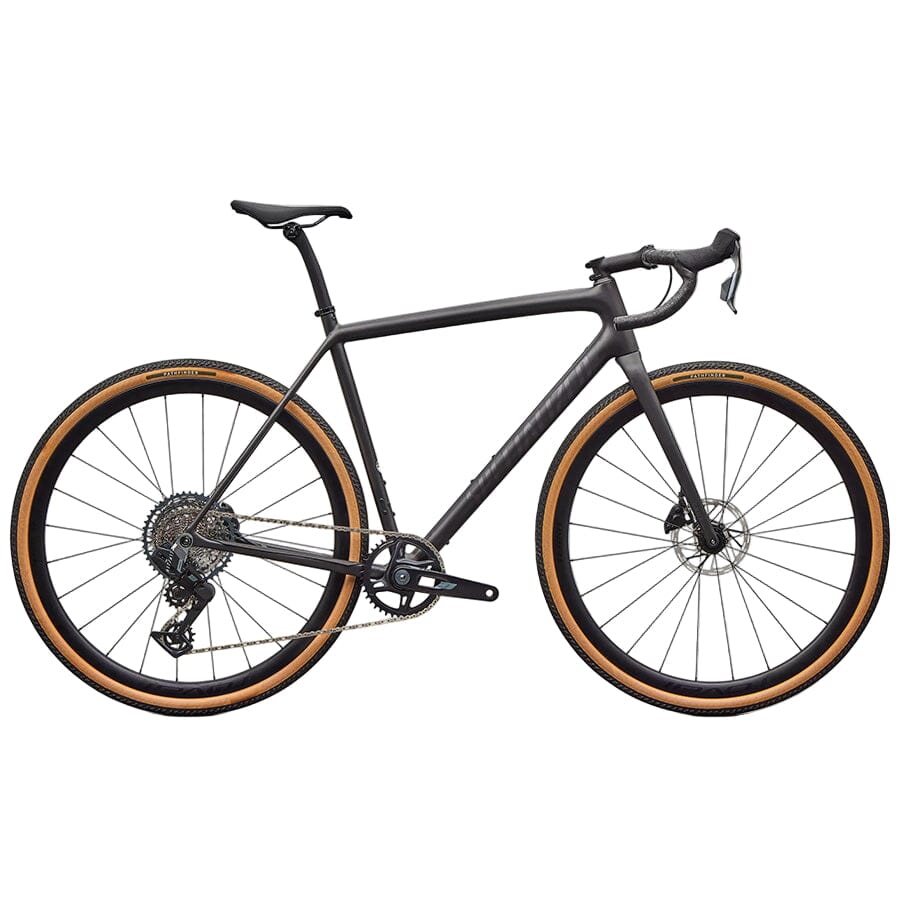

The Specialized Crux Expert SRAM Rival XPLR AXS is built for riders seeking a lightweight, capable gravel bike that excels across a wide range of terrain. Its ultralight carbon frame, inspired by the innovations of the Aethos, combines climbing efficiency, responsive handling, and comfort over rough gravel or challenging surfaces. Performance gravel geometry and a race-influenced fit make the Crux both nimble at the pedals and supple in the saddle, giving riders confidence and control on every adventure.
Equipped with SRAM Rival XPLR AXS 1x13, this Crux Expert delivers effortless wireless shifting and reliable braking across all conditions. Roval Terra C Disc wheels paired with 2Bliss Ready 700x40mm Pathfinder Pro tires provide traction, stability, and durability over mixed terrain. With clearance for up to 47c tires or 650b x 2.1”, this gravel bike combines versatility, speed, and confidence for riders ready to tackle long rides, technical trails, or anything in between.
Key Features
-
Ultralight Carbon Frame – Inspired by Aethos technology for responsive climbing, smooth handling, and long-ride comfort
-
SRAM Rival XPLR AXS 1x13 – Wireless shifting with 13-speed gearing and reliable braking for consistent performance
-
Gravel-Ready Wheels & Tires – Roval Terra C Disc wheels with 2Bliss Ready 700x40mm Pathfinder Pro tires and massive tire clearance for versatility
| Specification | Detail |
|---|---|
| Frame | Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Front Brake | NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor |
| Rear Brake | NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor |
| Shift Levers | NEW SRAM Rival AXS E1 HRD |
| Rear Derailleur | NEW SRAM Rival XPLR AXS E1 |
| Cassette | NEW SRAM Rival XPLR XG-1351, 13sp, 10-46t |
| Chain | NEW SRAM Rival E1 |
| Crankset | NEW SRAM Rival XPLR E1 |
| Chainrings | 40T, INCLUDED W/CRANK SET |
| Bottom Bracket | SRAM DUB BSA |
| Front Tire | Pathfinder 700x40, Tubeless Ready |
| Front Wheel | Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes |
| Rear Tire | Pathfinder 700x40, Tubeless Ready |
| Rear Wheel | Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes |
| Inner Tubes | Presta, 700x32-50mm |
| Stem | Specialized Pro SL, alloy, 4-bolt |
| Handlebars | Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare |
| Tape | Supacaz Super Sticky Kush |
| Saddle | Body Geometry Power Expert |
| SeatPost | Roval Terra Carbon Seat Post, 20mm Offset |
| Seat Binder | Specialized Alloy, 30mm |
| Product ID | 223489 |
| Weight | 8.1 kg (17 lb, 13.7 oz) |
| Weight Size | 56 |
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 70mm | 80mm | 90mm | 100mm | 110mm | 110mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 330mm | 380mm | 380mm | 380mm |
| Stack | 530mm | 547mm | 560mm | 578mm | 598mm | 621mm |
| Reach | 375mm | 382mm | 388mm | 397mm | 405mm | 415mm |
| Head Tube Length | 100mm | 115mm | 130mm | 147mm | 167mm | 190mm |
| Head Tube Angle | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
| BB Height | 284mm | 284mm | 286mm | 286mm | 286mm | 286mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 74mm | 69mm | 67mm | 64mm | 62mm | 60mm |
| Fork Length, Full | 401mm | 401mm | 401mm | 401mm | 401mm | 401mm |
| Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front Center | 594mm | 600mm | 608mm | 618mm | 630mm | 644mm |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1008mm | 1014mm | 1023mm | 1033mm | 1045mm | 1059mm |
| Top Tube Length, Horizontal | 512mm | 539mm | 549mm | 568mm | 582mm | 599mm |
| Bike Standover Height | 749mm | 772mm | 794mm | 816mm | 841mm | 866mm |
| Seat Tube Length | 466mm | 496mm | 521mm | 546mm | 576mm | 606mm |
| Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
