Product Details

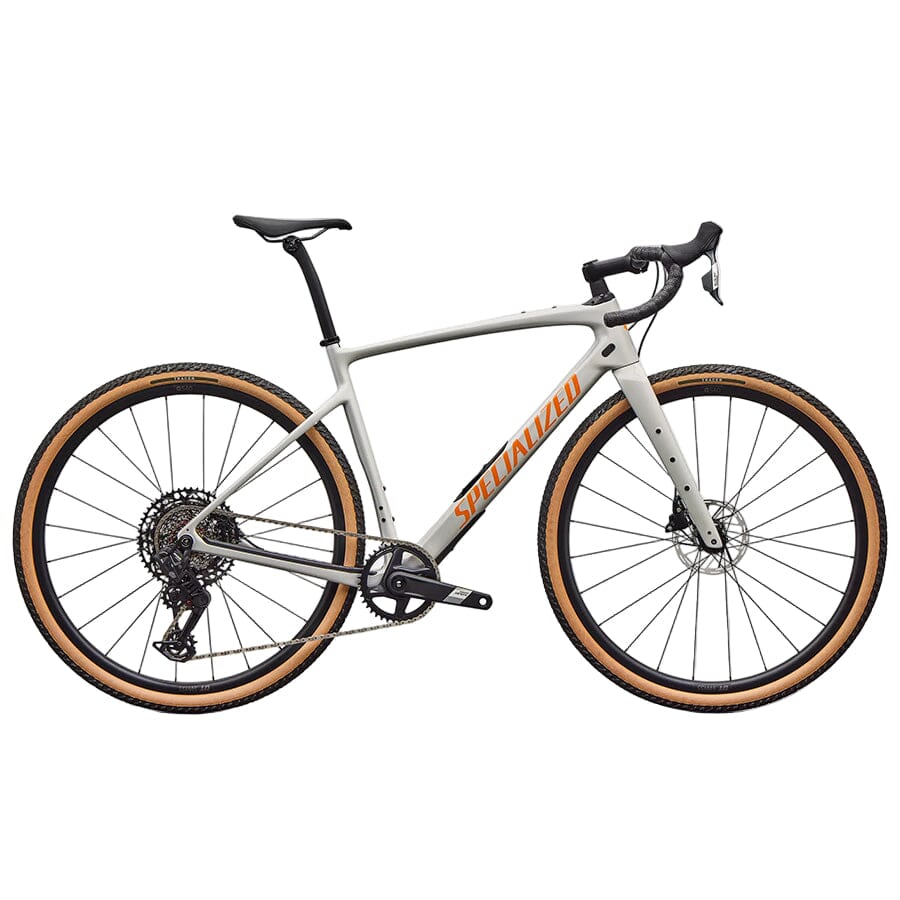

The Specialized Diverge 4 Comp Carbon is built for riders seeking a versatile gravel bike that excels on both fast gravel races and off-grid adventures. Its lightweight and stiff FACT 9r Carbon frame delivers efficient power transfer, responsive handling, and precise control over varied terrain. Future Shock 3.2 suspension provides smooth, tunable travel, improving comfort and speed across rough gravel while maintaining a responsive feel. Rider-First Engineered geometry and 50mm tire clearance give confidence and stability, while integrated SWAT 4.0 Storage adds more internal capacity, improved ergonomics, and a sleek design to carry tools or essentials without compromising performance. A carbon beam replaces a traditional tube for maximum rear clearance, ensuring full capability for adventure or race scenarios.
Equipped with the SRAM Apex AXS 1x12 wireless drivetrain and paired with S1000 Transmission wheels on DT G540 hubs, the Diverge 4 Comp Carbon provides precise shifting, reliable braking, and durable performance across mixed terrain. Every detail—from the FACT 9r carbon construction to the SWAT storage and Future Shock 3.2—has been optimized for smooth, efficient, and confident riding. The Diverge Comp weighs just 9.70kg, making it a capable companion for long rides, fast gravel races, or off-grid explorations.
Key Features
-
FACT 9r Carbon Frameset with Future Shock 3.2 – Lightweight, stiff, and responsive with tunable suspension for smooth control
-
SRAM Apex AXS Drivetrain & S1000 Wheels – Wireless 1x12 shifting with durable wheelset for confident performance across terrain
-
SWAT 4.0 Storage & Tire Clearance – Integrated storage with 5% more volume and 50mm tire clearance for tools, essentials, and versatile gravel riding
| Specification | Detail |
|---|---|
| Frame | Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc |
| Front Brake | SRAM Apex, hydraulic disc |
| Rear Brake | SRAM Apex, hydraulic disc |
| Shift Levers | SRAM Apex AXS |
| Rear Derailleur | SRAM S-1000 Eagle AXS Transmission |
| Cassette | SRAM 1270 Transmission Cassette, 12 Spd,10-52t |
| Chain | SRAM GX T-Type 12 speed |
| Crankset | SRAM Apex DUB Wide, 40t |
| Bottom Bracket | SRAM DUB BSA 68 Wide |
| Front Wheel | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Front Tire | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Rear Tire | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Rear Wheel | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Inner Tubes | Presta, 700x32-50mm |
| Stem | Future Stem, Comp |
| Handlebars | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
| Tape | Supacaz Super Sticky Kush |
| Saddle | Body Geometry Power Sport, steel rails |
| SeatPost | Roval Terra Carbon Seat Post, 20mm Offset |
| Seat Binder | Specialized Alloy, 30.8mm |
| SWAT | SWAT 4.0 internal downtube storage |
| Product ID | 223513 |
| Weight | 9.7 kg (21 lb, 6.2 oz) |
| Weight Size | 56 |
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 380mm | 380mm | 380mm | 380mm |
| Stack | 563mm | 578mm | 592mm | 610mm | 634mm | 659mm |
| Reach | 365mm | 374mm | 387mm | 400mm | 412mm | 425mm |
| Head Tube Length | 90mm | 104mm | 116mm | 135mm | 161mm | 187mm |
| Head Tube Angle | 70° | 70.5° | 71° | 71° | 71° | 71° |
| BB Drop | 85mm | 85mm | 85mm | 85mm | 85mm | 85mm |
| Trail | 72mm | 68mm | 65mm | 65mm | 65mm | 65mm |
| Fork Length, Full | 391mm | 391mm | 391mm | 391mm | 391mm | 391mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front Center | 604mm | 613mm | 626mm | 645mm | 665mm | 686mm |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1019mm | 1031mm | 1041mm | 1060mm | 1081mm | 1102mm |
| Top Tube Length, Horizontal | 521mm | 537mm | 556mm | 575mm | 593mm | 613mm |
| Bike Standover Height | 700mm | 725mm | 754mm | 779mm | 805mm | 832mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 500mm | 530mm | 560mm |
| Seat Tube Angle | 74.5° | 74° | 74° | 74° | 74° | 74° |
