Product Details

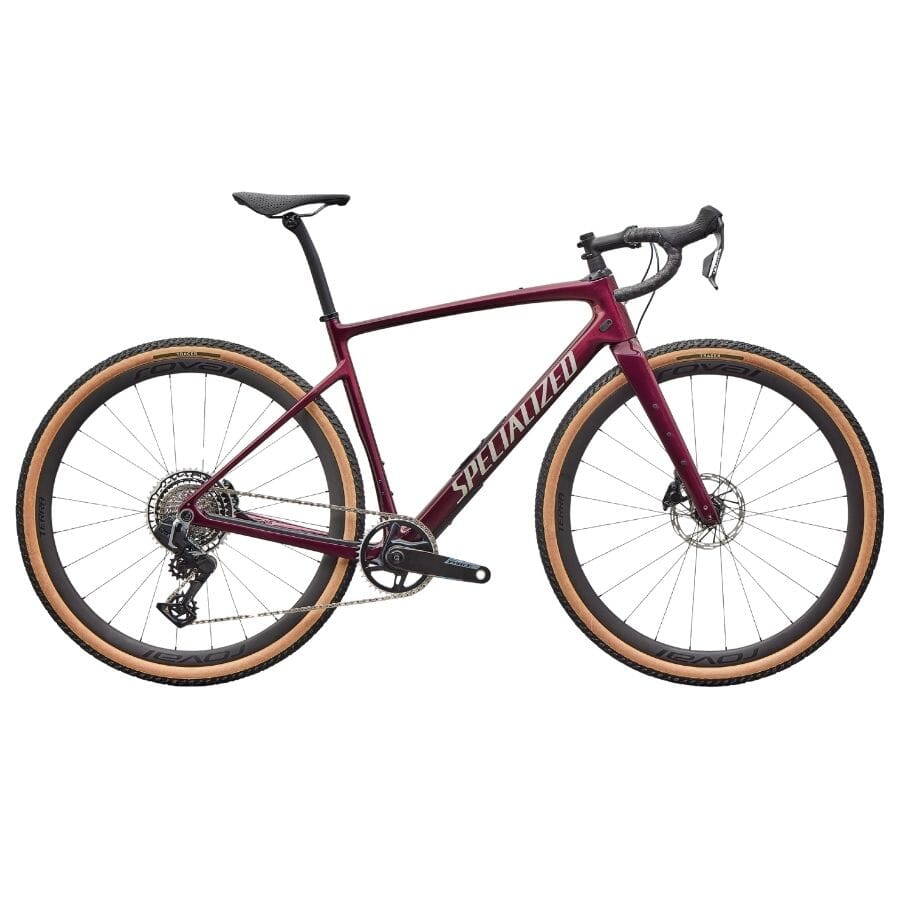

The Specialized Diverge 4 Pro is the ultimate getaway vehicle—race-tuned, adventure-approved, and built to push gravel performance further than ever before. With its FACT 9r Carbon frame, this bike is light, fast, and incredibly capable on everything from high-speed race courses to rugged backroads. Future Shock 3.3 suspension delivers a perfectly balanced ride—smoothing rough terrain without dulling the bike’s razor-sharp response—while SWAT 4.0 internal storage keeps your essentials tucked neatly inside the frame for a clean, uncluttered setup.
Every detail of the Diverge 4 Pro is designed for riders who want speed, versatility, and confidence in equal measure. Its progressive geometry and carbon construction combine stable handling with race-ready efficiency, while SRAM’s Force AXS XPLR 12-speed drivetrain delivers flawless wireless shifting and precise power transfer. Paired with Roval Terra CL wheels and 50mm tire clearance, it’s a gravel machine that’s equally at home chasing podiums or disappearing into the wilderness.
Key Features
-
Future Shock 3.3 Suspension — Tunable, hydraulically damped 20mm travel smooths the ride for faster, more controlled performance on rough terrain.
-
FACT 9r Carbon Frame — Rider-First Engineered for exceptional responsiveness and comfort, with 50mm tire clearance and optimized geometry for all-out speed.
-
SWAT 4.0 Storage System — Sleeker, more ergonomic internal storage with 5% more capacity and a 10% larger opening for essentials on long rides.
| Specification | Detail |
|---|---|
| Frame | Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc |
| Front Brake | New SRAM Force E1, hydraulic disc |
| Rear Brake | New SRAM Force E1, hydraulic disc |
| Shift Levers | New SRAM Force AXS E1 |
| Rear Derailleur | New SRAM Force AXS E1 XPLR |
| Cassette | New SRAM Force E1 XPLR 10-46t, 13sp |
| Chain | New SRAM Force XPLR, 13sp |
| Crankset | New SRAM Force E1 XPLR, DUB Wide, 40t, Quarq Power Meter |
| Bottom Bracket | SRAM DUB BSA 68 Wide |
| Front Wheel | Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes |
| Rear Wheel | Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes |
| Front Tire | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Rear Tire | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Inner Tubes | Presta, 700x32-50mm |
| Stem | Specialized Pro SL, alloy, 4-bolt |
| Handlebars | Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
| Tape | Supacaz Super Sticky Kush |
| Saddle | Power Pro Mirror, Hollow Ti rails |
| SeatPost | Roval Terra Carbon Seat Post, 20mm Offset |
| Seat Binder | Specialized Alloy, 30.8mm |
| SWAT | SWAT 4.0 internal downtube storage |
| Product ID | 293747 |
| Weight | 8.39 kg (18 lb, 7.9 oz) |
| Weight Size | 56 |
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 380mm | 380mm | 380mm | 380mm |
| Stack | 563mm | 578mm | 592mm | 610mm | 634mm | 659mm |
| Reach | 365mm | 374mm | 387mm | 400mm | 412mm | 425mm |
| Head Tube Length | 90mm | 104mm | 116mm | 135mm | 161mm | 187mm |
| Head Tube Angle | 70° | 70.5° | 71° | 71° | 71° | 71° |
| BB Drop | 85mm | 85mm | 85mm | 85mm | 85mm | 85mm |
| Trail | 72mm | 68mm | 65mm | 65mm | 65mm | 65mm |
| Fork Length, Full | 391mm | 391mm | 391mm | 391mm | 391mm | 391mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front Center | 604mm | 613mm | 626mm | 645mm | 665mm | 686mm |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1019mm | 1031mm | 1041mm | 1060mm | 1081mm | 1102mm |
| Top Tube Length, Horizontal | 521mm | 537mm | 556mm | 575mm | 593mm | 613mm |
| Bike Standover Height | 700mm | 725mm | 754mm | 779mm | 805mm | 832mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 500mm | 530mm | 560mm |
| Seat Tube Angle | 74.5° | 74° | 74° | 74° | 74° | 74° |
