Product Details

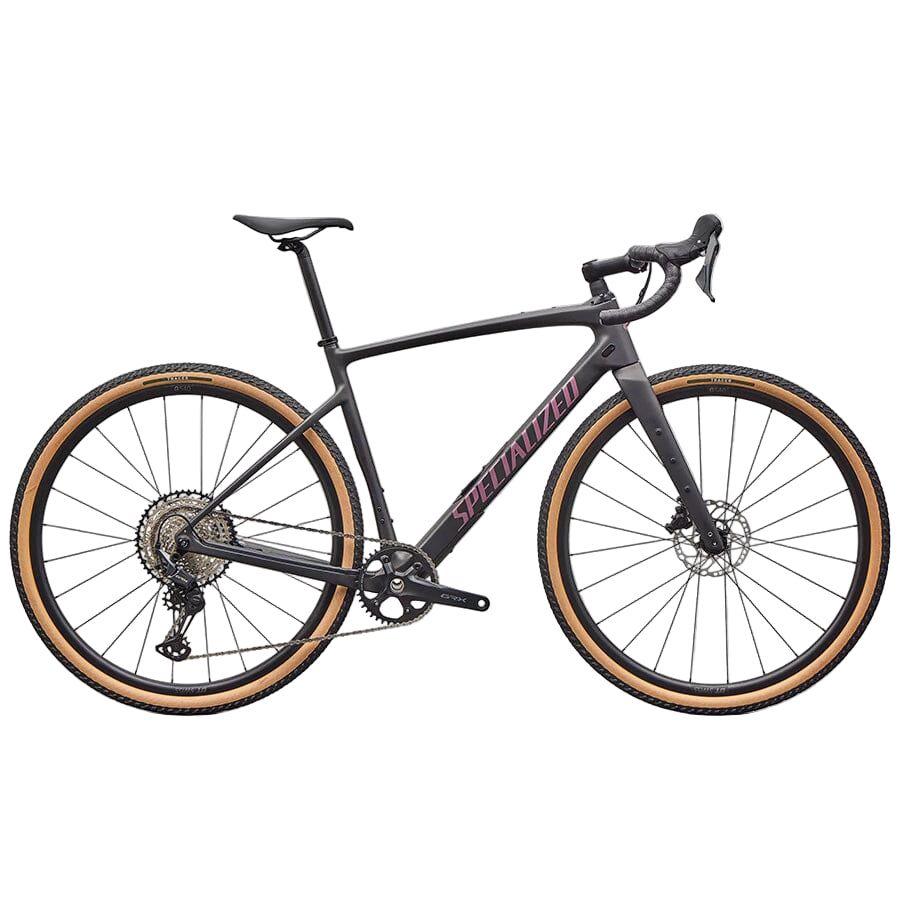

The Specialized Diverge 4 Sport Carbon Shimano GRX 600 is built for riders seeking a versatile gravel bike capable of fast-paced adventures and off-grid exploration. Its FACT 9r Carbon frame combines lightweight stiffness with responsive handling, while Future Shock 3.1 suspension provides smooth, tunable 20mm travel to absorb rough terrain without sacrificing pedaling efficiency. Rider-First Engineered geometry, including a slacker 71° head tube angle, lower bottom bracket, longer reach, and 430mm chainstays, keeps weight centered and handling confident across all sizes and terrain. Integrated SWAT 4.0 Storage offers more internal capacity, improved ergonomics, and a sleek design, making the bike ready for long rides and loaded adventures alike.
Equipped with Shimano GRX 600 1x12 drivetrain and paired with DT G540 wheels, the Diverge 4 Sport Carbon provides smooth, reliable shifting, precise braking, and durable performance across mixed terrain. With 50mm tire clearance, a carbon rear beam, and thoughtfully engineered suspension, this gravel bike balances speed, capability, and comfort for every ride. Weighing 9.79kg, it’s ready to tackle long gravel rides, endurance adventures, or off-grid exploration with confidence.
Key Features
-
FACT 9r Carbon Frame with Future Shock 3.1 – Lightweight, stiff, and responsive with 20mm tunable suspension for smooth control
-
Shimano GRX 600 Drivetrain & DT G540 Wheels – Reliable 1x12 shifting with durable wheels for confidence across varied terrain
-
SWAT 4.0 Storage & Tire Clearance – Integrated storage with 5% more volume, 10% larger opening, and 50mm tire clearance for tools, essentials, and versatile gravel riding
| Specification | Detail |
|---|---|
| Frame | Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc |
| Front Brake | Shimano GRX BR-RX410 Hydraulic Disc |
| Rear Brake | Shimano GRX BR-RX410 Hydraulic Disc |
| Shift Levers | Shimano GRX ST-RX610 12-speed |
| Rear Derailleur | Shimano GRX RX822-SGS, 12-speed |
| Cassette | Shimano SLX, CS-M7100, 12-speed, 10-51t |
| Chain | Shimano SLX, M7100, 12-speed |
| Crankset | Shimano GRX FC-RX610, 40t |
| Bottom Bracket | Shimano BSA Threaded 68mm |
| Front Wheel | DT Swiss G540 700c, Center Lock Disc |
| Front Tire | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Rear Tire | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Rear Wheel | DT Swiss G540 700c, Center Lock Disc |
| Inner Tubes | Presta, 700x32-50mm |
| Stem | Future Stem, Comp |
| Handlebars | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
| Tape | Supacaz Super Sticky Kush |
| Saddle | Body Geometry Power Sport, steel rails |
| SeatPost | Carbon, single-bolt, 27.2mm |
| Seat Binder | Specialized Alloy, 30.8mm |
| SWAT | SWAT 4.0 internal downtube storage |
| Product ID | 223514 |
| Weight | 9.79 kg (21 lb, 9.3 oz) |
| Weight Size | 56 |
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 380mm | 380mm | 380mm | 380mm |
| Stack | 563mm | 578mm | 592mm | 610mm | 634mm | 659mm |
| Reach | 365mm | 374mm | 387mm | 400mm | 412mm | 425mm |
| Head Tube Length | 90mm | 104mm | 116mm | 135mm | 161mm | 187mm |
| Head Tube Angle | 70° | 70.5° | 71° | 71° | 71° | 71° |
| BB Drop | 85mm | 85mm | 85mm | 85mm | 85mm | 85mm |
| Trail | 72mm | 68mm | 65mm | 65mm | 65mm | 65mm |
| Fork Length, Full | 391mm | 391mm | 391mm | 391mm | 391mm | 391mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front Center | 604mm | 613mm | 626mm | 645mm | 665mm | 686mm |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1019mm | 1031mm | 1041mm | 1060mm | 1081mm | 1102mm |
| Top Tube Length, Horizontal | 521mm | 537mm | 556mm | 575mm | 593mm | 613mm |
| Bike Standover Height | 700mm | 725mm | 754mm | 779mm | 805mm | 832mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 500mm | 530mm | 560mm |
| Seat Tube Angle | 74.5° | 74° | 74° | 74° | 74° | 74° |
