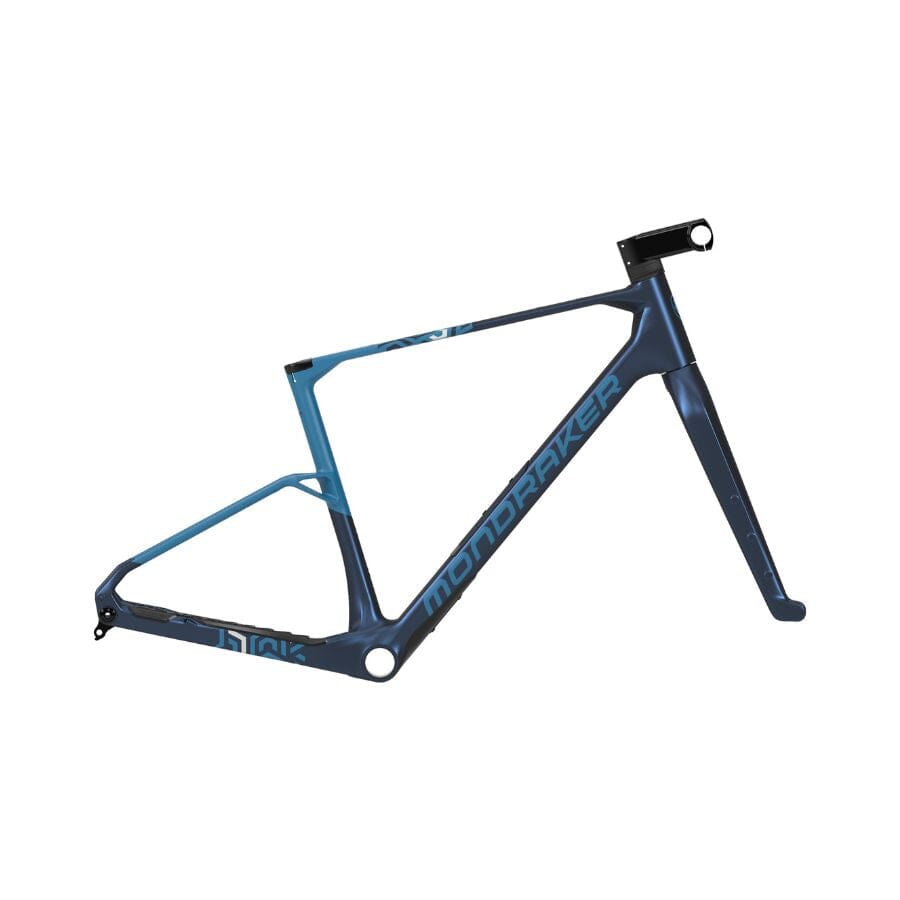

Mondraker Arid Carbon RR SL Frameset
Product Details
The Mondraker Arid Carbon RR SL Frameset is the ultimate expression of gravel bike innovation, meticulously crafted to deliver exceptional performance, comfort, and utility in the toughest conditions. As the flagship of the Arid lineup, this frameset represents the pinnacle of Mondraker’s engineering, featuring the elite Stealth Air Carbon construction, Forward Geometry, and a full suite of premium features designed to redefine what’s possible on dirt, gravel, and everything in between.
Built for riders who chase speed and adventure, the Arid Carbon RR SL pairs lateral stiffness for efficient power transfer with vertical compliance for superior comfort. The tuned geometry includes a 70° headtube angle for composed descending and a compact 425mm chainstay for agile handling, whether you're navigating twisty singletrack or grinding out endless gravel miles. With five sizes available, including a new M/L option for in-between riders, fit and control are dialed for every body.
A standout feature is the Carry-On internal storage system, a fully integrated, watertight, and dustproof downtube compartment with custom velcro-fastened bags for essential gear such as tools, snacks, tubes, and pumps. This keeps everything secure and rattle-free. The frame includes thoughtful details like six water bottle mounts, clearance for 700x50c tires, HHG internal cable routing, and UDH derailleur compatibility, making it a blank canvas for your next build.
From ultra-endurance events to spontaneous gravel escapes, the Arid Carbon RR SL is your platform for a truly personal build. It is capable, versatile, and ready for anything.
Key Features
- Stealth Air Carbon Frame – Lightweight, laterally stiff, and vertically compliant for optimal power transfer and long-distance comfort.
- Carry-On Internal Storage – Watertight, dustproof downtube compartment with custom-fit bags keeps tools and essentials secure and silent.
- Forward Geometry with 5 Sizes – Updated sizing with a new M/L option for optimized fit and confident, responsive handling on all terrain.
| Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Seattube Length | 410 mm | 450 mm | 480 mm | 510 mm | 540 mm |
| Toptube Length | 520 mm | 550 mm | 580 mm | 600 mm | 630 mm |
| Bottom Bracket Drop | -75 | -75 | -75 | -75 | -75 |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Effective Seattube Angle | 74° | 74° | 74° | 74° | 74° |
| Headtube Angle | 70° | 70° | 70° | 70° | 70° |
| Fork Offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheelbase | 1003 mm | 1035 mm | 1067 mm | 1089 mm | 1121 mm |
| Headtube Length | 100 mm | 125 mm | 145 mm | 175 mm | 200 mm |
| Reach | 363 mm | 386 mm | 411 mm | 423 mm | 446 mm |
| Stack | 548 mm | 572 mm | 591 mm | 619 mm | 642 mm |
| Stem Length | 60 mm | 70 mm | 70 mm | 80 mm | 90 mm |
| Fork Height | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
