Mondraker Crafty Carbon R
Product Details

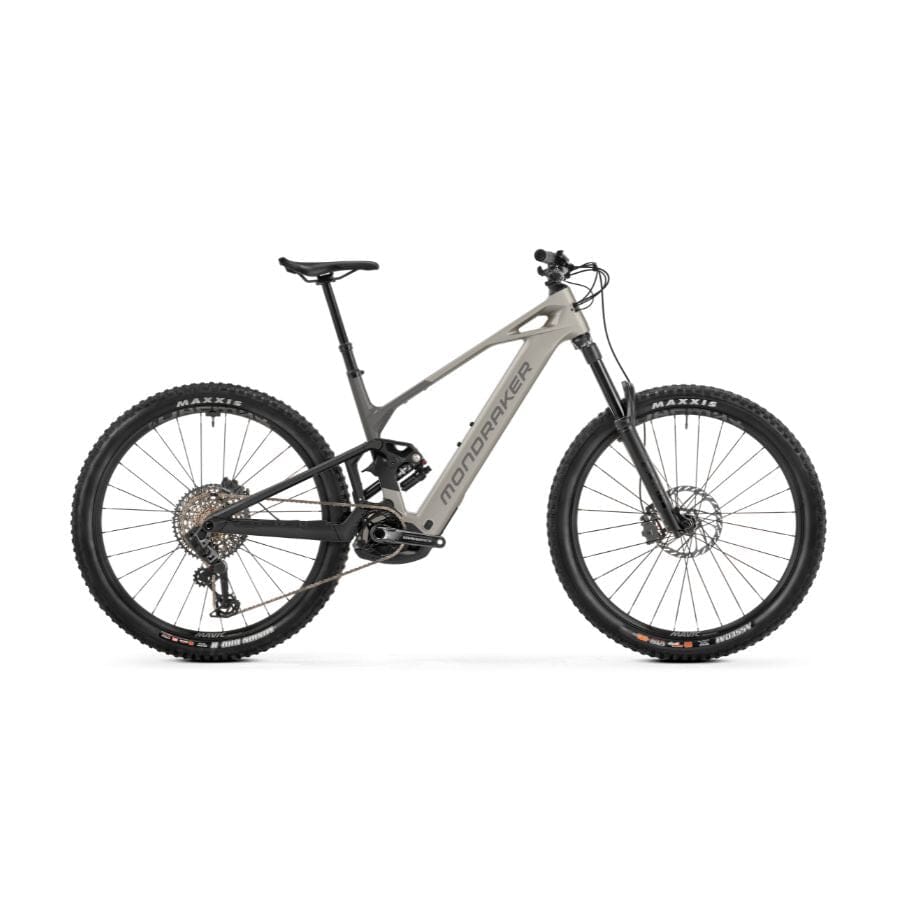

The Mondraker Crafty Carbon R is a high-performance e-MTB that combines cutting-edge carbon frame technology with Bosch’s powerful CX Gen5 motor and removable 800Wh battery for long-range rides. Designed with Mondraker’s exclusive ZERO suspension system, it delivers exceptional pedaling efficiency, smooth bump absorption, and stability on rough terrain. The bike is built around Forward Geometry with a longer reach and wheelbase for confident handling on any trail.
This model stands out with a Sram S1000 12-speed groupset, including Maven brakes and a wide 10-52 cassette, providing precise and powerful control. The seamless integration of the Bosch Kiox 400 display into the top tube offers an elegant, clean cockpit and easy access to ride data. Available in two striking color options, the Crafty Carbon R is designed to offer the best balance of power, performance, and style.
Key Features:
-
Bosch CX Gen5 Motor & 800Wh Removable Battery: Powerful and long-lasting support for all-day rides with easy charging access.
-
ZERO Suspension System: Patented design offers zero power loss, zero pedal kickback, zero brake jack, and excellent bump absorption for smooth, efficient riding.
-
Sram S1000 AXS Drivetrain: Reliable 12-speed drivetrain and four-piston brakes deliver precise shifting and strong stopping power in all conditions.
*Please note that bike specifications are subject to change without prior notice
| Specification | Detail |
|---|---|
| Frame |
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle Updated Zero Suspension System, 150mm travel, Forward Geometry Internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube One-piece Monoblock upper link, HHG internal cable routing MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Rear Shock |
Fox Float-X LV Performance, 185x55mm Compression: 2 positions lever, low-speed rebound, air preload Trunnion top mount, 30x8mm bottom bushings |
| Shock Settings | CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer |
| Fork |
Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned Tapered steerer tube, Boost 15x110mm axle, 44mm offset 3 positions with micro adjust compression, low-speed rebound, air preload |
| Headset |
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm bar bore |
| Handlebar |
Onoff S6 1.0 7050 alloy Rise: 25mm (38mm for L and XL), Width: 800mm 8º backsweep / 5º upsweep, 31.8mm bar bore |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm (Thicker size for L and XL) |
| Seatpost |
Onoff Pija dropper internal, 31.6mm diameter Remote lever with bearing S: 140-115mm, M: 160-135mm, ML: 180-155mm, L/XL: 210-185mm travel |
| Saddle | Ergon SM-10 |
| Front Brake | SRAM Maven Base 4-piston caliper, Centerline 200mm IS rotor, steel-backed organic pads |
| Rear Brake | SRAM Maven Base 4-piston caliper, Centerline 200mm IS rotor, steel-backed organic pads |
| Brake Lever | SRAM Maven Base with SwingLink, lever pivot bushings, tool-free reach adjust |
| Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip, EXO+ protection, 60 TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.5WT, tubeless ready, 3C MaxxTerra, DD protection, 2x120 TPI, folding bead |
| Crankset | Race Face Aeffect-R e-bike, 160mm |
| Chainrings | SRAM Eagle 34T T-Type, direct mount, steel, CL55 |
| Chain | SRAM GX Eagle T-Type, 12-speed, Powerlock |
| Rear Derailleur | SRAM S1000 Eagle AXS T-Type, 12-speed |
| Shift Levers | SRAM Eagle AXS Pod MMX, 12-speed |
| Cassette | SRAM XS-1270, 10-52T, T-Type, 12-speed |
| Weight | 52.7 lbs |
| Display | Kiox 400 / Bosch Mini Remote |
| Motor | Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 800Wh |
| Measurement | S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] |
|---|---|---|---|---|---|
| Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| Top Tube Length | 581 mm / 582 mm | 596 mm / 597 mm | 618 mm / 619 mm | 640 mm / 641 mm | 662 mm / 663 mm |
| Bottom Bracket Drop | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm |
| Bottom Bracket Height | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm |
| Chainstay Length | 455 mm / 456 mm | 455 mm / 456 mm | 455 mm / 456 mm | 465 mm / 466 mm | 465 mm / 466 mm |
| Seat Tube Angle | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° |
| Effective Seat Tube Angle | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° |
| Head Tube Angle | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° |
| Fork Offset | 44 mm | 44 mm | 44 mm / 44 mm | 44 mm | 44 mm / 44 mm |
| Wheelbase | 1240 mm / 1241 mm | 1255 mm / 1256 mm | 1280 mm / 1281 mm | 1314 mm / 1315 mm | 1338 mm / 1339 mm |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Reach | 445 mm / 441 mm | 460 mm / 456 mm | 480 mm / 476 mm | 500 mm / 496 mm | 520 mm / 516 mm |
| Stack | 638 mm / 641 mm | 638 mm / 641 mm | 647 mm / 650 mm | 656 mm / 659 mm | 665 mm / 668 mm |
