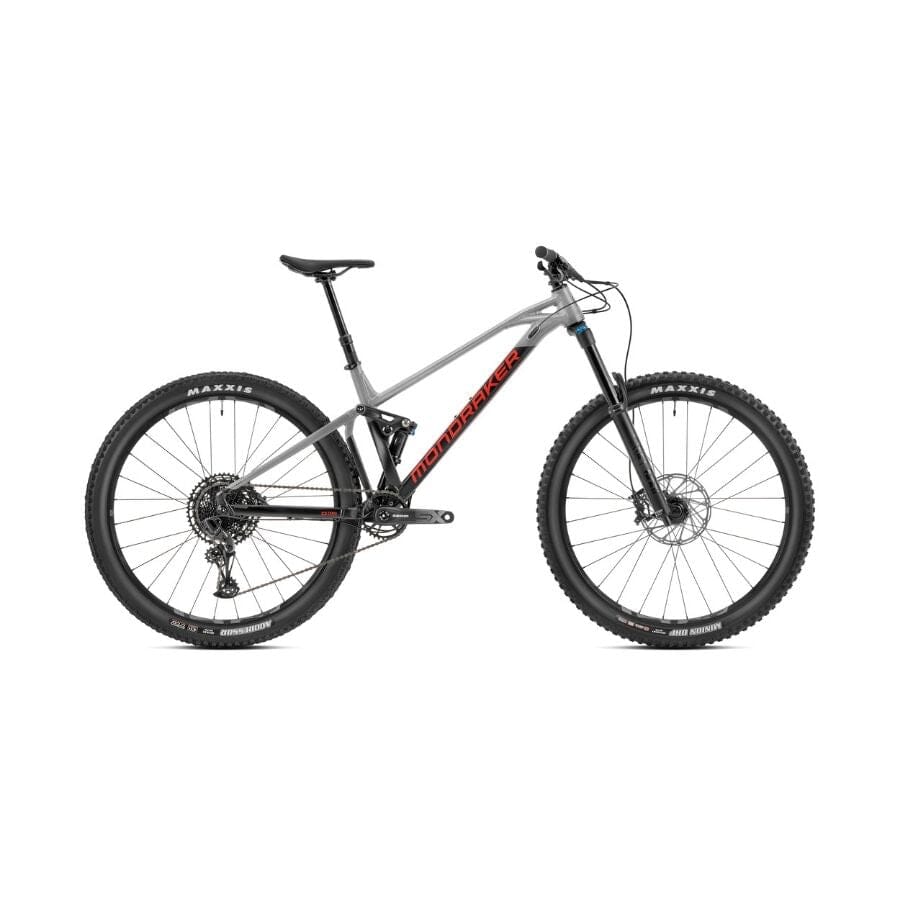

Mondraker Foxy 29 T 2024
Product Details
The Mondraker Foxy 29 T 2024 is a hard-hitting enduro machine built to dominate technical trails with confidence and control. Featuring a lightweight yet robust Alloy Stealth Evo frame, it delivers the same cutting-edge geometry and suspension performance.
With 160mm of front travel from the FOX 36 Float GRIP EVOL Rhythm fork and 150mm rear travel via the FOX Float DPS LV EVOL Performance shock, the Foxy delivers plush and composed suspension performance, whether you're bombing descents or climbing punchy terrain. Mondraker’s signature ZERO Suspension System ensures a balanced, efficient ride while soaking up big hits and chatter alike.
A SRAM SX Eagle drivetrain gives you a wide range of gearing for everything from steep climbs to all-out sprints. Paired with SRAM G2 R brakes, you’ll have consistent and powerful stopping performance when terrain gets rowdy. Rolling on e*thirteen LG1 Enduro wheels, the Foxy is ready to rail corners, smash through rock gardens, and take on any trail with confidence.
Whether you're new to enduro or looking for a budget-friendly race platform, the Mondraker Foxy delivers top-tier trail capability in a thoughtfully spec’d and dialed package.
Key Features
- Alloy Stealth Evo Frame – Lightweight and durable frame with modern enduro geometry and ZERO Suspension System.
- Fox Float DPS & Fox 36 Rhythm Suspension – 150mm rear and 160mm front travel for confident control on aggressive terrain.
- SRAM SX Eagle Drivetrain & G2 Brakes – Wide-range 12-speed gearing and reliable braking power for big-mountain riding.
- e*thirteen LG1 Enduro Wheels – Tough and trail-proven wheels built to handle rugged descents and harsh hits.
| Specification | Detail |
|---|---|
| Frame | Foxy 29 6061 Alloy Stealth Evo, Zero Suspension, 150mm travel, Forward Geometry, Boost 12x148mm, 73mm BSA, 1x drivetrain, internal routing |
| Sizes | S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
| Rear Shock | Fox Float DPS LV EVOL Performance, 205x62.5mm, 3-position compression |
| Shock Settings | Light compression & rebound, 0.6 air volume spacer |
| Fork | Fox 36 Float GRIP EVOL Rhythm, 160mm, Boost 15x110mm, 44mm offset |
| Headset | ONOFF Saturn tapered, ACB sealed bearings |
| Stem | ONOFF Sulfur FG 30mm, 6061 forged alloy |
| Handlebar | ONOFF Sulfur 1.0 alloy, 800mm width, 20mm rise |
| Grips | ONOFF Twin, 135mm, 1lock-on |
| Seatpost | ONOFF Pija dropper, internal, 31.6mm, size-specific travel |
| Saddle | SDG BEL-AIR 3.0, steel rails |
| Front Brake | Sram G2 R, 200mm Centerline rotor |
| Rear Brake | Sram G2 R, 180mm Centerline rotor |
| Brake Levers | Sram G2 R, tool-free reach adjust |
| Rims | e*thirteen LG1 Enduro, 30mm IW, tubeless ready |
| Spokes | e*thirteen Hive triple-butted steel, alloy nipples |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, 6° engagement, IS 6 bolts |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, EXO+, 120 TPI |
| Rear Tire | Maxxis Aggressor 29x2.3, Exo, 60 TPI |
| Crankset | Sram SX Eagle, DUB, S/M: 170mm, L/XL: 175mm |
| Chainring | 32T, steel, X-Sync 2 |
| Bottom Bracket | Sram DUB BSA, 73mm |
| Chain | Sram SX Eagle, 12s, Powerlock |
| Rear Derailleur | Sram SX Eagle, long cage, 12s |
| Shifter | Sram Trigger SX Eagle, 12s |
| Cassette | Sram PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Weight | 34.4 lb |
| Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Seattube length | 375 mm | 415 mm | 445 mm | 500 mm |
| Toptube length | 600 mm | 622 mm | 647 mm | 670 mm |
| Bottom bracket drop | -22/-27 mm | -22/-27 mm | -22/-27 mm | -22/-27 mm |
| Bottom bracket height | 350/345 mm | 350/345 mm | 350/345 mm | 350/345 mm |
| Chainstay length | 438/445 mm | 438/445 mm | 438/445 mm | 438/445 mm |
| Seat tube angle | 71/70.5º | 71/70.5º | 71/70.5º | 71/70.5º |
| Effective seattube angle | 77/76.5º | 77/76.5º | 77/76.5º | 77/76.5º |
| Headtube angle | 64.5/64º | 64.5/64º | 64.5/64º | 64.5/64º |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheelbase | 1210/1216 mm | 1233/1239 mm | 1260/1267 mm | 1286/1292 mm |
| Headtube length | 100 mm | 100 mm | 120 mm | 120 mm |
| Reach | 445/440 mm | 465/460 mm | 485/480 mm | 505/500 mm |
| Stack | 617 mm | 617 mm | 647 mm | 647 mm |
