Product Details

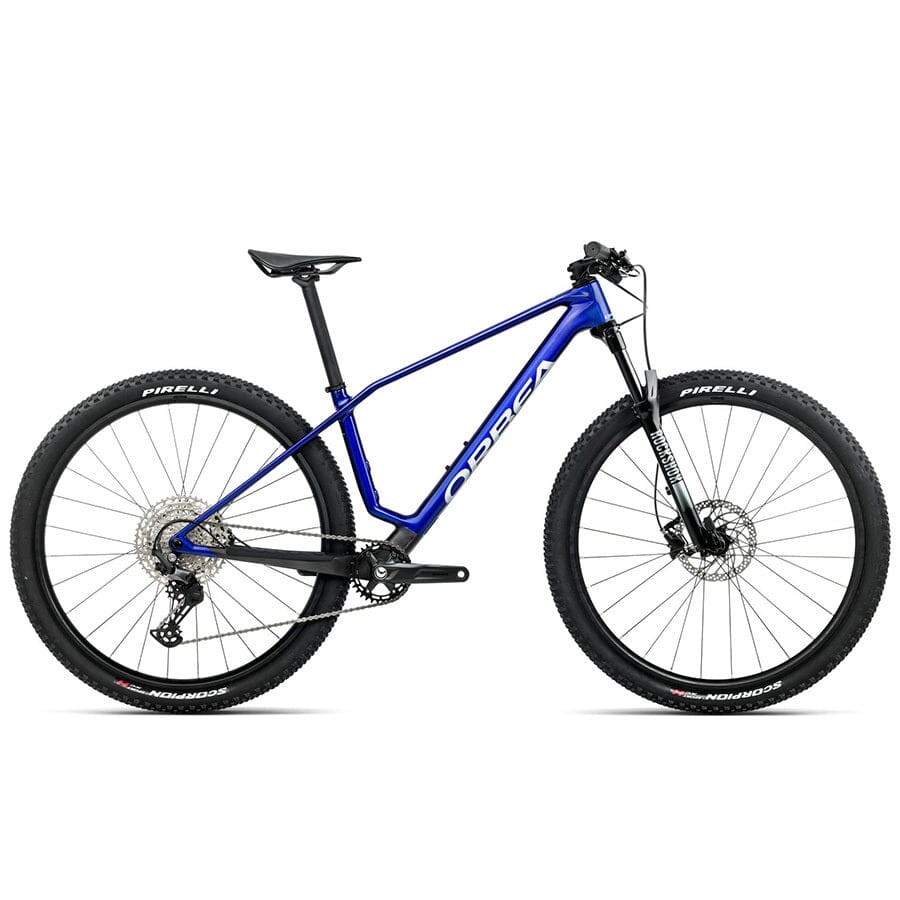

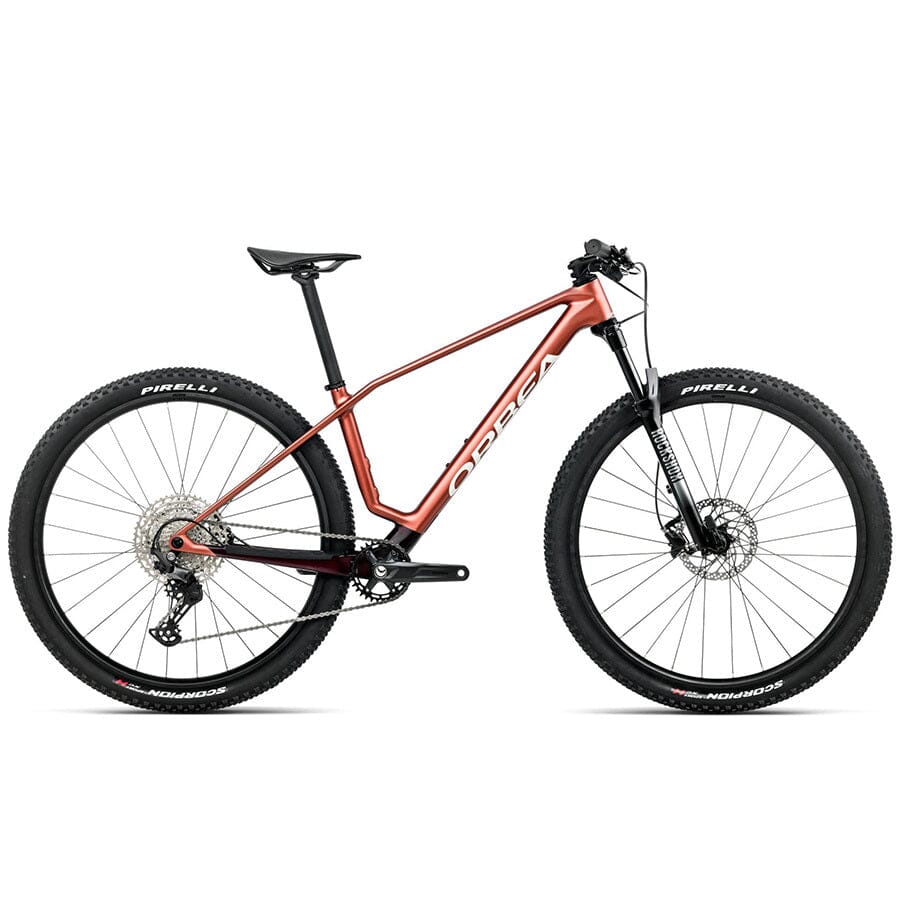

The Orbea Alma M50 is a high-performance hardtail mountain bike engineered for riders who demand speed, precision, and reliable control on every trail. Designed to excel in both competitive and recreational settings, the Alma M50 combines advanced carbon construction with thoughtfully optimized geometry to deliver a responsive, comfortable, and capable ride across varied terrain.
Built around Orbea’s lightweight carbon frame, the Alma M50 balances stiffness and compliance to absorb trail vibrations while maintaining sharp handling and powerful acceleration. The carefully designed rear triangle maximizes vertical compliance for comfort without sacrificing lateral rigidity, ensuring your energy is efficiently transferred to the rear wheel with minimal loss.
The bike features a RockShox Judy fork with 2-position adjustment, providing smooth, controlled suspension that adapts to changing trail conditions. The Shimano Deore 12-speed drivetrain delivers precise, reliable shifting across a wide gear range, while Shimano hydraulic disc brakes offer confident stopping power in any situation. Completing the package, the alloy wheels paired with tubeless-ready Pirelli Scorpion Sport XC tires ensure traction, durability, and performance across hardpack, roots, and rocky terrain.
Key Features:
- Frame – Orbea Alma Carbon frame
- Fork – RockShox Judy Silver TK 110mm Fork.
- Drivetrain – Shimano Deore SGS Shadow Plus 12 speed
- Wheels & Tires – Alloy 26c TLR rims with Pirelli Scorpion Sport XC 2.40" tires.
| Category | Specification |
|---|---|
| Frame | Orbea Alma Carbon, Boost 12x148, Internal Cable Routing |
| Fork | RockShox Judy Silver TK 110 Remote, 15x110 Boost |
| Steerer Tube | Alloy 1-1/2", Black Oxidated Bearing |
| Crankset | Shimano MT512, 32T |
| Shifters | Shimano Deore M6100 |
| Cassette | Shimano CS-M6100, 10-51T, 12-Speed |
| Rear Derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Chain | Shimano M6100 |
| Handlebar | Alloy, 31.8mm, Flat, 740mm, 9° Sweep |
| Stem | Alloy Forged, -7° |
| Brakes | Shimano MT201 Hydraulic Disc |
| Wheels | Alloy, 26c, 28H, Tubeless Ready (TLR) |
| Tires | Pirelli Scorpion Sport XC H 2.40", 60 TPI ProWall/TLR |
| Seatpost | SP04 Alloy, Forged Head, 31.6mm, 0mm Setback |
| Saddle | Selle Italia Model X Greentech |
| Remote Lockout | RockShox PopLoc |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 390 | 410 | 455 | 495 |
| Top Tube (EFF) | 564 | 594 | 620 | 648 |
| Head Tube | 100 | 100 | 105 | 115 |
| Chainstay | 425 | 425 | 425 | 425 |
| BB Drop | 65 | 65 | 65 | 65 |
| BB Height | 315 | 315 | 315 | 315 |
| Wheelbase | 1113 | 1143 | 1170 | 1190 |
| Head Angle | 67° | 67° | 67° | 67° |
| Seat Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| Rake | 44 | 44 | 44 | 44 |
| Standover | 794 | 797 | 811.6 | 829.4 |
| Reach | 405 | 435 | 460 | 485 |
| Stack | 618.5 | 618.5 | 623.1 | 632.3 |
| Fork Length | 520 | 520 | 520 | 520 |
