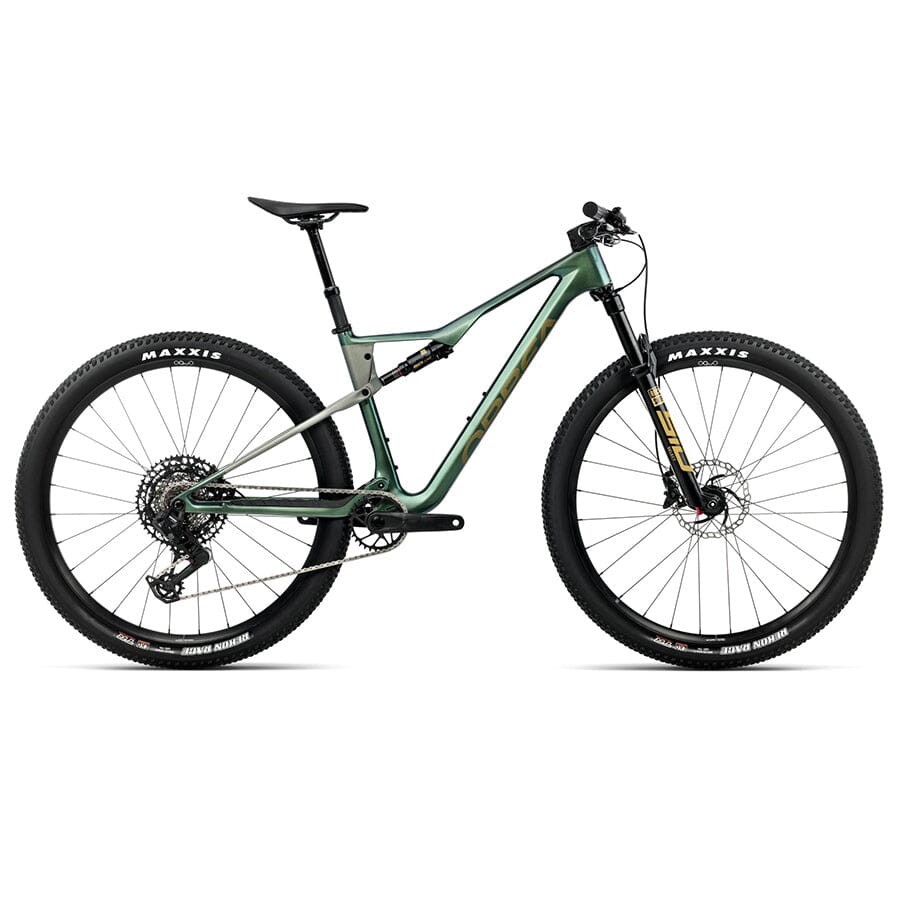

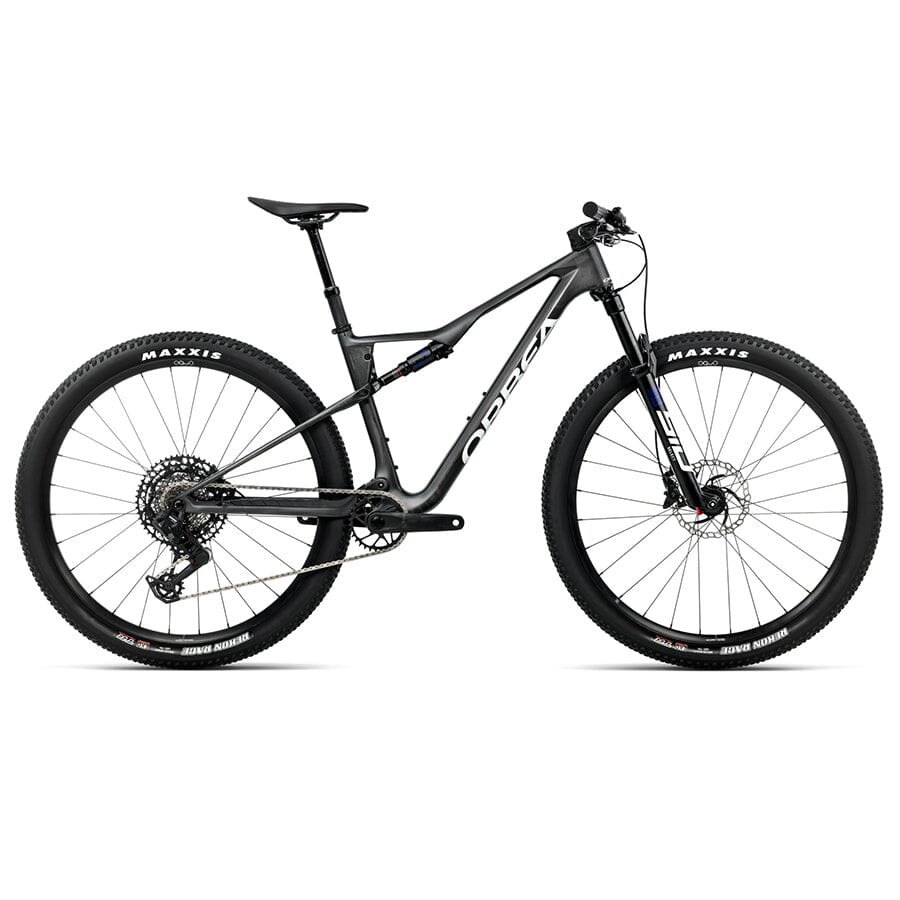

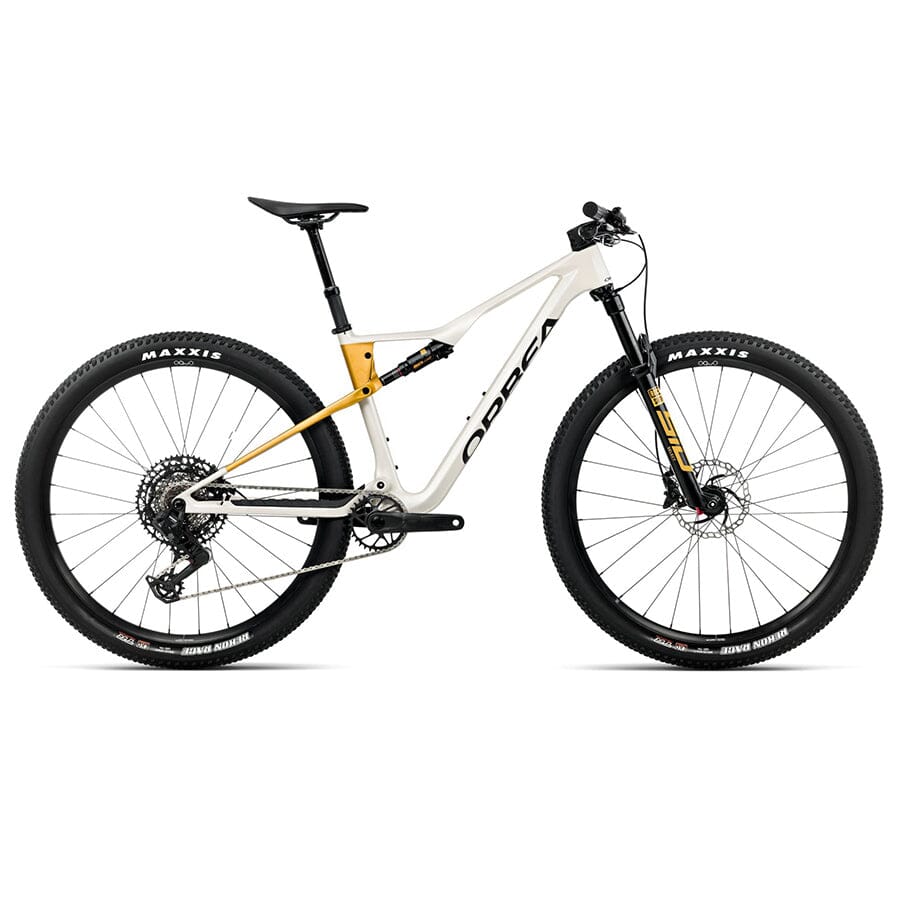

Orbea Oiz M21
Product Details
The Orbea Oiz M21 is a high-performance cross-country machine engineered for riders seeking speed, efficiency, and precise control across challenging terrain. Its Orbea Oiz Carbon OMR frame combines lightweight construction with advanced geometry to deliver exceptional responsiveness, stability, and durability on every ride.
The rear suspension is handled by a RockShox SID Select 120 DebonAir+ shock with 120mm of travel, custom-tuned for seamless adaptability. Up front, the RockShox SID Luxe Select+ fork with 120mm travel ensures precise handling in technical sections, providing the perfect balance of agility and control.
The Oiz M21’s drivetrain is powered by a range of SRAM components, offering smooth, reliable shifting and a wide gear range. The SRAM Eagle 70 Dub crankset with 32T chainring and Sram S1000 Eagle AXS Rear derailleur make climbs manageable while giving confidence on descents. Shimano M6100 hydraulic disc brakes provide consistent stopping power for total control in even the most technical conditions.
Rolling performance comes from the Oquo Mountain Performance MP28PRO wheels, paired with Maxxis Rekon Race 2.40” WT tires, which deliver a balanced mix of traction, speed, and durability across varied surfaces. The cockpit features Orbea’s OC Mountain Performance MP30 handlebar and OC Mountain Performance MP21 stem for an ergonomic setup, while the OC Squidlock MP11 remote lockout allows quick suspension and dropper adjustments mid-ride. Riders benefit from the Fizik Vento Argo X5 saddle and OC Mountain Control MC22 dropper seatpost, enabling optimal comfort and positioning across long rides.
The Orbea Oiz M21 is a finely tuned cross-country machine built for both competitive racing and ambitious trail adventures, blending precision engineering, lightweight performance, and versatility to help riders push their limits.
Key Features
- Frame: Orbea Oiz Carbon OMR
- Suspension: RockShox SID Luxe Select+ 3 Fork with RockShox SID Select 120 DebonAir+ Shock
- Drivetrain: Sram S1000 Eagle AXS
- Brakes: Shimano M6100 Hydraulic Disc
- Wheelset: Oquo Mountain Performance MP28PRO with Maxxis Rekon Race 2.40” WT Tires
| Specification | Detail |
|---|---|
| Frame | Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock |
| Shock | RockShox SID Luxe Select+ 3 position, 120mm, 190x45mm |
| Fork | RockShox SID Select 120 DebonAir+ RL 3-Position 15X110 Boost |
| Steerer Tube | Alloy 1-1/2", Black Oxidated Bearing |
| Crankset | Sram Eagle 70 Dub Black 32t |
| Shifters | Sram AXS Pod |
| Cassette | Sram XS-1270 Eagle 10-52t, 12-Speed |
| Rear Derailleur | Sram S1000 Eagle AXS |
| Chain | Sram GX Eagle 12-Speed |
| Handlebar | OC Mountain Performance MP30, Width 760 |
| Stem | OC Mountain Performance MP21, -6º |
| Brakes | Shimano M6100 Hydraulic Disc |
| Brakes Configuration | N/A |
| Wheels | Oquo Mountain Performance MP28PRO |
| Tires | Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Saddle | Fizik Vento Argo X5 Aluminium, 140mm |
| Grips | OC Lock On |
| Remote Lockout | OC Squidlock MP11, Suspension + Dropper |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 432 | 460 | 510 |
| Top Tube (EFF) | 575 | 598 | 623 | 650 |
| Head Tube | 90 | 90 | 100 | 115 |
| Chainstay | 432 | 432 | 432 | 432 |
| BB Height | 333 | 333 | 333 | 333 |
| BB Drop | 42 | 42 | 42 | 42 |
| Wheelbase | 1138 | 1163 | 1189 | 1219 |
| Head Angle | 67º | 67º | 67º | 67º |
| Seat Angle | 76.5º | 76.5º | 76.5º | 76.5º |
| Standover | 731 | 741 | 741 | 750 |
| Reach | 425 | 450 | 472 | 496 |
| Stack | 596 | 596 | 606 | 619 |
| Fork Length | 531 | 531 | 531 | 531 |
| Rake | 44 | 44 | 44 | 44 |
