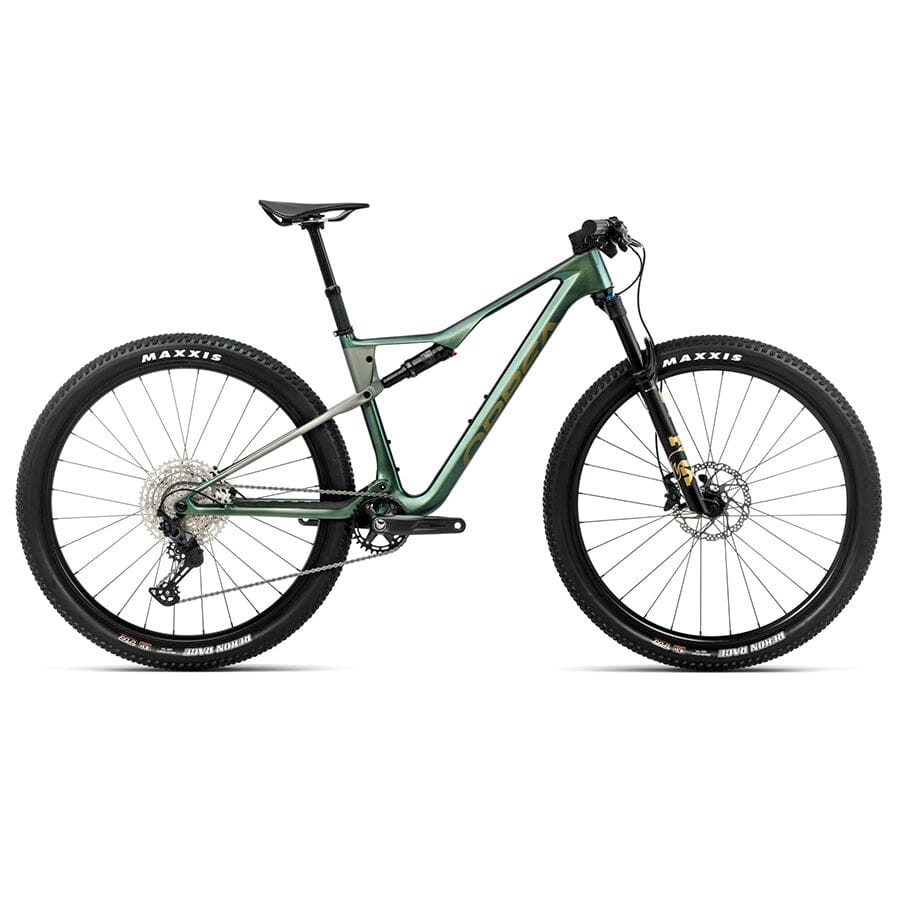

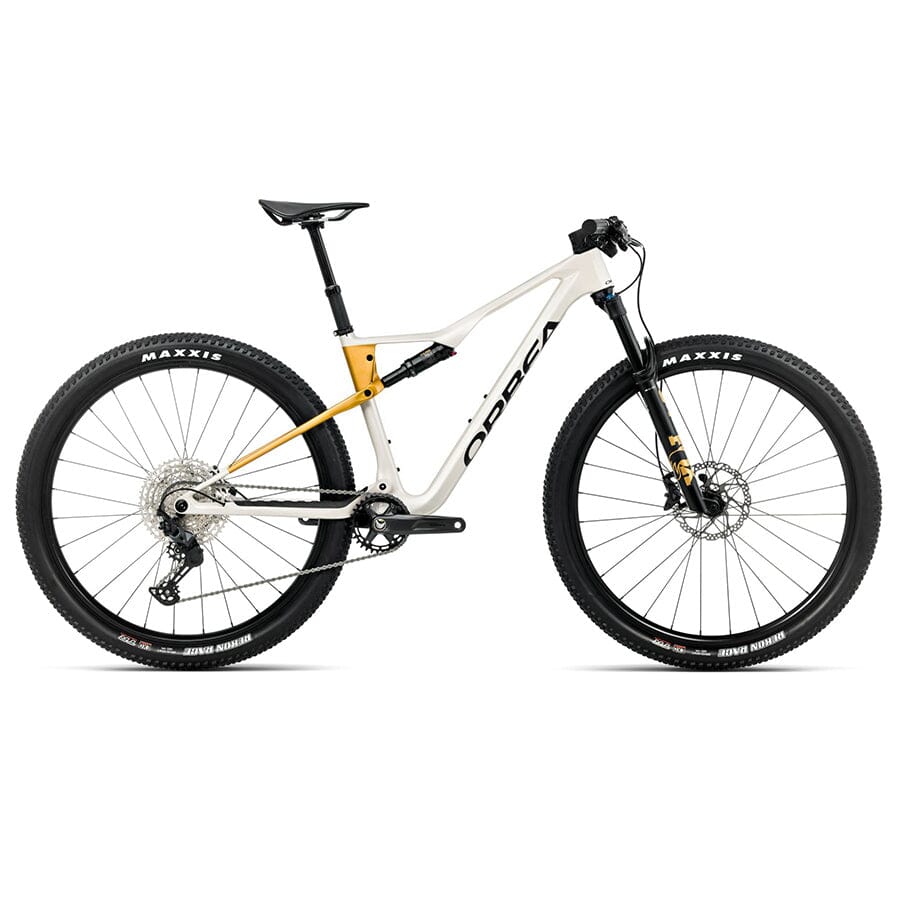

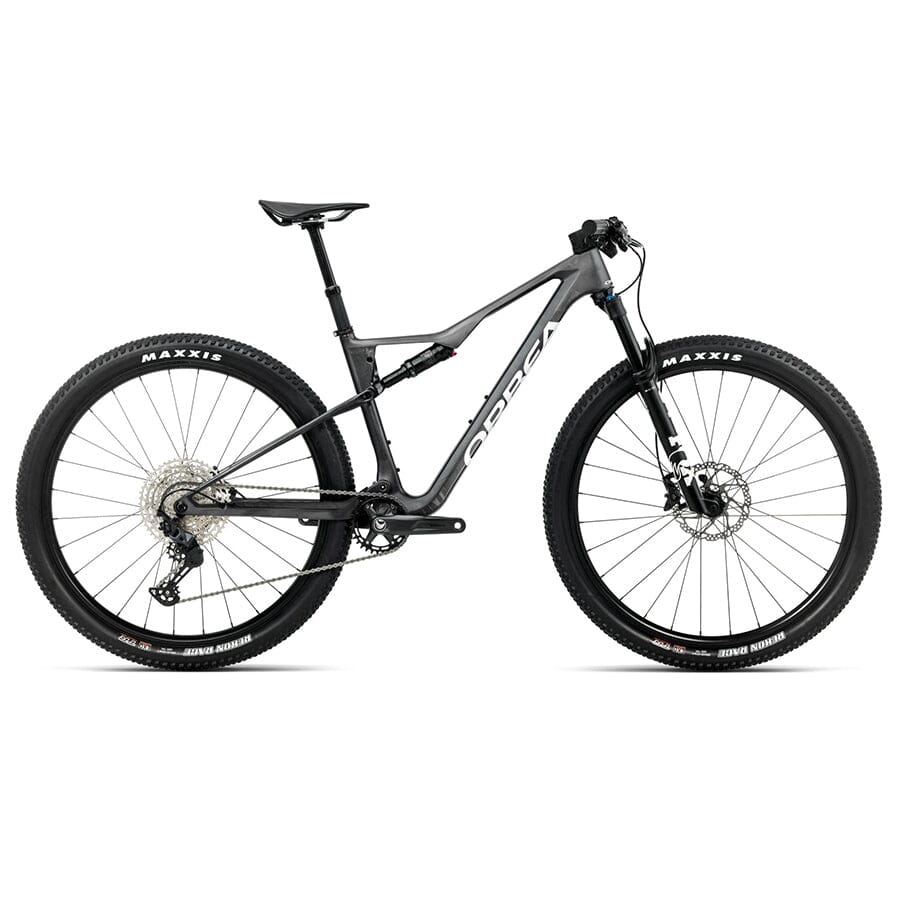

Orbea Oiz M30
Product Details
The Orbea Oiz M30 is a high-performance cross-country bike built for riders who demand speed, efficiency, and control on technical trails. Its lightweight Orbea Oiz Carbon OMR frame delivers exceptional durability while incorporating advanced geometry to enhance responsiveness, stability, and confidence on rugged terrain. The frame is paired with a Fox 34 Float SC Performance fork offering 120mm of travel with remote adjust, providing precise handling and control in tight corners and rocky sections. At the rear, the Fox Float SL Performance shock ensures smooth and adaptable suspension performance for varied trail conditions.
The Oiz M30 is equipped with Shimano SLX components, delivering reliable shifting and a broad gear range to make climbs easier and descents more controlled. The SLX M7100 12-speed drivetrain combined with the M7100 crankset ensures consistent, smooth performance, while Shimano hydraulic disc brakes provide dependable stopping power for maximum control on technical terrain. The Alloy Oquo Mountain Performance wheels paired with Maxxis Rekon Race 2.40” WT tires offer a balanced mix of speed, traction, and stability, allowing confident handling across different surfaces.
The cockpit features OC Mountain Performance MP30 handlebars and MP21 stem, designed for an ergonomic, uncluttered setup. Integrated controls, including the OC Squidlock remote, allow for easy suspension adjustments on the fly. Comfort and adaptability are further enhanced with the Selle Italia Model X Greentech and OC Mountain Control MC22 Dropper, enabling riders to maintain optimal positioning on long rides or technical terrain.
The Orbea Oiz M30 is a versatile cross-country machine that blends precision engineering with trail-ready performance. Whether racing or exploring challenging singletrack, it provides the speed, agility, and control riders need to tackle any adventure.
Key Features
- Frame: Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
- Suspension: Fox 34 Float SC Performance Fork (120mm), Fox Float SL Performance Rear Shock
- Drivetrain: Shimano SLX 12-Speed
- Wheelset: Alloy Oquo Mountain Performance MP30TEAM, Maxxis Rekon Race 2.40” WT tires
| Specification | Detail |
|---|---|
| Frame | Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock |
| Shock | Fox Float SL Performance 120mm Remote Push-lock Evol custom tune 190x45mm |
| Fork | Fox 34 Float SL Performance 120, Grip, Remote Push to Lock, QR15x110 |
| Steerer Tube | Alloy 1-1/2", Black Oxidated Bearing |
| Crankset | Shimano MT511 32t |
| Shifters | Shimano Deore M6100 I-Spec EV |
| Cassette | Shimano CS-M6100 10-51t, 12-Speed |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus |
| Chain | Shimano M6100 |
| Handlebar | OC Mountain Performance MP30, Width 760 |
| Stem | OC Mountain Performance MP21, -6º |
| Brakes | Shimano M6100 Hydraulic Disc |
| Brakes Configuration | N/A |
| Wheels | Alloy, 26c, 28H, TLR |
| Tires | Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Saddle | Selle Italia Model X Greentech |
| Grips | OC Lock On |
| Remote Lockout | OC Squidlock MP11, Suspension + Dropper |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 432 | 460 | 510 |
| Top Tube (EFF) | 575 | 598 | 623 | 650 |
| Head Tube | 90 | 90 | 100 | 115 |
| Chainstay | 432 | 432 | 432 | 432 |
| BB Height | 333 | 333 | 333 | 333 |
| BB Drop | 42 | 42 | 42 | 42 |
| Wheelbase | 1138 | 1163 | 1189 | 1219 |
| Head Angle | 67º | 67º | 67º | 67º |
| Seat Angle | 76.5º | 76.5º | 76.5º | 76.5º |
| Standover | 731 | 741 | 741 | 750 |
| Reach | 425 | 450 | 472 | 496 |
| Stack | 596 | 596 | 606 | 619 |
| Fork Length | 531 | 531 | 531 | 531 |
| Rake | 44 | 44 | 44 | 44 |
