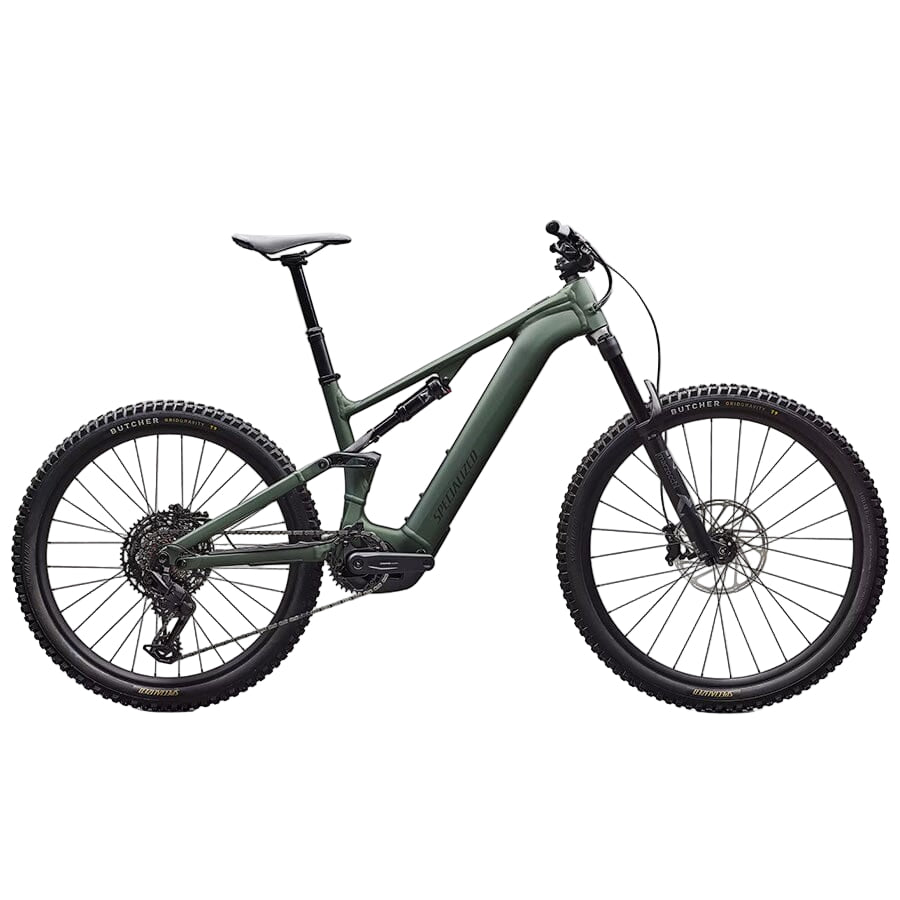

Specialized Turbo Levo 4 Alloy
Product Details
The Specialized Turbo Levo 4 Alloy is an electric mountain bike engineered to transform riders through the combination of power, control, traction, and range. Born from over 40 years of trail-bike expertise, this SuperNatural ride experience dominates any off-road terrain with advanced engineering designed by riders, for riders.
The premium M5 alloy frame delivers 150mm of optimized rear travel paired with adjustable geometry for personalized control. The frame features the first-of-its-kind electric mountain bike SWAT downtube storage, providing weather-resistant capacity for trailside repair essentials while maintaining clean aesthetics. Specialized's S-Sizing allows riders to choose the frame size that best suits their riding style rather than inseam, ensuring optimal fit and handling characteristics.
The Specialized 3.1 Motor delivers 666 watts and 101 Nm of torque with SuperNatural power delivery that amplifies rider input with precise, natural responsiveness. This advanced motor provides 14% more peak power than its predecessor, enabling mastery of low-speed technical terrain and challenging climbs. In controlled testing, the Levo 4's traction control prevented failures on difficult climbs where the nearest competitor failed twice as often.
Extended range capability reaches up to 5.33 hours through the modular 840Wh battery system, industry-leading mechanical and electrical efficiency, and optional 280Wh Range Extender compatibility. The Super Charger delivers 0–80% charge in under an hour, while the MasterMind display with largest, highest-resolution e-bike screen provides seamless data visualization and Bluetooth integration. Micro Tune adjustment allows real-time power output customization in 10% increments for maximum control.
Perfect for riders demanding superb off-road performance with premium control and efficiency, the Levo 4 Alloy combines mixed-wheel geometry (27.5" rear for maneuverability, 29" front for rollover capability), Marzocchi suspension with EVOL air technology, and SRAM GX Eagle T-Type mechanical shifting for versatile trail capability.
Key Features
- Frame: Premium M5 Alloy with Adjustable Geometry and SWAT Downtube Storage
- Motor: Specialized 3.1 Motor (666W, 101Nm) with SuperNatural Power Delivery
- Battery: 840Wh Modular System
- Suspension: 160mm Marzocchi Bomber Z1 Fork with Marzocchi Bomber Inline EVOL Shock
- Drivetrain: SRAM GX Eagle T-Type Mechanical
- Wheelset: Specialized 29/27.5 Alloy Rims and Hubs
| Category | Specification |
|---|---|
| Motor | Specialized 3.1 Motor, 101Nm torque, 666Nm power |
| Battery | 840Wh battery |
| UI/Remote | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizable with Specialized app |
| Charger | Specialized 4amp charger |
| Frame | All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage, 148mm spacing, 29" front wheel / 27.5" rear wheel, fork travel up to 180mm |
| Seat Binder | Alloy, 38.6mm |
| Rear Shock | Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm |
| Fork | Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression |
| Front Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor |
| Rear Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor |
| Shift Levers | SRAM 70 trigger, 12-speed, single click |
| Rear Derailleur | SRAM Eagle 70 T-Type |
| Cassette | XS-1270, 12-speed, 10-52t |
| Chain | SRAM Eagle 70 T-Type Flattop Chain |
| Crankset | SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm |
| Chainrings | SRAM 34t T-Type chainring, 104 BCD, steel |
| Rims | Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4" |
| Inner Tubes | Standard, Presta valve |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6: 800mm width |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| SeatPost | TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm, S4-S5: 170mm, S6: 200mm |
| SWAT | SWAT internal downtube storage |
| Weight | 57 lb, 7.8 oz-Size S4 |
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Crank Length | 155mm | 155mm | 155mm | 155mm | 155mm | 155mm |
| Handlebar Width | 780mm | 780mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 100mm | 125mm | 150mm | 170mm | 200mm | 200mm |
| Stack | 609mm | 618mm | 626mm | 638mm | 652mm | 667mm |
| Reach | 407mm | 435mm | 455mm | 480mm | 505mm | 535mm |
| Headtube Length | 94mm | 95mm | 103mm | 117mm | 132mm | 149mm |
| Headtube Angle | 64° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 355mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| BB Drop | 24.13mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm |
| Trail | 132mm | 132mm | 137mm | 132mm | 132mm | 132mm |
| Fork Length (full) | 567mm | 577mm | 577mm | 577mm | 577mm | 577mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 744mm | 765mm | 789mm | 820mm | 851mm | 888mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1179mm | 1200mm | 1223mm | 1254mm | 1286mm | 1323mm |
| Top-tube Length (horizontal) | 556mm | 578mm | 599mm | 627mm | 655mm | 689mm |
| Bike Standover Height | 753mm | 753mm | 754mm | 753mm | 758mm | 761mm |
| Seat Tube Length | 379mm | 390mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 76° | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 645mm | 690mm | 735mm | 780mm | 825mm | 870mm |
| Max Seatpost Insertion | 264mm | 274mm | 289mm | 313mm | 337mm | 357mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
