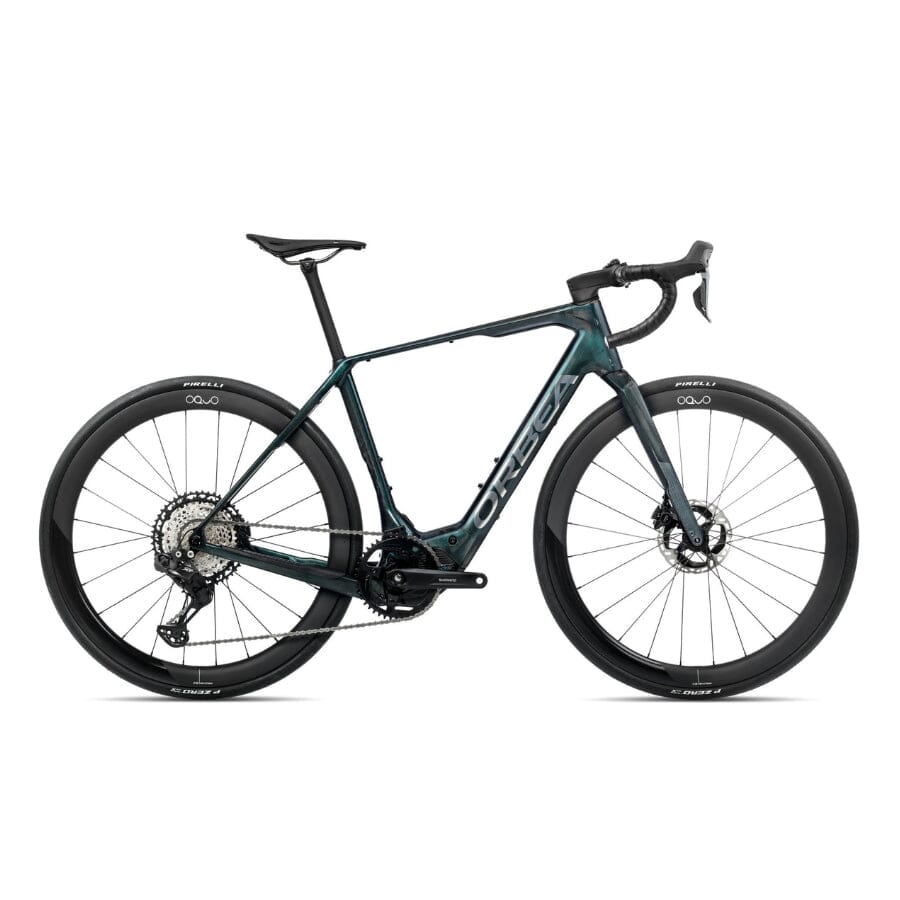

Orbea Denna M10i 20mph 2025
Product Details
The Orbea Denna M10i 20mph 2025 is designed for riders who believe the best adventures never end, with something exciting always waiting just around the corner or over the next hill. This electric gravel bike is all about removing limits, offering gravel-tuned assistance that delivers power for the steepest climbs, traction for the loosest surfaces, and range for the longest rides. No matter the terrain, wide tire clearance and a frame designed for smooth riding make big days in the saddle a pure pleasure.
Built around Orbea's advanced frame construction with strategic absorption points, the Denna M10i delivers controlled flex that adapts to rough surfaces without sacrificing composure or draining energy. The specially shaped frame at key points allows vertical flex to absorb bumps and trail chatter while resisting lateral flex, ensuring pedaling efficiency and precise handling remain uncompromised. Orbea's gravel-specific geometry features a shorter seat tube for optimized vibration absorption, balanced chainstay length, and a lower bottom bracket for enhanced stability on rough surfaces.
The heart of the Denna M10i lies in its Shimano EP801 motor paired with Orbea's advanced 420Wh internal battery, delivering exceptional range for extended adventures. The wireless Shimano XT Di2 M8150 12-speed drivetrain provides precise, reliable shifting without cables, while the 50C tire clearance accommodates everything from narrow road tires to wide mountain bike rubber for maximum versatility across varied terrain.
Perfect for riders seeking to break free from preconceived limits and explore endless new adventures, the Denna M10i combines powerful electric assistance with balanced weight distribution and smart geometry. Whether tackling smooth gravel roads or venturing into the wildest places, this bike unlocks possibilities and makes every horizon beckoning with potential.
Key Features
- Frame - Orbea Denna with Thru Axle 12mm x 142mm and Internal Cable Routing
- Motor - Shimano EP801 with Orbea Internal 420Wh Battery
- Drivetrain - Shimano XT Di2 M8150 12-Speed Wireless
- Wheelset - Oquo Road Performance RP45TEAM
| Specification | Detail |
|---|---|
| Frame | Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing |
| Fork | Orbea Denna OMR ICR, full carbon, 1-1/8” - 1.5” tapered head tube compatible, Thru axle 12x100mm, thread M12xP1 |
| Chainring | Alloy EP8 42t |
| Crank | Shimano Steps EM600 |
| Headset | FSA 1-1/2” Integrated Aluminium Cup |
| Handlebar | OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole / Easton EC90 AX Carbon, flare 16º, Di2 internal routing |
| Handlebar Plugs | Lizard DSP 2.5mm |
| Stem | OC Road Performance RP10, -8º / OC Road Performance RP22, -5º |
| Shifters | Shimano R9270 |
| Brakes | Shimano R9270 Hydraulic Disc |
| Rear Derailleur | Shimano XT Di2 M8150 12s SGS Shadow Plus |
| Chain | Shimano M6100 |
| Wheels | Oquo Road Performance RP45TEAM |
| Cassette | Shimano CS-M8100 10-51t 12-Speed |
| Rear Hub | Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
| Front Hub | Orbea Thru Axle 12x100mm M12xP1 Hollow |
| Tyres | Pirelli P ZERO Race X SmartEVO TLR 700x30c |
| Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Saddle | Selle San Marco Shortfit 2.0 Start Up Off Road Xilite |
| Mudguard | N/A |
| Chainguide | Orbea eBike chainguide |
| Motor | Shimano EP801 |
| Battery | Orbea Internal 420Wh |
| Range Extender | N/A |
| Display | N/A |
| Remote | EN600-L |
| Charger | Orbea 2nd Generation eBike Smart charger 42V/2-4A |
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) (mm) | 405 | 438 | 471 | 504 | 537 | 570 |
| Top Tube (EFF) (mm) | 531 | 542 | 558 | 570 | 587 | 599 |
| Head Tube (mm) | 110 | 131 | 152 | 178 | 199 | 220 |
| Chainstay (mm) | 425 | 425 | 425 | 425 | 425 | 425 |
| BB Drop (mm) | 78 | 78 | 78 | 76 | 76 | 76 |
| BB Height (mm) | 284.5 | 284.5 | 284.5 | 286.5 | 286.5 | 286.5 |
| Wheelbase (mm) | 1030 | 1033 | 1040 | 1054 | 1061 | 1068 |
| Head Angle | 70° | 70.5° | 71° | 71° | 71.5° | 72° |
| Seat Angle | 74.5° | 74° | 73.5° | 73.5° | 73° | 73° |
| Standover (mm) | 738 | 765 | 792 | 819 | 846 | 873 |
| Reach (mm) | 390 | 390 | 395 | 400 | 405 | 410 |
| Stack (mm) | 526 | 548 | 570 | 592 | 614 | 636 |
| Fork Length (mm) | 390 | 390 | 390 | 390 | 390 | 390 |
| Trail Length (mm) | 73 | 70 | 67 | 67 | 63 | 60 |
