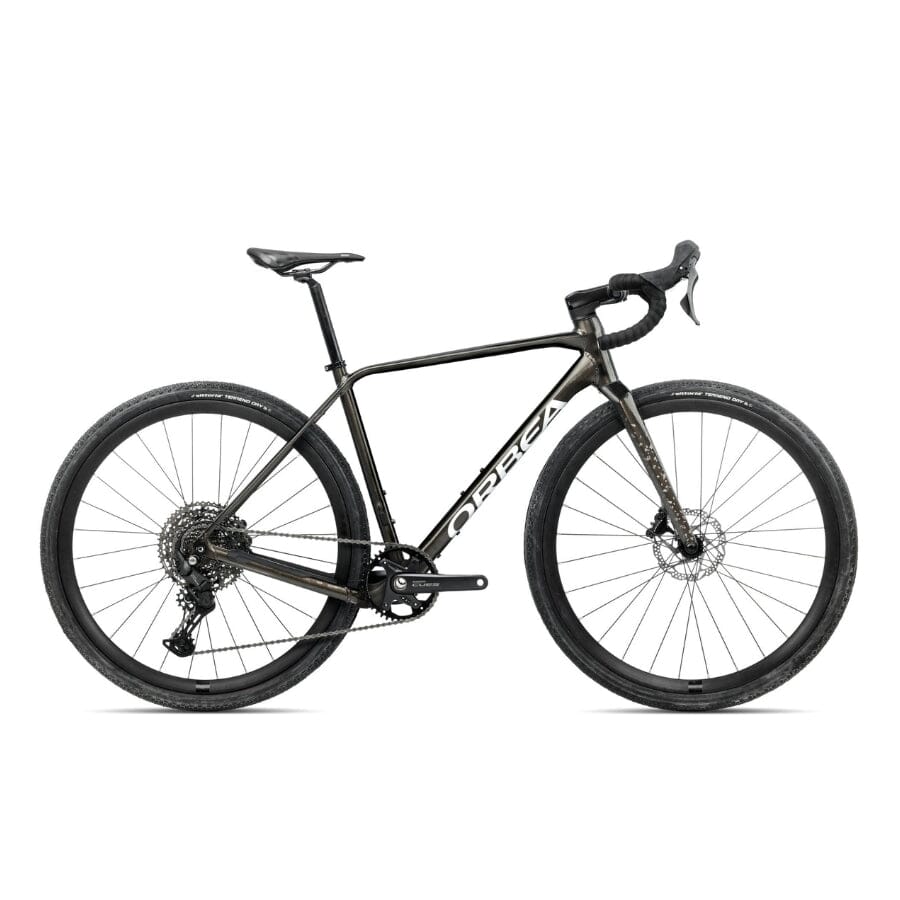

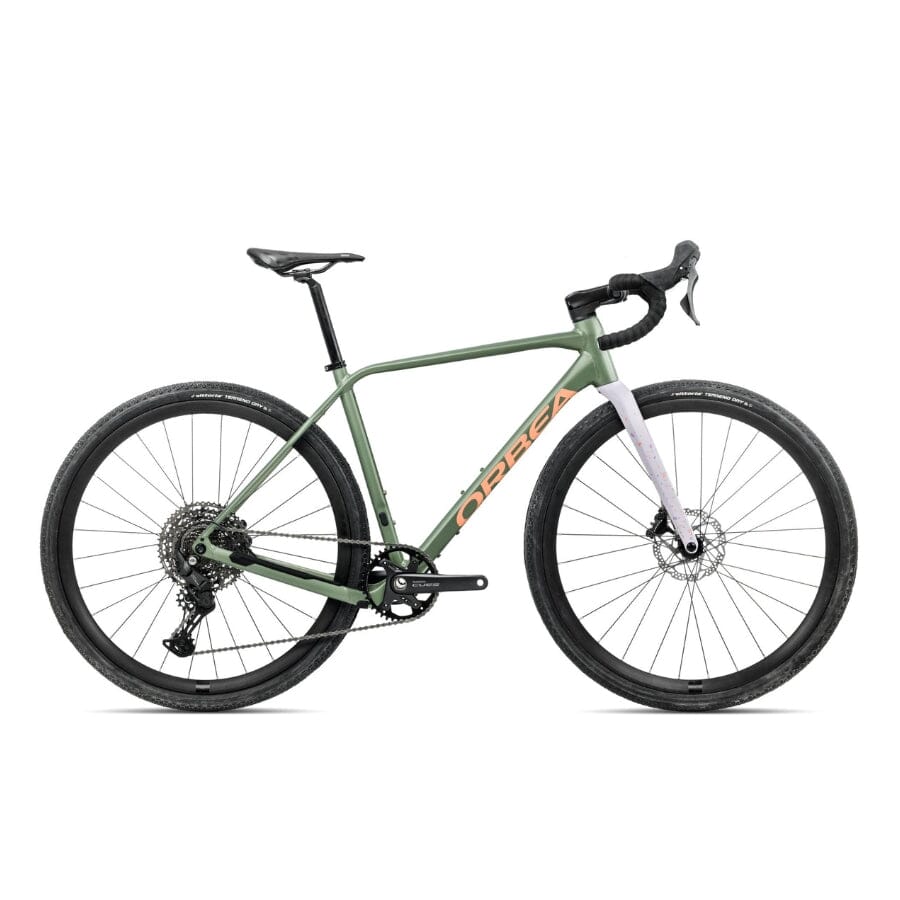

Orbea Terra H45 1X 2025
Product Details
The 2025 Orbea Terra H45 1X is a premium gravel bike designed for riders who seek versatility, performance, and reliable technology at an accessible price point. At its core is the lightweight Orbea Terra Hydro disc frame, expertly crafted with hydroformed triple-butted aluminum construction that delivers exceptional strength, responsiveness, and durability. The frame features integrated cable routing and thoughtful design details that ensure clean aesthetics and reliable performance across diverse terrains.
Paired with the Orbea Terra ICR full carbon fork, this bike delivers precise handling and stability whether navigating technical gravel sections or cruising on smooth pavement. The carbon fork absorbs road vibration while maintaining steering precision, creating a comfortable yet responsive ride quality that excels across varied surfaces.
The reliable Shimano Cues U6000 GS Shadow drivetrain provides smooth, dependable shifting with the simplicity of a 1X setup that eliminates front derailleur complexity while maintaining an optimal gear range for gravel adventures. The alloy tubeless-ready 700c wheelset with 21c internal width offers excellent tire support and the option to run lower pressures for improved traction and comfort on rough terrain.
Designed for comfort and control during long gravel expeditions, the Terra H45 1X features thoughtful geometry and component selection that prioritizes all-day riding comfort without sacrificing performance. Whether exploring remote gravel paths, tackling technical terrain, or logging training miles on mixed surfaces, this bike delivers the reliability and capability needed to venture further with confidence.
Perfect for riders seeking premium gravel performance with proven aluminum construction, the Orbea Terra H45 1X offers exceptional value and the versatility to handle whatever adventure lies ahead.
Key Features
- Frame – Orbea Terra Hydro Disc Hydroformed Triple-Butted Aluminum
- Fork – Orbea Terra ICR Full Carbon
- Drivetrain – Shimano Cues U6000 GS Shadow 1X
- Wheelset – Alloy Tubeless-Ready 700c with 21c Internal Width
| Specification | Detail |
|---|---|
| Frame | Orbea Terra Hydro Disc, hydroformed triple-butted aluminum, HS 1.5", PF, Thru Axle 12x142mm (M12x2 P1), DT internal cable routing, 27.2mm seat tube, MMS system |
| Fork | Orbea Terra ICR, full carbon, 1-1/8" – 1.5" tapered head tube compatible, Thru Axle 12x100mm (M12x2 P1) |
| Steerer Tube | FSA 1-1/2" Integrated Aluminum Cup |
| Crankset | Shimano Cues U6040, 40T |
| Shifters | Shimano U6030 |
| Cassette | Shimano CS-LG400, 11-50T, 11-Speed |
| Rear Derailleur | Shimano Cues U6000 GS Shadow |
| Chain | Shimano LG500 |
| Handlebar | OC Gravel GR31-R, Rise 15, Reach 70, Drop 110 |
| Stem | OC Road Performance RP22, -5º |
| Brakes | Shimano U6030 Hydraulic Disc |
| Wheels | Alloy, Tubeless, 700c, 21c |
| Tires | Vittoria Terreno Dry Gravel, 700x38c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm, M12x2 P1 Solid |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm, M12x2 P1 Solid inner threaded |
| Seatpost | SP 0.2 Carbon, 27.2mm, Setback 20 |
| Saddle | Prologo Akero AGX, black rails, size 155mm |
| Handlebar Tape | Orbea EVA |
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 438 | 471 | 504 | 537 | 570 |
| Top Tube (EFF) | 526 | 539 | 558 | 570 | 590 | 603 |
| Head Tube | 110 | 131 | 152 | 178 | 199 | 220 |
| Chainstay | 420 | 420 | 420 | 420 | 420 | 420 |
| BB Height | 263/278 | 263/278 | 263/278 | 265/280 | 265/280 | 265/280 |
| BB Drop | 78 | 78 | 78 | 76 | 76 | 76 |
| Wheelbase | 1009 | 1019 | 1029 | 1044 | 1053 | 1062 |
| Head Angle | 70º | 70,5º | 71º | 71º | 71,5º | 72º |
| Seat Angle | 74º | 74º | 73,5º | 73,5º | 73º | 73º |
| Standover | 713/727 | 746/755 | 768/783 | 798/813 | 825/840 | 853/868 |
| Reach | 375 | 382 | 389 | 395 | 402 | 409 |
| Stack | 526 | 548 | 570 | 592 | 614 | 636 |
| Fork Length | 390 | 390 | 390 | 390 | 390 | 390 |
| Trail Length | 66/71 | 62/68 | 59/64 | 59/64 | 56/61 | 53/58 |
