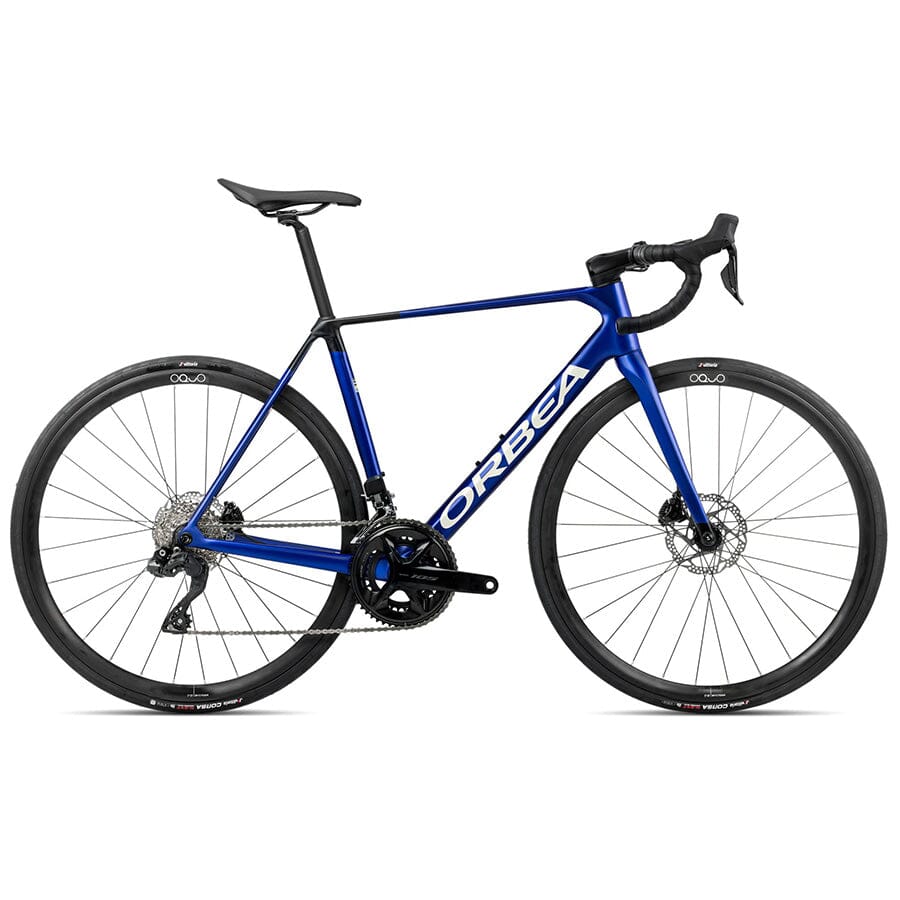

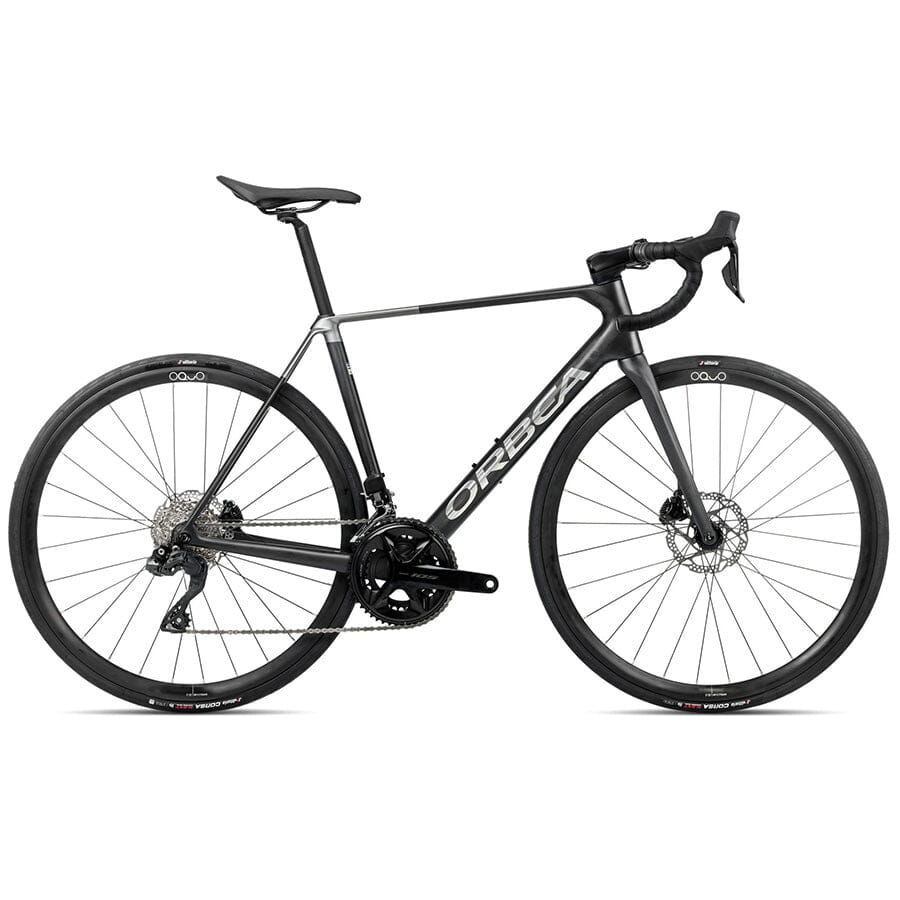

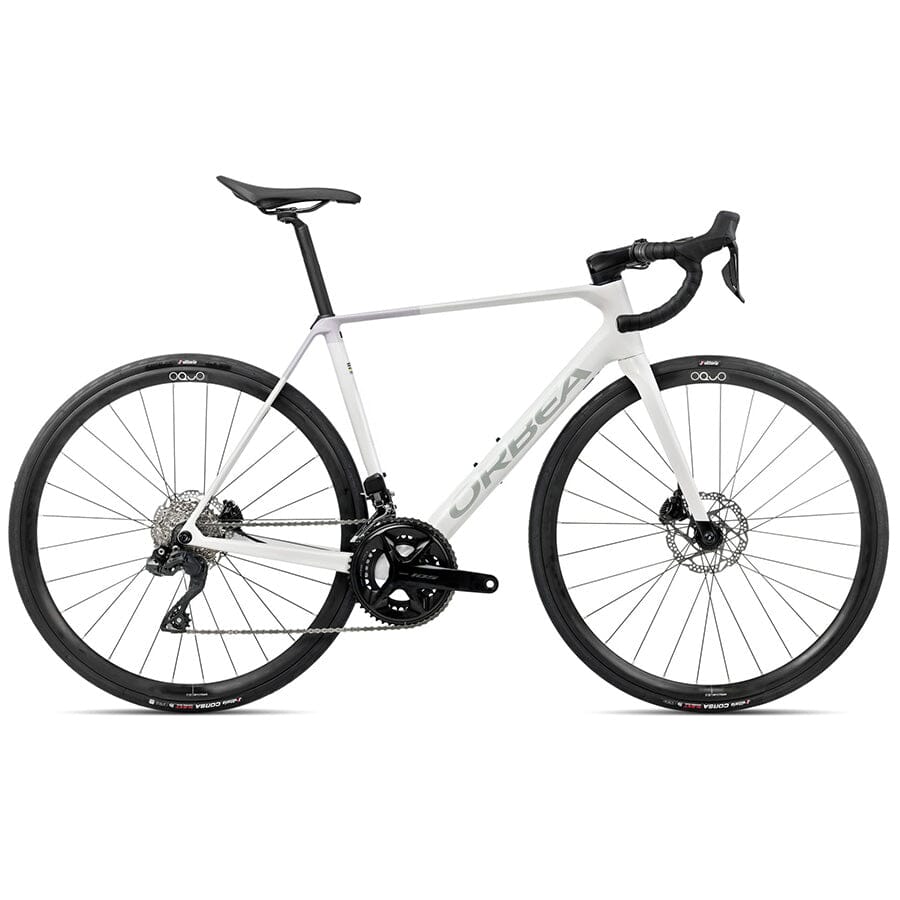

Orbea Orca M35i
Product Details
The Orbea Orca M35i represents a remarkable evolution in road bike design, crafted specifically for riders who demand the ultimate climbing machine. While many bikes cater to aerodynamics or endurance, this 7th-generation Orca dedicates itself to delivering exceptional climbing performance through superior power transfer, agile handling, effective vibration damping, and impressively lightweight construction.
Celebrating two decades of Orca innovation, this latest version achieves climbing prowess through advanced engineering that minimizes overlaps in the carbon frame layup while carefully shaping the frame to eliminate unnecessary material accumulation. Orbea maintains weight discipline without sacrificing strength, selecting components like the OC Performance cockpit and newly developed Oquo wheels that complement the lightweight philosophy. Every detail from paint to frame hardware is handled at Orbea's Basque Country headquarters, ensuring precise control over factors affecting overall weight.
Lightweight construction alone doesn't guarantee performance, the Orca delivers through superior stiffness-to-weight ratio, responsive handling, and quick acceleration. Slightly shorter chainstays enhance maneuverability, while rounder tube shapes absorb vibrations to reduce rider fatigue and improve comfort across varied terrain. With clearance for tires up to 32mm, the Orca provides versatility for different riding conditions while maintaining its climbing-focused character.
Thoughtful aerodynamic integration enhances performance without compromising weight or ride quality. The ICR cable routing system minimizes drag, while the new seat clamp mechanism reduces surface area for improved aerodynamics. With the OMR carbon frame, Shimano 105 Di2 12-speed electronic shifting, and Oquo Road Performance wheels, the Orca M35i blends Orbea's rich heritage with cutting-edge technology for riders who prioritize climbing excellence.
Key Features
- Frame: Orbea Orca Carbon OMR with Optimized Layup and ICR Cable Routing
- Drivetrain: Shimano 105 Di2 12-Speed Electronic
- Wheelset: Oquo Road Performance RP35TEAM
| Specification | Detail |
|---|---|
| Frame | Orbea Orca carbon OMR 2026, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
| Fork | Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1. |
| Steerer tube | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | Shimano 105 R7100 34x50t |
| Shifters | Shimano Di2 R7170 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Rear derailleur | Shimano 105 Di2 R7150 |
| Front derailleur | Shimano 105 Di2 R7150 |
| Chain | Shimano M6100 |
| Handlebar | OC Road Performance RP31, Reach 80, Drop 125 |
| Stem | OC Road Performance RP23, -5º |
| Brakes | Shimano R7170 Hydraulic Disc |
| Brakes Configuration | N/A |
| Wheels | Oquo Road Performance RP35TEAM |
| Tyres | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12x2 P1 Hollow |
| Seatpost | SP 0.2 Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Aliante R5 |
| Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
| Storage | OC Toolbox TB02PP |
| Frame Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Top Tube (EFF) | 510.3 mm | 522.7 mm | 535.9 mm | 548.5 mm | 560.4 mm | 576.1 mm | 590 mm |
| Head Tube | 110.5 mm | 118.2 mm | 134.6 mm | 152.9 mm | 173.1 mm | 191.2 mm | 218.3 mm |
| Chainstay | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| BB Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| BB Height | 268.5 mm | 268.5 mm | 268.5 mm | 270.5 mm | 270.5 mm | 270.5 mm | 270.5 mm |
| Wheelbase | 971.8 mm | 975.4 mm | 980 mm | 981.2 mm | 991.4 mm | 1001.9 mm | 1015.6 mm |
| Head Angle | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Seat Angle | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover | 736.5 mm | 748.5 mm | 767.5 mm | 788.5 mm | 808.5 mm | 826.5 mm | 852.5 mm |
| Reach | 370 mm | 375 mm | 380 mm | 385 mm | 391 mm | 398 mm | 404 mm |
| Stack | 506 mm | 515 mm | 533 mm | 552 mm | 572 mm | 590 mm | 616 mm |
| Fork Length | 365 mm | 365 mm | 365 mm | 365 mm | 365 mm | 365 mm | 365 mm |
| Trail | 66 mm | 62.8 mm | 58.4 mm | 59.9 mm | 58.7 mm | 57.4 mm | 57.4 mm |
