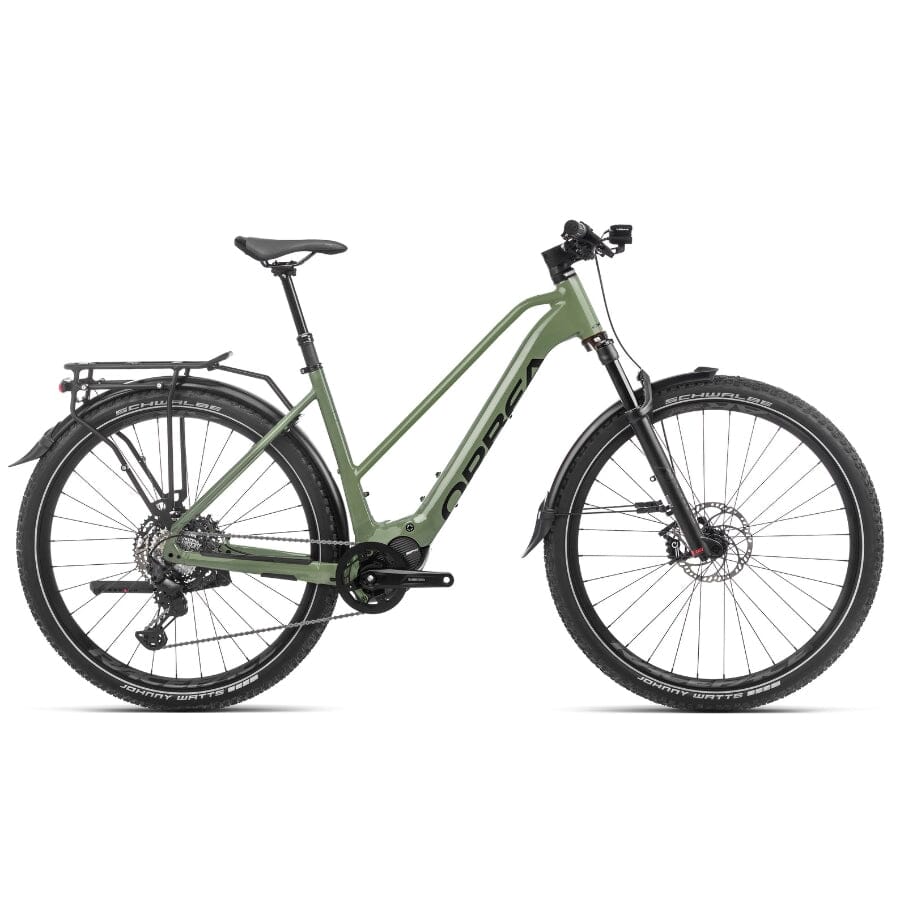

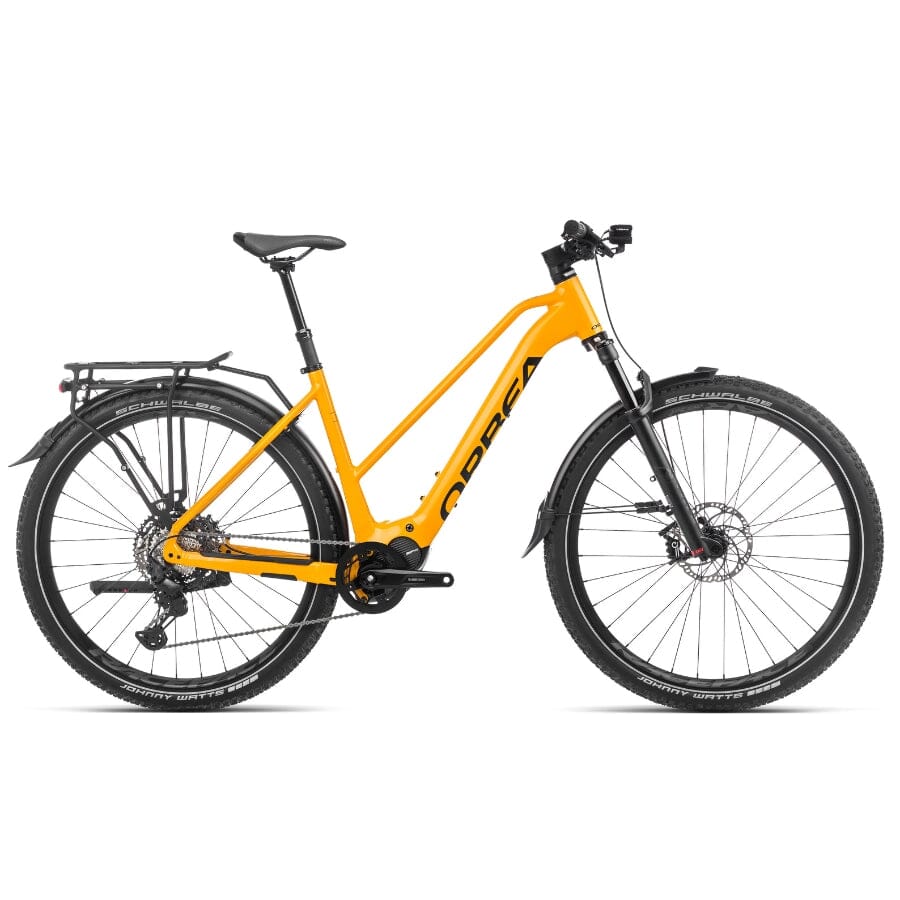

Orbea Kemen Mid SUV 10 20mph 2023
Product Details
The Orbea Kemen Mid SUV 10 20mph 2023 is engineered for riders who demand versatility without compromise, seamlessly bridging the gap between urban utility and trail adventure. This comprehensive electric bike platform prioritizes practical functionality while maintaining the performance characteristics needed for serious off-road exploration, creating a single solution for riders who refuse to limit their cycling experiences to one terrain type.
Built around Orbea's hydroformed alloy 6061 frame with integrated battery design, the Kemen MID SUV 10 features thoughtful details that enhance real-world usability. The low-step frame geometry ensures effortless mounting and dismounting for riders of all abilities, while integrated mudguards and lighting systems provide essential weather protection and visibility. Carrier and kickstand compatibility transform this electric bike into a genuine utility vehicle capable of handling daily transportation needs alongside recreational adventures.
The powerful Shimano EP8 motor paired with Orbea's substantial 540Wh internal battery delivers consistent assistance across varied terrain. The premium Fox 34 Float AWL fork with 100mm of travel provides superior ride quality and control on challenging surfaces, while the Shimano XT M8130 drivetrain ensures reliable shifting performance under load. Magura MT5 E-STOP hydraulic disc brakes with Easy Route Connection offer precise stopping power optimized for electric bike applications.
Perfect for riders seeking a single bike solution that excels in multiple environments, the Kemen MID SUV 10 combines expedition-level capability with everyday practicality. The Race Face AR 30c tubeless-ready wheelset and comprehensive integration of essential accessories create a platform ready for any adventure, whether navigating city streets or exploring remote trails.
Key Features
- Frame: Orbea Kemen MID Hydroformed Alloy 6061 with Integrated Battery
- Suspension: Fox 34 Float AWL 100mm Fork with QR15x110
- Motor: Shimano EP8 with Orbea Internal 540Wh Battery
- Drivetrain: Shimano XT M8130 Link Glide SGS with Magura MT5 E-STOP Brakes
- Wheelset: Race Face AR 30c Tubeless Ready Wheels
- Additional Features: Integrated lights, rack and fenders.
| Specification | Detail |
|---|---|
| Frame | Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible |
| Fork | Fox 34 Float AWL 100 RAIL QR15x110 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC1 35mm interface -6º |
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 |
| Brakes | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Rear Derailleur | Shimano XT M8130 Link Glide SGS Shadow Plus |
| Shifters | Shimano XT M8130 Link Glide |
| Cassette | Shimano CS-LG400 11-50t 11-Speed |
| Chain | KMC eGlide |
| Crank | Shimano Steps EM600 |
| Pedals | VP-537 Black |
| Wheels | Race Face AR 30c Tubeless Ready |
| Tyres | Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape |
| Seatpost | OC Mountail Control MC20, 31.6mm, Dropper |
| Seatpost Remote | Shimano SL-MT500 |
| Saddle | Selle Royal Vivo 1216 DRN 160x249mm |
| Mudguard | CURANA Apollo 70mm |
| Front light | Lezyne Super HB STVZO 1000 with Remote, Low Bean 600 Lumens, High Bean 1000 Lumens |
| Front Light 2 | Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50. |
| Rear light | Lezyne Super Bright CARRIER STVZO Alert Technology 12 Lumen |
| Quick stand | Ursus Mooi rear adjustable |
| Battery | Orbea Internal 540Wh (Optional 252Wh Range Extender) |
| Motor | Shimano EP8 |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Remote | EN600-L |
| Rear carrier | Orbea Kemen Suv oversize Alloy Rear Carrier, w/Mik HD and Oertlieb QL3.1 system |
| Size | S | M | L |
|---|---|---|---|
| Seat Tube (C-T) | 400 | 453 | 483 |
| Top Tube (EFF) | 563 | 576 | 606 |
| Head Tube | 110 | 115 | 132 |
| Chainstay | 445 | 445 | 445 |
| BB Height* | 307.5 | 307.5 | 307.5 |
| BB Drop* | 63 | 63 | 63 |
| Wheelbase | 1134 | 1142 | 1173 |
| Head Angle* | 66.5° | 67° | 67° |
| Seat Angle* | 75° | 75° | 75° |
| Standover | 732 | 740 | 743 |
| Reach | 405 | 415 | 440 |
| Stack | 617 | 624 | 640 |
| Fork Length | 513.5 | 513.5 | 513.5 |
| Rake | 44 | 44 | 44 |
