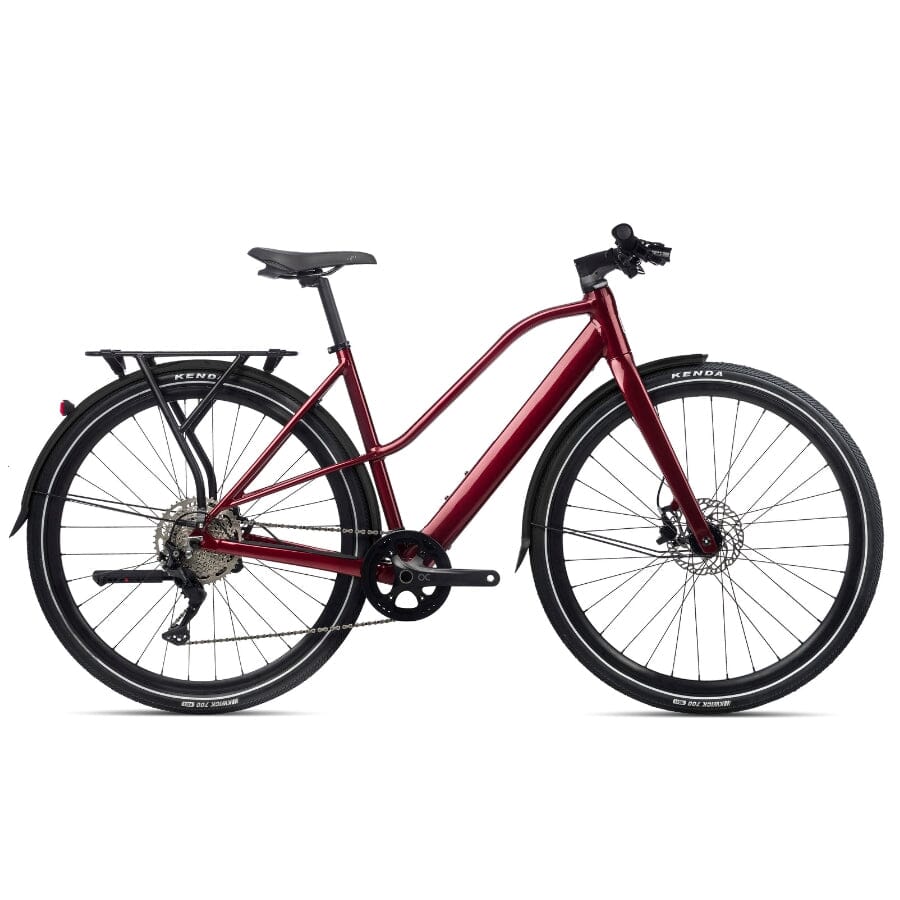

Orbea Vibe MID H30 EQ 20mph 2022
Product Details
The Orbea Vibe MID H30 EQ is engineered for urban cyclists who demand sophistication, practicality, and reliability in their daily transportation. This premium commuter e-bike combines thoughtful design with advanced technology, creating an efficient platform that transforms city navigation from routine necessity into genuinely enjoyable riding experiences across diverse urban terrain.
Built around Orbea's refined Vibe Mid Bar Hydro 6061 Hydroform aluminum frame with integrated cable routing, this bike delivers exceptional durability while maintaining the agility essential for urban environments. The full carbon Vibe fork enhances ride quality significantly, absorbing road imperfections and providing responsive steering precision that instills confidence when navigating busy streets, bike lanes, and varied surface conditions.
The sophisticated Ebikemotion X35 Plus motor system provides seamless pedal assistance up to 20mph, delivering natural power delivery that feels intuitive and responsive. Paired with the compact 36V 248Wh battery featuring ANT+ connectivity, riders enjoy reliable range for daily commutes and extended rides without range anxiety. The precision Shimano Deore M5120 SGS Shadow Plus drivetrain ensures smooth, dependable shifting, while Magura MT30 hydraulic disc brakes deliver consistent stopping power in all weather conditions.
Perfect for commuters who refuse to compromise between performance and practicality, the Vibe MID H30 EQ includes integrated mudguards and lighting systems that provide year-round functionality. The Ready GR wheelset handles everything from smooth pavement to light gravel paths, while the frame's compatibility with carriers and fenders makes this bike truly versatile for urban adventures and practical transportation needs.
Key Features
- Frame – Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum with ICR Cable Routing
- Fork – Full Carbon Vibe Fork with Thru-Axle 12x100mm
- Motor – Ebikemotion X35 Plus 20mph with 36V 248Wh ANT+ Battery
- Drivetrain – Shimano Deore M5120 SGS Shadow Plus with Magura MT30 Hydraulic Disc Brakes
- Features – Integrated Mudguards, Lighting System, and Carrier Compatibility
| Specification | Detail |
|---|---|
| Frame | Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible |
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | OC1 31.8mm interface -6º |
| Handlebar | Alloy 31.8mm 12mm Rise 700mm |
| Brakes | Magura MT30 Hydraulic Disc Easy Route Connection |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus |
| Shifters | Shimano Deore M4100 |
| Cassette | Shimano CS-M4100 11-46t 10-Speed |
| Chain | KMC X10 |
| Pedals | VP-537 Black |
| Crankset | OC 42t, w/Chainguard |
| Wheels | Ready GR |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
| Tyres | Kenda K1052 700x45C Reflective type+puncture protection |
| Seatpost | Alloy 27.2 Offset 20 |
| Saddle | Selle Royal Lift 1404 HRN 266x170mm |
| Mudguard | CURANA Apollo 55mm |
| Front light | Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens |
| Front Light 2 | Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50 |
| Rear light | Lezyne FENDER STVZO |
| Quick stand | Ursus Mooi R90 rear alloy adjustable |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Motor | Ebikemotion X35 Plus 20mph |
| Charger | Ebikemotion X35 |
| Remote | Ebikemotion iWoc TRIO |
| Bell | Knog OI Classic |
| Rear carrier | Orbea Vibe rear luggage carrier (Max:15Kg) |
| Size | S | M | L |
|---|---|---|---|
| Wheels | 700c | 700c | 700c |
| Stack | 546 | 580 | 600 |
| Reach | 380 | 395 | 400 |
| Stack/Reach Ratio | 1.44 | 1.47 | 1.50 |
| Top Tube Length | 517 | 540 | 562 |
| Seat Tube Length | 455 | 490 | 525 |
| Seat Tube Angle | 75.0 | 74.5 | 74.0 |
| Head Tube Length | 108 | 140 | 160 |
| Head Tube Angle | 70.0 | 70.5 | 71.5 |
| BB Drop | 76 | 76 | 76 |
| BB Height | 280 | 280 | 280 |
| Front Center | 603 | 624 | 616 |
| Chainstay Length | 435 | 435 | 435 |
| Wheelbase | 1,026 | 1,048 | 1,040 |
| Rake | 44 | 44 | 44 |
| Trail | 80 | 77 | 81 |
| Standover Height | 723 | 732 | 747 |
| Stem Length | 90 | 90 | 90 |
| Crank Length | 170 | 170 | 170 |
| Handlebar Width | 700 | 700 | 700 |
