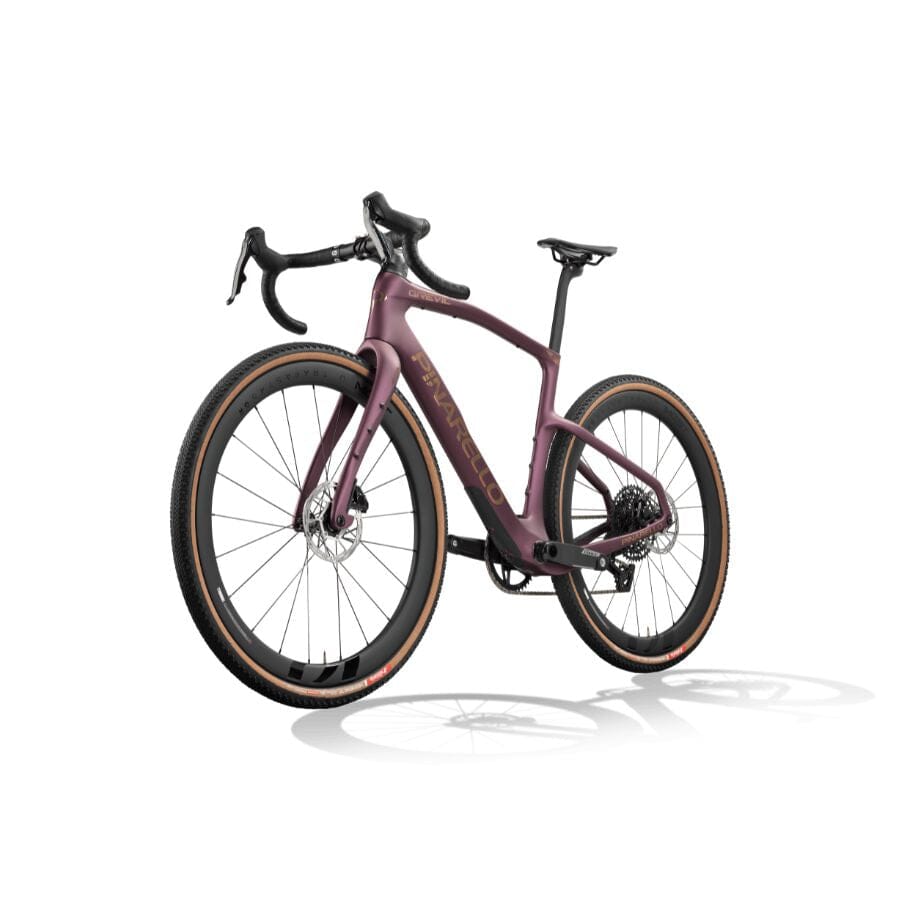

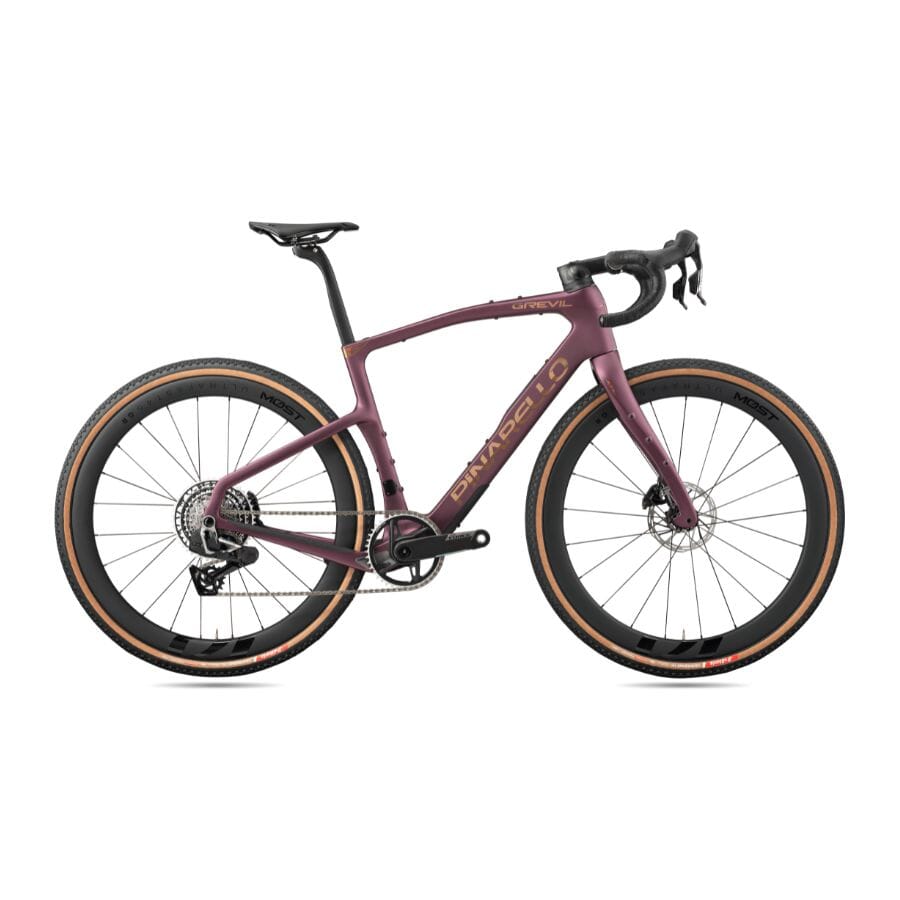

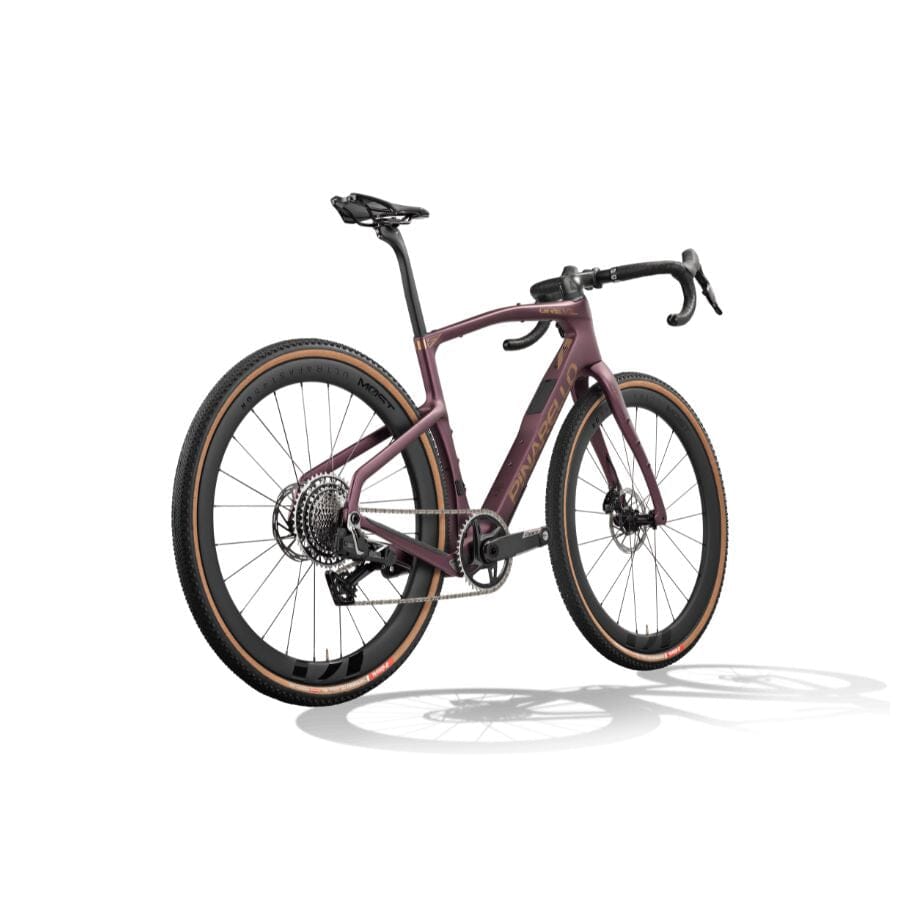

Pinarello Grevil F7 Force XPLR AXS
Product Details
The Pinarello Grevil F7 Force XPLR AXS represents the pinnacle of gravel racing engineering, designed for serious competitors who demand the best. This high-performance carbon frame features Pinarello's innovative aerodynamic design that helps you save watts during long solo efforts and competitive racing. The adaptive seatpost provides 10mm of longitudinal flex to absorb road vibrations, while the Twin Arms seatstay system works together to maintain exceptional traction on rough gravel surfaces. The refined Onda fork enhances ride quality with its lightweight construction and calculated curvature for superior handling.
What elevates the F7 is its premium SRAM Force XPLR AXS wireless drivetrain, delivering lightning-fast shifts and reliable performance without cables. The integrated down tube storage keeps essential tools accessible while maintaining clean aerodynamics, eliminating the drag of traditional saddle bags. Race-focused features like the magnetic frame bag compatibility and optional gravel TT bars make this bike ready for the most demanding endurance events and competitive racing scenarios.
KEY FEATURES
- Advanced Carbon Frame with Aerodynamic Integration – Professional-grade construction with integrated storage and aerodynamic bottle optimization
- Adaptive Seatpost and Twin Arms Technology – Vibration-absorbing system with 10mm flex for comfort during long-distance racing
- SRAM Force XPLR AXS Wireless Drivetrain – Premium wireless shifting with wide-range gearing optimized for gravel racing
| Frame | TORAY T900 UD |
| Fork | F Onda Fork with ForkFlap™, Tapered head tube |
| Crankset and Chainrings | SRAM FORCE XPLR 1x13 |
| Cassette | SRAM Force |
| Chain | SRAM Force |
| Bottom Bracket | SRAM BB DUB ITALIAN 70mm ROAD WIDE |
| Front Brake Disc | SRAM Force 2 pistons caliper, 160mm rotor |
| Rear Brake Disc | SRAM Force 2 pistons caliper, 160mm rotor |
| Handlebar | JAGUAR ULTRA GR TICR |
| Stem | TIGER ALU AERO TICR |
| Bar Tape | Bar Tape MOST Ultragrip evo 3mm - Black |
| Saddle | Most Lynx My26 |
| Seatpost | 360 Wh Integrated Battery |
| Seat Clamp | D-SHAPE SEATPOST |
| Tyres Disc | VITTORIA TERRENO T50 45 |
| Wheelset Disc | MOST Gravel Carbon 45 |
| Axles Disc | NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal |
| Measurement | 410 | 440 | 470 | 490 | 510 | 545 |
|---|---|---|---|---|---|---|
| CF (Seat Tube) | 410 mm | 440 mm | 470 mm | 490 mm | 510 mm | 545 mm |
| CC (Top Tube) | 470 mm | 500 mm | 530 mm | 550 mm | 575 mm | 600 mm |
| L (Wheelbase) | 530 mm | 545 mm | 558 mm | 570 mm | 587 mm | 607 mm |
| I (Head Tube Length) | 125.6 mm | 137.8 mm | 148.3 mm | 156.2 mm | 168.1 mm | 180.4 mm |
| A (Seat Tube Angle) | 74.5° | 74° | 73.75° | 73.5° | 73° | 72.5° |
| B (Head Tube Angle) | 70.25° | 70.5° | 70.75° | 71.75° | 72° | 72.25° |
| F (Front Center) | 603.9 mm | 614.5 mm | 625.8 mm | 621.9 mm | 631.9 mm | 644.3 mm |
| P (Chainstay Length) | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| T (Fork Length) | 115 mm | 130 mm | 150 mm | 160 mm | 175 mm | 195 mm |
| D (BB Drop) | 72 mm | 72 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| R (Fork Offset) | 55 mm | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| G (Chainstay) | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| WB (Wheelbase) | 1023.5 mm | 1034.2 mm | 1047 mm | 1043 mm | 1053.1 mm | 1065.5 mm |
| Reach | 368.4 mm | 376.1 mm | 383.7 mm | 390.4 mm | 398.2 mm | 406.9 mm |
| Stack | 553.2 mm | 568.3 mm | 583.2 mm | 598.4 mm | 613.6 mm | 633.7 mm |
