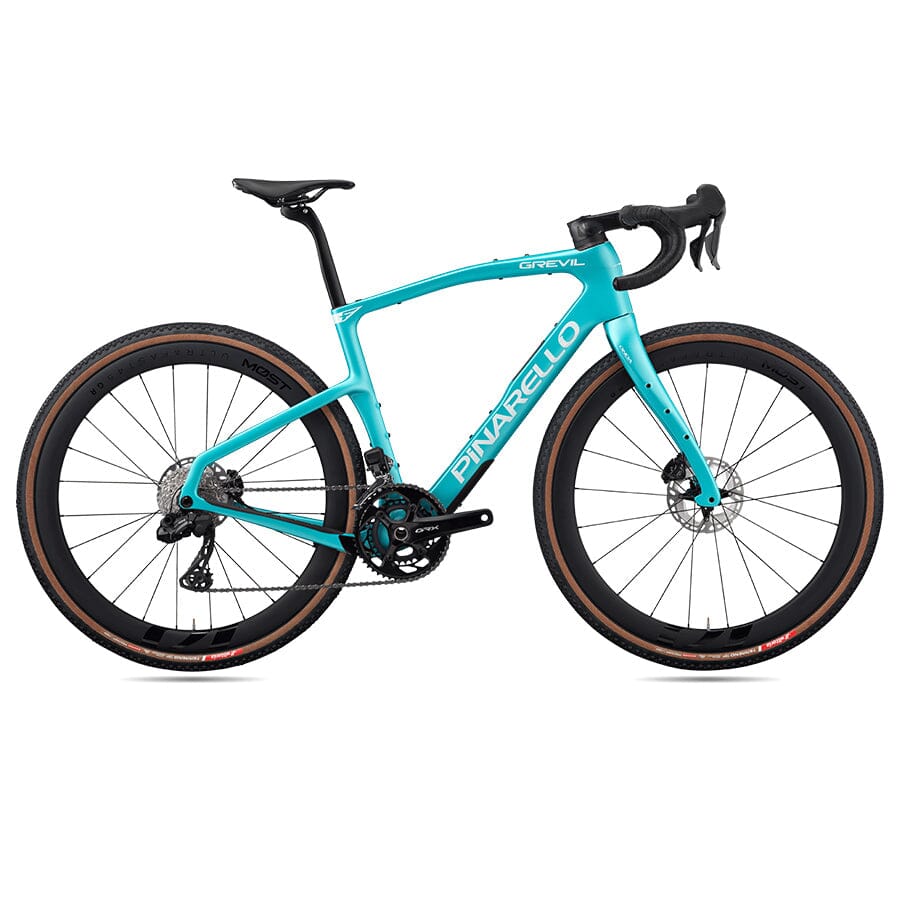

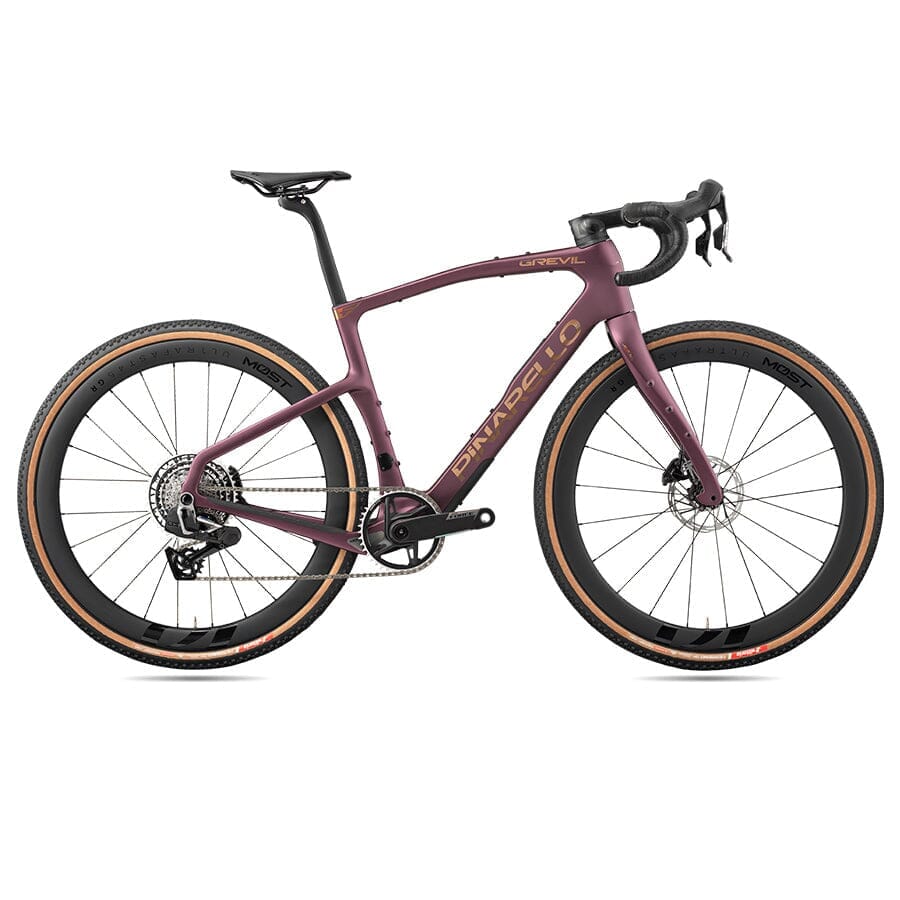

Pinarello Grevil F7 Force XPLR AXS Bikes Pinarello Bikes Stone Turquoise 47 Pinarello Grevil F7 GRX Di2 BIKES Pinarello Bikes Polaris Purple 47
Pinarello Grevil F7 Force XPLR AXS Bikes Pinarello Bikes Stone Turquoise 47
Pinarello Grevil F7 GRX Di2 BIKES Pinarello Bikes Polaris Purple 47
SKU: 210000167796
In Stock
On Sale

Pinarello Grevil F7 GRX Di2

Regular price $7,000.00
Regular price $7,000.00 Sale price $7,000.00

Pay using HSA / FSA with Flex

Please note:Images are for color reference only, please refer to the specifications for accurate representation.

Color
Size
Your satisfaction is our top priority.

Product Details

The Pinarello GREVIL F7 SHIMANO GRX 825 DI2 represents Pinarello's most advanced gravel racing machine, engineered specifically for victory in long-distance events across varied terrain where maximum customization and aerodynamic efficiency prove decisive. Built for solo racing dynamics where every watt saved translates to competitive advantage, this bike integrates a complete ecosystem of aerodynamically optimized accessories including TT gravel bars (sold separately), magnetic frame bag, racing bento, toolbag, and rack bag options that transform the GREVIL F7 into the ultimate ultra-endurance weapon.

Constructed from TORAY T900 UD Carbon, the frame features Pinarello's innovative down tube design specifically shaped to improve aerodynamic performance when using 750 ml bottles, while integrated storage space accessible without removing the bottle cage eliminates the need for drag-inducing saddle bags. The revolutionary adaptive seatpost delivers 10 mm of longitudinal flex, working in concert with Pinarello's TWIN ARMS seatstay design to absorb vibration and maintain exceptional traction over the roughest surfaces, keeping riders planted and delivering consistent power even when terrain deteriorates.

Pinarello's magnetic Fidlock frame bag system attaches securely to the frame while maintaining aerodynamic profile and total balance over rough terrain, with quick-access design enabling rapid service stops during competitive events. The redesigned Onda Fork combines elegant shaping with calculated curvature and reduced weight compared to previous GREVIL models, enhancing ride quality through improved compliance while sharpening handling characteristics for technical sections. The included Gravel TT bars feature a clamped solution on the rounded Jaguar handlebar with adjustable reach and stack on extensions and pads, integrated computer mount, and adjustable tilting to dial in the perfect position for extended solo efforts.

Perfect for gravel racers seeking maximum performance across varying race durations and terrain conditions, the GREVIL F7 pairs its advanced carbon platform with SHIMANO GRX 825 Di2 electronic shifting and MOST Gravel Carbon 45 wheelset for precise control and rolling efficiency when victory demands both speed and reliability.

Key Features

  • Frame – TORAY T900 UD Carbon
  • Drivetrain – SHIMANO GRX 825 Di2
  • Wheelset – MOST Gravel Carbon 45
*Please note that specifications are subject to change without prior notice
Specification Detail
Frame TORAY T900 UD
Fork F Onda Fork with ForkFlap™, Tapered head tube
Crankset & Chainrings Shimano GRX 825 Di2
Cassette Shimano GRX
Chain Shimano GRX
Bottom Bracket Shimano Dura-Ace BB-R9100 70mm
Front Brake Shimano GRX, 2-piston caliper, 160mm rotor
Rear Brake Shimano GRX, 2-piston caliper, 160mm rotor
Handlebar Jaguar Ultra GR TiCR
Stem Tiger Alu Aero TiCR
Bar Tape MOST Ultragrip Evo 3mm - Black
Saddle Most Lynx My26
Seatpost D-Shape Seatpost
Seat Clamp Classic Seat Clamp
Tyres Vittoria Terreno T50 45
Wheelset MOST Gravel Carbon 45
Axles NEW MOST Ultra Light Custom Axle 12x100 & 12x142, Tool-Free Removal
Measurement 47 50 53 55 57.5 60
Seat Tube Center–End (mm) 410 440 470 490 510 545
Seat Tube Center–Center (mm) 470 500 530 550 575 600
Top Tube Center–Center (mm) 530 545 558 570 587 607
Setback (mm) 125.6 137.8 148.3 156.2 168.1 180.4
Seat Tube Angle (°) 74.5 74.0 73.75 73.5 73.0 72.5
Head Tube Angle (°) 70.25 70.5 70.75 71.75 72.0 72.25
Chainstay (mm) 430 430 430 430 430 430
Head Tube (mm) 115 130 150 160 175 195
BB Drop (mm) 72 72 67 67 67 67
Fork Rake (mm) 55 55 55 50 50 50
Fork Height (mm) 405 405 405 405 405 405
Wheelbase (mm) 1023.5 1034.2 1047 1043 1053.1 1065.5
Reach (mm) 368.4 376.1 383.7 390.4 398.2 406.9
Stack (mm) 553.2 568.3 583.2 598.4 613.6 633.7
