Product Details

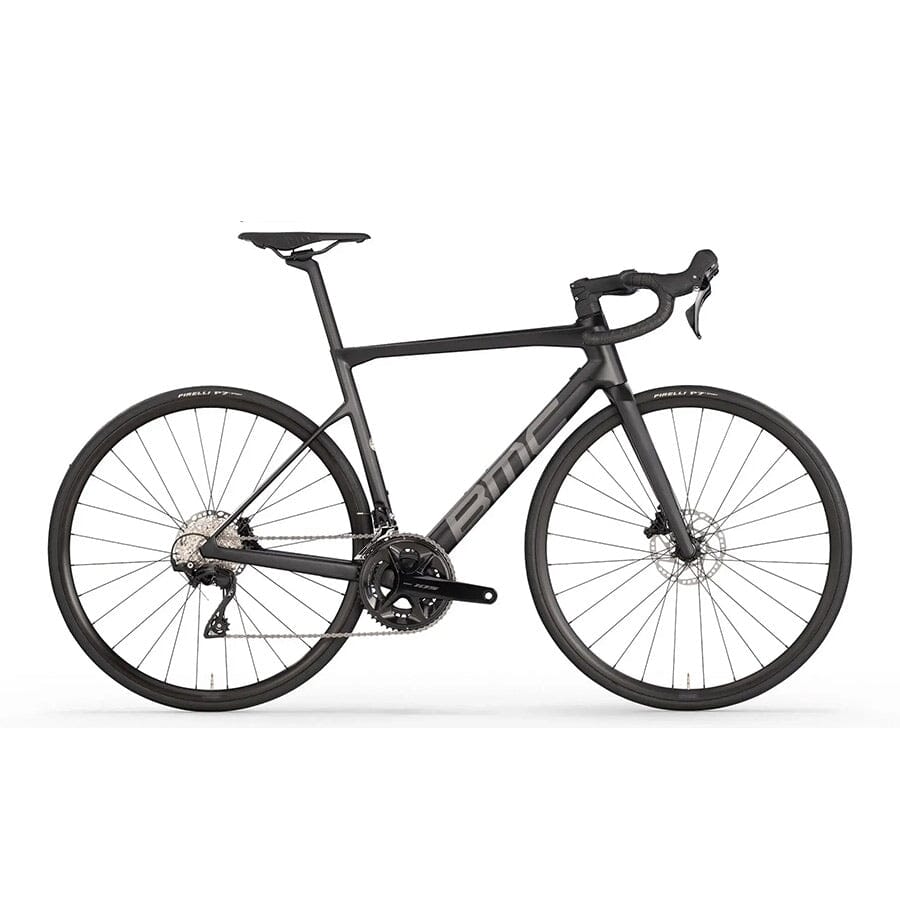

The BMC Teammachine SLR FOUR represents precision perfected, bringing cutting-edge innovation and performance to a more accessible level. This fifth-generation platform takes everything that made the Teammachine SLR legendary and pushes it further, blending low weight, aerodynamic shaping, and race-tuned handling into one complete package designed for mountain stages, high-elevation racing, and demanding road conditions.
Built with lightweight Premium Carbon construction, the TCC Race-engineered frame and D-Shape Carbon seatpost ensure the perfect balance of speed, control, and comfort. Inspired by the aero-focused Teammachine R, this new SLR incorporates a refined fork, slimmer seatpost, and reduced frontal area to improve aerodynamic efficiency while maintaining clearance for 30mm measured tires. The Teammachine SLR delivers the same stiffness performance as the high-end SLR 01 series, ensuring the signature BMC ride feel with every pedal stroke.
Advanced engineering defines every detail through BMC's ACE+ technology, which generates thousands of virtual frameset prototypes to satisfy stiffness, weight, compliance, and aerodynamics targets simultaneously. The latest evolution of BMC's Tuned Compliance Concept (TCC) technology makes this generation more compliant than ever, smoothing rough roads without sacrificing responsiveness. The Integrated Cockpit System (ICS) ensures stealth cable routing without compromising weight or stiffness.
Built for riders seeking professional-level performance at an accessible price, the Teammachine SLR FOUR features reliable Shimano 105 2x12 and PRD23 wheels. Decades of development have shaped every aspect of this sleek, efficient machine, creating a bike that feels like a natural extension of the rider and performs at the highest level on any race course.
Key Features
- Frame - Teammachine SLR Premium Carbon with TCC Race Engineering and Aerocore Design
- Drivetrain - Shimano 105 2x12
- Wheelset - PRD23 23mm
| Specification | Detail |
|---|---|
| Frame | Teammachine SLR Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages |
| Fork | Teammachine SLR Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset (Size 47–51) | 43mm offset (Size 54–61) |
| Stem | BMC RSM 01 | Integrated Cockpit System Technology |
| Handlebar | BMC RAB 02 | Ergo Top Shape | Compact Bend [or] BMC HB D4 03 | Alloy 6061 | 135mm drop | 70mm reach | 6° flare |
| Seatpost | Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset |
| Saddle | Fizik Antares R7 | S-Alloy rail 140mm [or] Selle Italia Model X Superflow | FeC Alloy rail | 145mm |
| Crankset | SHIMANO 105 (FC-R7100) |
| Chainrings | 50-34T |
| Cassette | SHIMANO 105 (CS-R7101) | 11-34T |
| Chain | SHIMANO CN-M6100 |
| Front Derailleur | SHIMANO 105 (FD-R7100) |
| Rear Derailleur | SHIMANO 105 (RD-R7100) |
| Shifters | SHIMANO 105 (ST-R7120) |
| Gears | 2 x 12 |
| Bottom Bracket | SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB) |
| Brake Levers / Calipers | SHIMANO 105 (BR-R7170) |
| Rotors | SHIMANO SM-RT70 | Centerlock |
| Rotor Size (F/R) | 160 / 160mm |
| Rims | PRD23 | 23mm |
| Hubs (F/R) | SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock | 28H |
| Tires | Pirelli P7 Sport | 26mm |
| Tubeless Information | Non-Tubeless Rims | Non-Tubeless Clincher Tire |
| Tire Clearance | 30mm measured tire |
| Weight without Pedals | 8.5 kg |
| ASTM Classification | Level 1 |
| System Weight Limit | 110kg |
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach (mm) | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack (mm) | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop (mm) | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width (mm) | 390/414 | 390/414 | 390/414 | 410/434 | 410/434 | 430/454 |
| BB Drop (mm) | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length (mm) | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake (mm) | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center (mm) | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube (mm) | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Tube (mm) | 423 | 468 | 504 | 524 | 545 | 574 |
| Seatpost Length (mm) | 330 | 380 | 380 | 380 | 380 | 380 |
| Seatpost Offset (mm) | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height (mm) | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | -8 | -8 | -8 | -8 | -8 | -8 |
| Stem Length (mm) | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube (mm) | 517 | 534 | 549 | 559 | 574 | 589 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 968 | 986 | 989 | 1000 | 1015 | 1030 |
