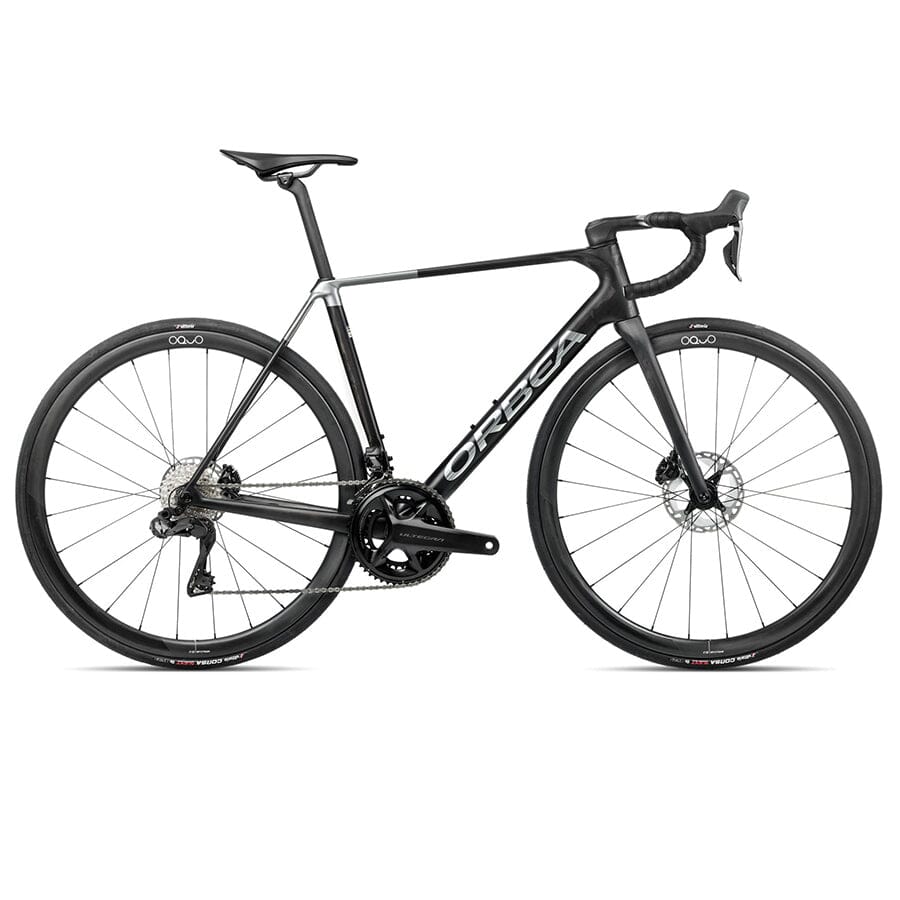

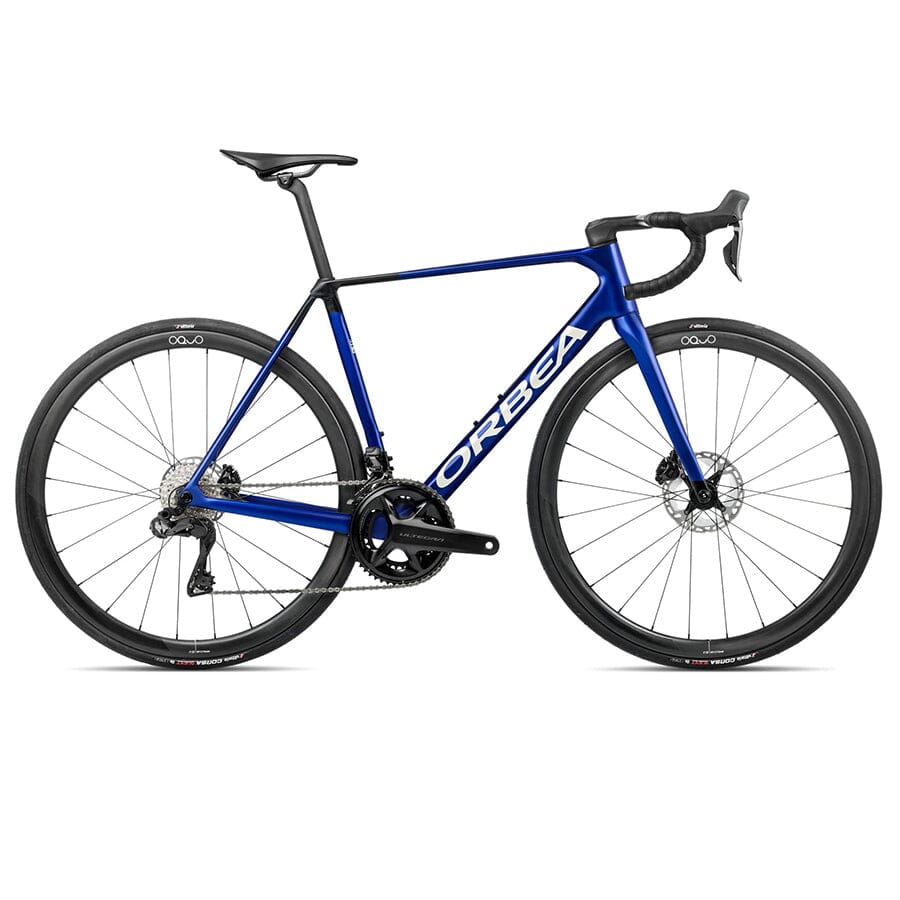

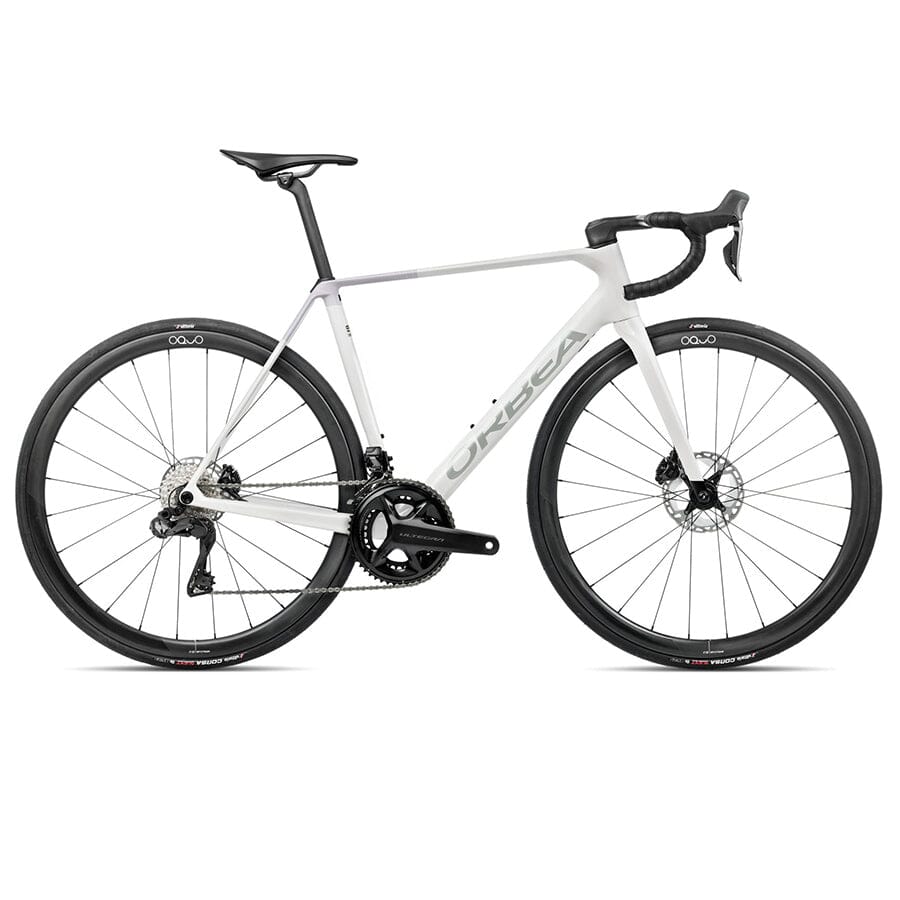

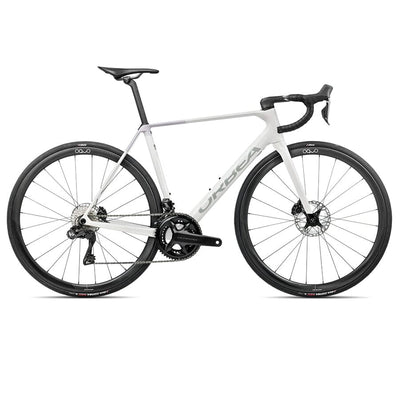

Orbea Orca M20iTeam
Product Details
The Orbea Orca M20iTeam is a high-performance road bike engineered for riders who prioritize lightweight efficiency, precise control, and instantaneous acceleration. Combining advanced carbon construction with meticulous design, this platform is optimized to maximize power transfer and climbing responsiveness without sacrificing durability or ride quality.
Built around the Orbea Orca OMR carbon frame weighing just 1030g, the design strikes the ideal balance between stiffness and minimal weight. The OMR layup enhances efficiency and responsiveness while maintaining the structural strength needed for intense training and racing. Optimized tube shaping and precision manufacturing reduce excess material and epoxy overlap, ensuring a clean, highly efficient structure.
The frame’s Powerspine architecture, linking the headtube, downtube, and chainstays, channels pedaling forces directly into forward motion, delivering explosive acceleration and superior climbing performance. Size-tuned carbon layups ensure a uniform ride feel across all frame sizes, providing consistent stiffness, control, and comfort for every rider. Slim, round tubes help absorb road vibrations, offering a smoother ride without compromising efficiency.
This lightweight chassis enhances agility and responsiveness through climbs, sprints, and technical descents. Balanced geometry provides stable handling at speed while maintaining the sharp steering required for switchbacks and tight terrain. Tire clearance for up to 32C adds versatility, enabling a blend of comfort and speed on varied road surfaces.
Equipped with a Shimano Ultegra 2x12 drivetrain, the Orca M20iTeam delivers smooth, dependable shifting and proven performance. The Oquo Road Performance RP35TEAM wheelset complements the bike’s efficient construction with quick acceleration and confident handling. For riders seeking effortless climbing performance and refined road efficiency, the Orca M20iTeam stands as a pure expression of lightweight road excellence.
Key Features
- Frame: Orbea Orca OMR Carbon
- Drivetrain: Shimano Ultegra 2x12
- Wheelset: Oquo Road Performance RP35TEAM
| Specification | Detail |
|---|---|
| Frame | Orbea Orca carbon OMR 2026, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
| Fork | Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1. |
| Steerer Tube | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | Shimano Ultegra R8100 34x50t |
| Shifters | Shimano ST-8170 |
| Cassette | Shimano Ultegra R8100 11-30t, 12-Speed |
| Rear Derailleur | Shimano Ultegra Di2 R8150 |
| Front Derailleur | Shimano Ultegra Di2 R8150 |
| Chain | Shimano M8100 |
| Handlebar | Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125 |
| Brakes | Shimano R8170 Hydraulic Disc |
| Rotors | 160mm Front / 140mm Rear |
| Brakes Configuration | N/A |
| Wheels | Oquo Road Performance RP35TEAM |
| Tyres | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Seatpost | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Vento Antares R7 Alloy Rail 140mm |
| Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
| Storage | OC Toolbox TB02PP |
| Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| Top Tube (EFF) | 510.3 | 522.7 | 535.9 | 548.5 | 560.4 | 576.1 | 590 |
| Head Tube | 110.5 | 118.2 | 134.6 | 152.9 | 173.1 | 191.2 | 218.3 |
| Chainstay | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| BB Drop | 72 | 72 | 72 | 70 | 70 | 70 | 70 |
| BB Height | 268.5 | 268.5 | 268.5 | 270.5 | 270.5 | 270.5 | 270.5 |
| Wheelbase | 971.8 | 975.4 | 980 | 981.2 | 991.4 | 1001.9 | 1015.6 |
| Head Angle | 71 | 71.5 | 72.2 | 72.8 | 73 | 73.2 | 73.2 |
| Seat Angle | 74.5 | 74 | 73.7 | 73.5 | 73.5 | 73.2 | 73.2 |
| Rake | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Standover | 736.5 | 748.5 | 767.5 | 788.5 | 808.5 | 826.5 | 852.5 |
| Reach | 370 | 375 | 380 | 385 | 391 | 398 | 404 |
| Stack | 506 | 515 | 533 | 552 | 572 | 590 | 616 |
| Fork Length | 365 | 365 | 365 | 365 | 365 | 365 | 365 |
| Trail | 66.0 | 62.8 | 58.4 | 59.9 | 58.7 | 57.4 | 57.4 |
