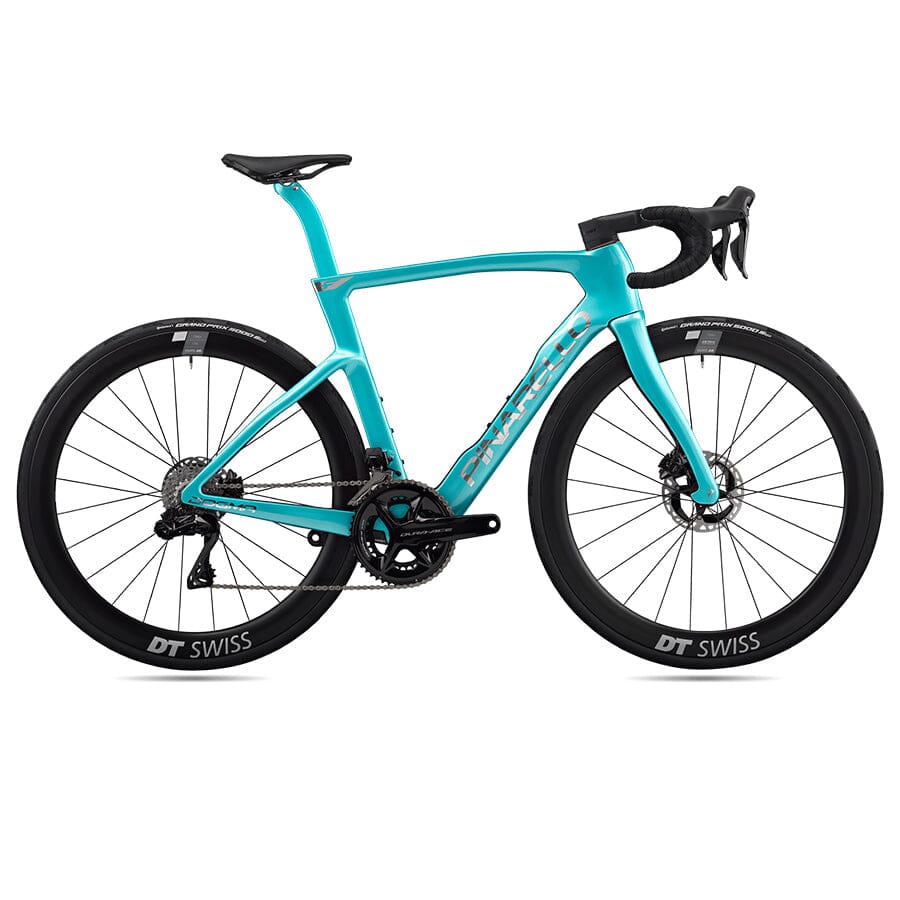

Pinarello Dogma F Dura-Ace Di2

The Pinarello Dogma F represents the pinnacle of modern road racing, delivering an uncompromising balance of form, function, and World Tour–proven performance. True to Pinarello’s heritage, the Dogma F stands apart—not only for its unmistakable design, but for how it performs at the highest level of competition. Refined and evolved, it once again defines what a flagship race bike should be.

At its core is the advanced Torayca M40X carbon frame with TiCR fully integrated cable routing and an Italian bottom bracket. This revolutionary carbon layup, tested extensively on X-Light models and by the INEOS Grenadiers team, achieves exceptional tensile modulus and lateral stiffness. The result is unmatched power transfer, razor-sharp handling, and absolute precision under the most demanding race conditions.

Aerodynamic optimization is engineered into every detail of the Dogma F. The completely redesigned downtube is thinner to improve frontal aero efficiency and reduce drag, while the Aero-Keel bottom bracket—derived from Hour Record technology—rotates the downtube by 3.5° to create a keel shape that improves bottom bracket aerodynamics by 1.2%. The evolved head tube “nose” shape, first introduced on the Dogma F8, reduces volume and width by 8mm, further improving frontal penetration and airflow management.

The innovative E-TiCR elliptical steering tube integrates a newly developed headset with differentiated bearing diameters—wider at the bottom and narrower at the top allowing a slimmer head tube profile without compromising stiffness. A new, slimmer Onda fork with a 47mm rake enhances aerodynamics while delivering confident handling and increased speed on descents, refined through direct feedback from professional riders. Shorter thru-axles with integrated carbon construction eliminate external holes in both frame and fork, resulting in cleaner aesthetics and improved aero performance.

Built for racers who demand nothing less than World Tour excellence, the Dogma F is paired with Shimano Dura-Ace Di2 R9200 2x12 electronic shifting for flawless, race-ready performance and Princeton Peak 4550 DB carbon wheels for aerodynamic efficiency and stability at speed. The Talon Ultra Fast integrated cockpit is lighter and more aerodynamic, designed with a natural twisted lever position for improved comfort, control, and safety. An integrated seatpost clamp reduces weight while protecting internal components from dust and sweat for long-term reliability.

Engineered without compromise, the Pinarello Dogma F is the ultimate road racing machine, fast, precise, and built to win at the highest level.

Key Features

• Frame – Pinarello Dogma F Torayca M40X Carbon
• Drivetrain – Shimano Dura-Ace Di2 R9200 2x12 electronic shifting
• Wheelset – Princeton Peak 4550 DB carbon wheels
