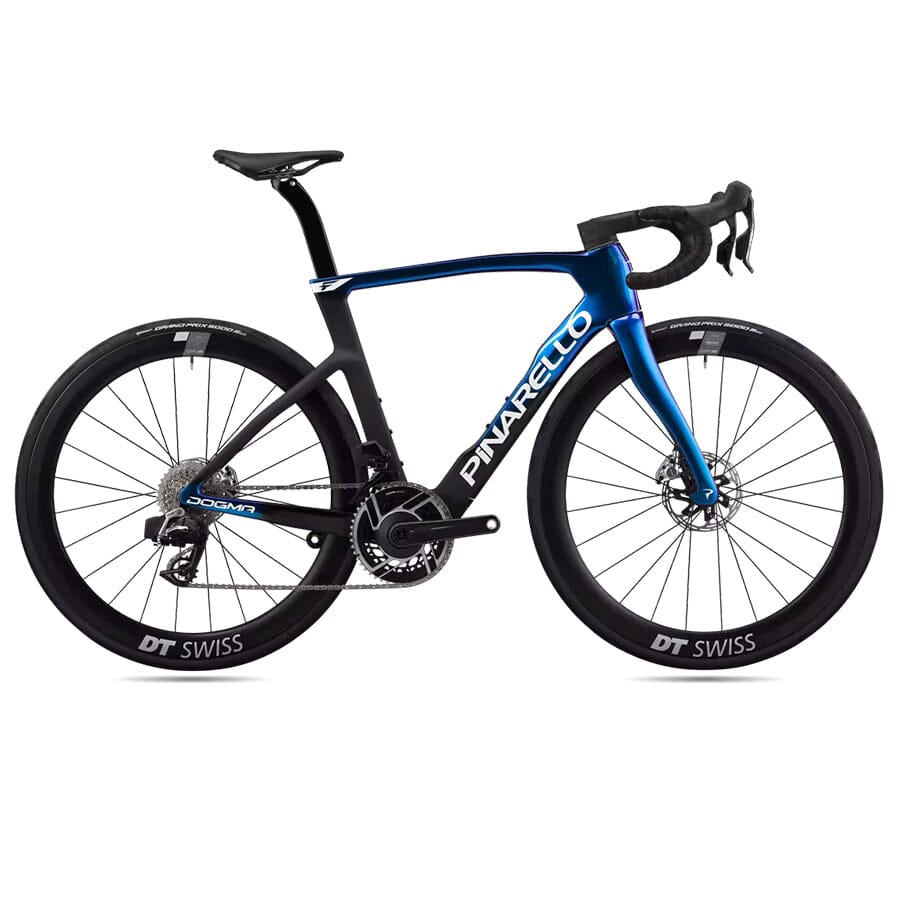

Pinarello Dogma F Red eTap AXS E1 PM Peak 4550 BIKES Pinarello Bikes Luxter Blue Shiny 43

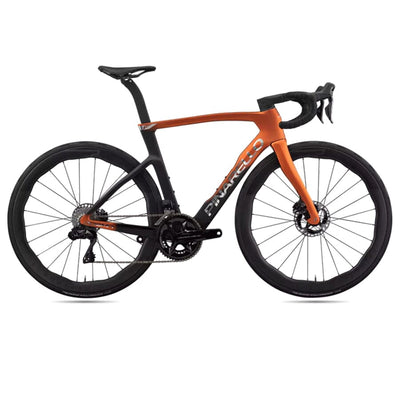

Pinarello Dogma F Red eTap AXS E1 PM Peak 4550 BIKES Pinarello Bikes Luxter Amber 43

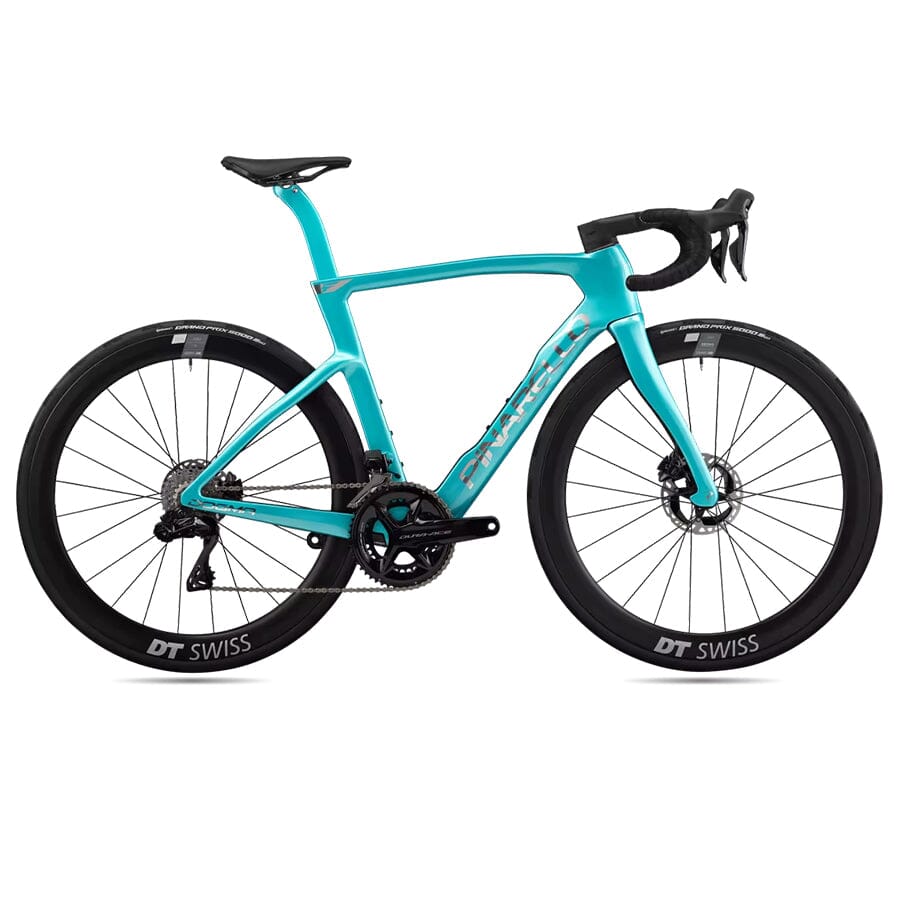

Pinarello Dogma F Red eTap AXS E1 PM Peak 4550 BIKES Pinarello Bikes Luxter Turquoise 43

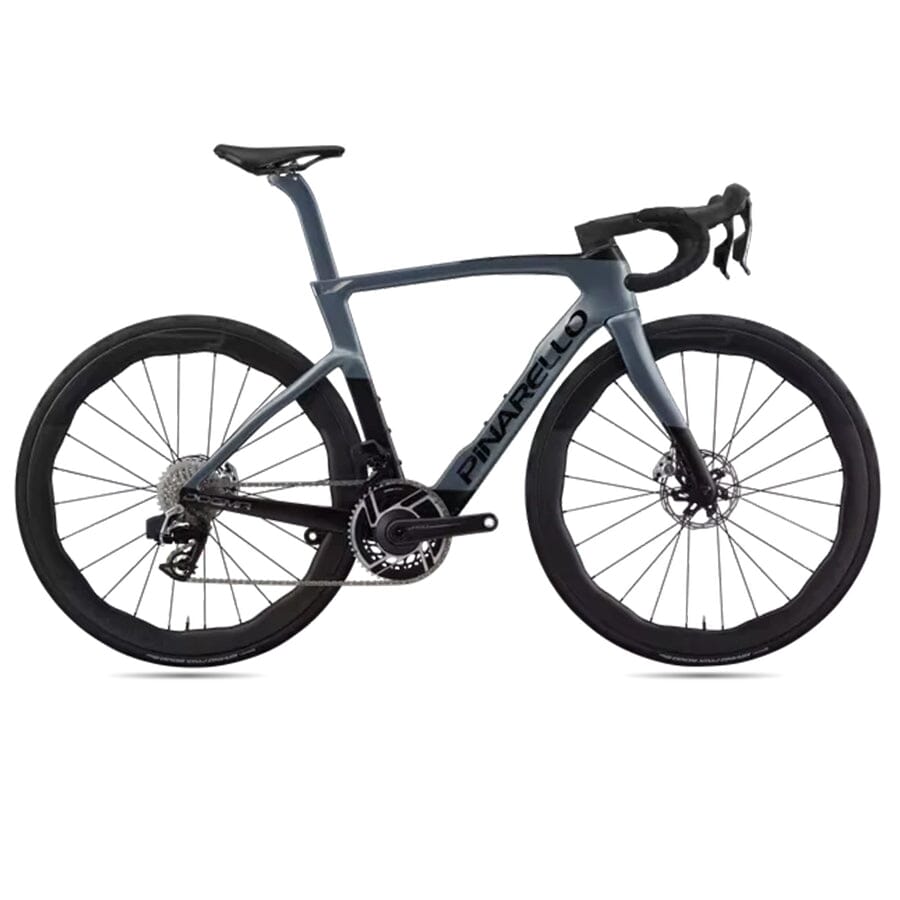

Pinarello Dogma F Red eTap AXS E1 PM Peak 4550 BIKES Pinarello Bikes Luxter Grey Matt 43
SKU: 210000166608
In Stock
On Sale

Pinarello Dogma F Red eTap AXS E1 PM Peak 4550

$15,750.00
$15,750.00 $15,750.00
Color
Size
Your satisfaction is our top priority.

Product Details

The Pinarello Dogma F is a high-performance road racing machine engineered for uncompromising speed, precision, and aerodynamic efficiency. Designed to excel at the highest level of competition, the Dogma F combines advanced carbon engineering with innovative aerodynamic features to deliver a bike that is as visually striking as it is race-ready.

At the heart of the Dogma F is the Torayca M40X carbon frame, developed from the same fiber used in Ineos Grenadiers team bikes. This next-generation layup achieves exceptional lateral stiffness while maintaining lightweight compliance, allowing riders to transfer power efficiently while enjoying a smooth, controlled ride. The redesigned downtube and top tube reduce frontal area for improved aero penetration, while the new Aero-Keel BB shape enhances airflow around the bottom bracket, reducing drag by 1.2%.

The integrated ONDA fork and Talon Ultra Fast cockpit further refine the bike’s aerodynamic profile. A slimmer fork design with a 47mm rake optimizes handling at high speed, while the fully integrated seatpost clamp minimizes weight and improves frame cleanliness. Every detail, from the elliptical headset bearings to the redesigned thru-axles, contributes to superior aerodynamic efficiency without compromising stiffness or control.

Equipped with SRAM RED eTap AXS, the Dogma F delivers precise, wireless electronic shifting for seamless gear changes under any racing condition. The Peak 4550 wheelset provides responsive acceleration and consistent stability, perfectly complementing the bike’s aggressive geometry and high-speed capabilities. TiCR™ cable routing and an Italian bottom bracket ensure integrated performance and reliability, making the Dogma F a complete package for elite riders who demand both speed and style.

Key Features

  • Frame: Torayca M40X Carbon with TiCR™ Cable Routing and Italian BB
  • Drivetrain: SRAM RED eTap AXS Wireless
  • Wheelset: Peak 4550 Carbon
Please Note: Images are for color reference only. Refer to the provided specifications for product details.
*Please note that bike specifications are subject to change without prior notice
Specification Detail
Frame TorayCa M40X, TiCR™ Cable Routing, Italian BB
Fork NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
Weight 6.63kg (Size 53, SRAM RED Etap, Princeton Peak 4550 wheels, without pedals and bottles)
Crankset and Chainrings SRAM Red ETAP AXS 12S
Front Derailleur SRAM Red ETAP AXS 12S
Rear Derailleur SRAM Red ETAP AXS 12S
Cassette SRAM Red XG-1290
Bottom Bracket SRAM Red
Front Brake Disc SRAM Red 2 pistons caliper, 160mm rotor
Rear Brake Disc SRAM Red 2 pistons caliper, 160mm rotor
Integrated Handlebar MOST Talon Ultra Fast
Bar Tape MOST Bar Tape
Saddle Most Lynx Ultrafast Superflow L Carbon, 145mm
Seatpost Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Tires Continental Gran Prix 5000S TR28-622
Wheelset Princeton Peak 4550 DB
Axles NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
Bottles and Bottle Cages Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black
Size 43 46.5 50 51.5 53 54 55 56 57.5 59.5 62
Seat Tube Center - End 425 450 465 485 500 510 520 525 540 560 600
Seat Tube Center - Center 430 465 500 515 530 540 550 560 575 595 620
Top Tube Center - Center 500 515 525 535 545 550 557 565 575 587 620
Seat Tube Angle 74.4° 74.4° 74° 73.7° 73.7° 73.4° 73.4° 73° 73° 72.4° 72°
Headtube Angle 69.5° 70.5° 71.4° 72° 72.5° 72.8° 72.8° 73.2° 73.7° 73.4° 73.4°
Chainstay 407 407 407 407 407 408 408 409 409 409 411
Headtube 102 109 114 119 128 136 147 154.5 168 204 244
BB Drop 67 72 72 72 72 72 72 72 72 67 67
Fork Rake 47 47 47 47 47 47 47 47 47 47 47
Fork Height 373 373 373 373 373 373 373 373 373 373 373
Reach 351.5 365.4 372.2 378.2 383.3 385.3 389.2 390.8 396.7 393.4 410
Stack 502 517.3 525.2 532.1 542.4 551 561.5 570.1 584.8 613.2 651.6
