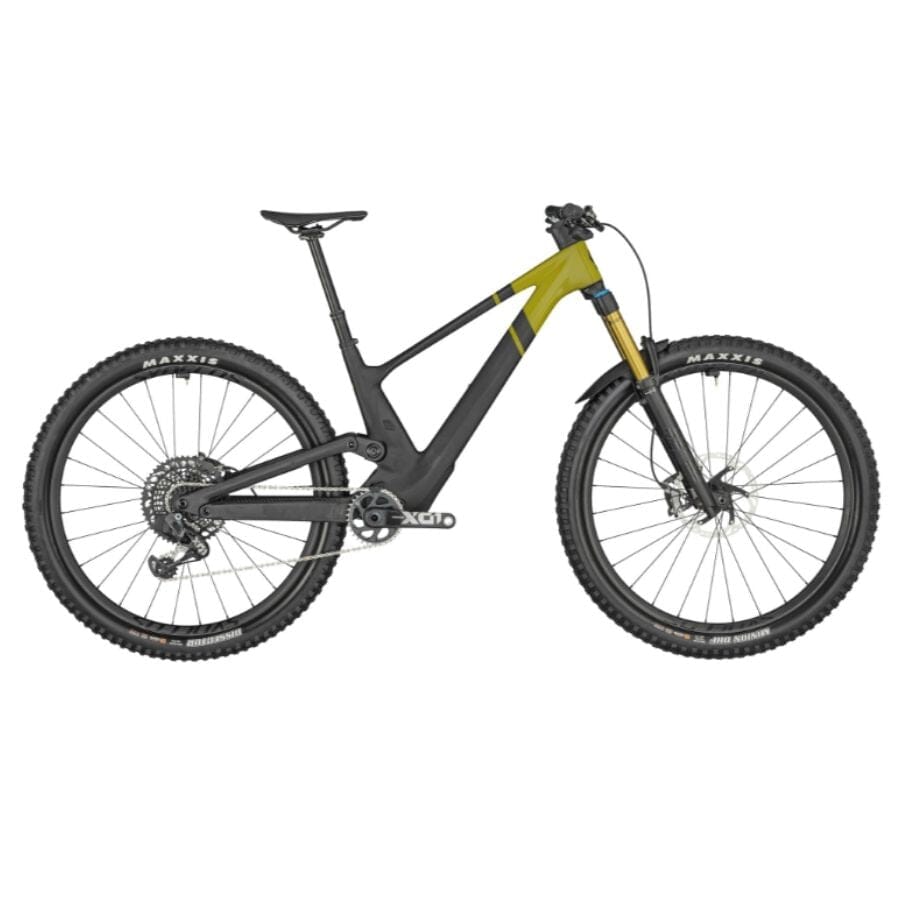

Scott Genius ST 900 Tuned DEMO
Product Details
The Scott Genius ST 900 Tuned DEMO is built for riders who want a trail bike that climbs efficiently and descends with confidence and composure. Sitting firmly in the “short-travel trail” category, the Genius ST blends modern geometry with a responsive suspension platform to create a bike that feels fast on the way up and planted when the trail points down. It’s designed for riders who value efficiency without giving up control on technical terrain.
At the heart of the Genius ST is a custom FOX Float X Nude shock, tuned specifically for this platform and integrated with Scott’s TwinLoc system to adapt the bike’s behavior to the trail in seconds. Paired with a lightweight carbon frame and carefully selected high-end components, the Genius ST 900 Tuned delivers a precise, lively ride that encourages pushing a little harder—whether you’re flowing through singletrack or picking lines on demanding descents.
Key Features
-
Custom FOX Float X Nude Suspension – Trail-focused tuning delivers efficient climbing performance with confident, controlled descending.
-
Lightweight Carbon Frame – Modern trail geometry balances agility and stability for fast, engaging rides in varied terrain.
-
TwinLoc Suspension System – On-the-fly adjustment lets you fine-tune suspension behavior to match climbs, descents, and everything in between.
| Specification | Detail |
|---|---|
| Frame | Genius Carbon HMX, Integrated Suspension Technology, Virtual 4 Link kinematic with adjustable head angle, Syncros Cable Integration System, BB92, UDH Interface, 12x148mm rear with 55mm chainline |
| Fork | FOX 36 Float Factory GRIP 2 Air, Kashima, HSC/LSC/HSR/LSR adjustable, Kabolt 15x110mm axle, 44mm offset, tapered steerer, 160mm travel |
| Rear Shock | FOX FLOAT X NUDE Factory EVOL Piggyback Trunnion, Kashima, SCOTT custom with travel and geometry adjustment, 3 modes (Climb / Traction Control / Descend), custom large air volume, compression and rebound adjustable, travel 150–100–Climb, T185x55mm |
| Remote System | TracLoc Technology, rear suspension and dropper remote, 3 rear suspension modes |
| Rear Derailleur | SRAM X01 Eagle AXS, 12-speed wireless electronic shift system |
| Shifters | SRAM GX Eagle AXS Rocker Controller |
| Crankset | SRAM X01 DUB Eagle carbon crankarm, 55mm chainline, 32T |
| Bottom Bracket | SRAM DUB PF92 MTB Wide, shell 41x92mm |
| Chain | SRAM CN X01 Eagle |
| Cassette | SRAM X01 XG1295, 10-52T |
| Brakes | Shimano XTR M9120, 4-piston disc |
| Rotors | Shimano SM-RT76, 6-bolt, 203mm front / 180mm rear |
| Handlebar | Syncros Hixon iC Carbon, 780mm width, 8° backsweep, size-specific rise (S/M 15mm, L/XL 25mm), Syncros Endurance lock-on grips |
| Seatpost | Syncros Duncan Dropper Post 1.5, 31.6mm, travel: S 140mm / M 160mm / L 170mm / XL 200mm |
| Saddle | Syncros Tofino 1.5 Regular, titanium rails |
| Headset | Syncros–Acros angle adjust and cable routing headset system, stainless, ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Wheelset | Syncros Revelstoke 1.0-30 CL, 30mm tubeless-ready carbon rims, 28H, F 15x110mm / R 12x148mm, DT Swiss Ratchet hubs, XD driver, SRAM TyreWiz, Syncros axle with removable lever and integrated tools |
| Front Tire | Maxxis Minion DHF, 120 TPI, foldable, Tubeless Ready, EXO, 3C MaxxTerra |
| Rear Tire | Maxxis Dissector, 60 TPI, foldable, Tubeless Ready, EXO, 3C MaxxTerra |
| Extras | SRAM AXS Powerpack, SRAM TyreWiz, Syncros Fork Fender |
| Accessories | Syncros Eco Sealant, Transport Axle |
| Approx. Weight | 13.3 kg / 29.32 lbs (tubeless setup) |
| Max. System Weight | 128 kg (includes bike, rider, equipment, and luggage) |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle (-0.6° Headset Setting) | 63.9° | 63.9° | 63.9° | 63.9° |
| Head Tube Length | 90mm | 100mm | 120mm | 135mm |
| Top Tube Horizontal | 570.1mm | 602.2mm | 631.3mm | 659.3mm |
| Standover Height | 728.5mm | 738.5mm | 753.5mm | 768.5mm |
| BB Offset | -33mm | -33mm | -33mm | -33mm |
| BB Height | 342.5mm | 342.5mm | 342.5mm | 342.5mm |
| Wheelbase | 1195mm | 1229mm | 1263mm | 1294mm |
| BB Center to Top of Seat Tube | 380mm | 410mm | 440mm | 470mm |
| Seat Angle | 76.8° | 77.1° | 77.2° | 77.4° |
| Chainstay Length | 440mm | 440mm | 440mm | 440mm |
| Reach | 430mm | 460mm | 485mm | 510mm |
| Stack | 617.0mm | 626.1mm | 644.2mm | 657.8mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm |
| Trail | 125.8mm | 125.8mm | 125.8mm | 125.8mm |
| Fork Length | 571mm | 571mm | 571mm | 571mm |
| Maximum Seatpost Insertion | 173mm | 204mm | 234mm | 265mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm |
