Product Details

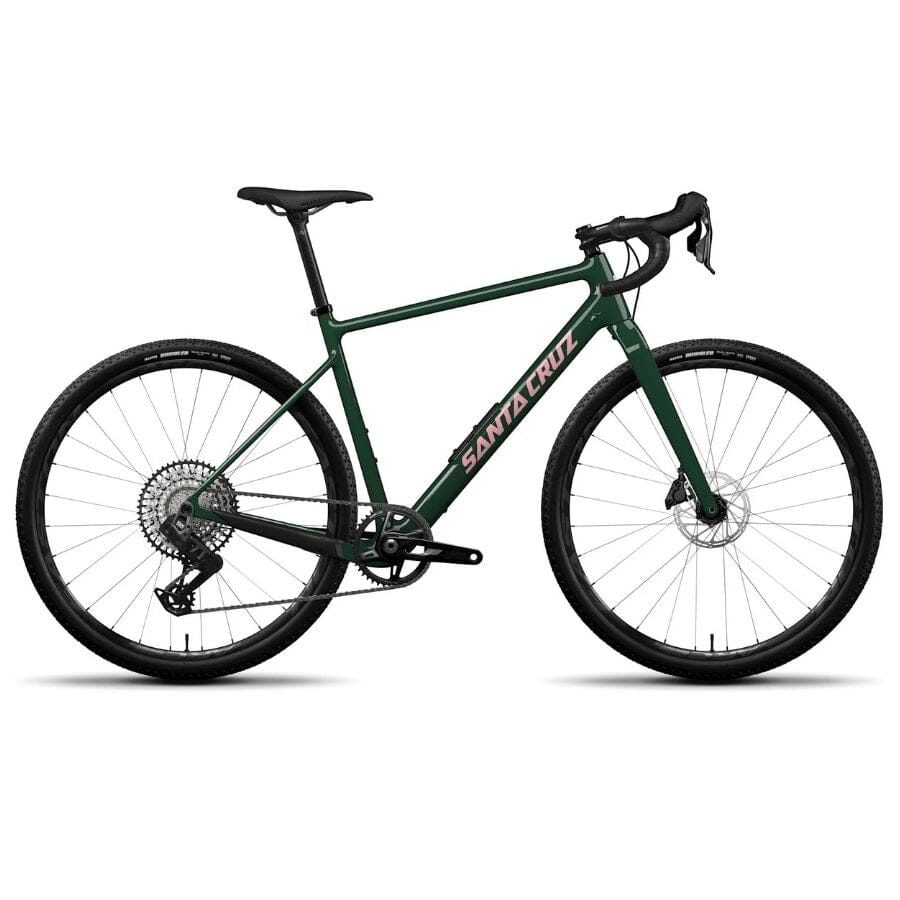

The Santa Cruz Stigmata 4 CC Rival 1x AXS represents the pinnacle of gravel and cyclocross performance, blending cutting-edge technology with precision engineering for riders who demand excellence. This lightweight Carbon CC frame delivers the perfect fusion of strength and agility at just 20.64 lbs, enabling confident navigation across diverse terrains from technical race courses to epic gravel adventures.
Built around Santa Cruz's proven Carbon CC construction, the Stigmata 4 offers exceptional durability without sacrificing the responsive handling that defines championship-winning bikes. The refined geometry strikes an ideal balance between aggressive racing capability and long-distance comfort, making it equally at home in cyclocross competitions and all-day gravel explorations.
The advanced SRAM Rival eTap AXS 1x12-speed drivetrain provides seamless wireless electronic shifting with the precision that only comes from premium components. The SRAM GX Eagle AXS T-Type rear derailleur paired with the wide-range 10-52t cassette ensures smooth transitions across challenging terrain, while the SRAM Rival XPLR crankset with 42t chainring delivers optimal gearing for mixed-terrain adventures.
Rolling on high-performance Easton ARC Offset 25 700c rims built around durable DT Swiss 370 hubs, this bike provides the stability and strength needed for aggressive riding. Maxxis Rambler 700x45c tires deliver exceptional traction and comfort across varied surfaces. Premium finishing touches, including Zipp Service Course components and a WTB Silverado saddle.
Key Features
- Frame – Carbon CC Gravel with Race-Proven Geometry
- Drivetrain – SRAM GX Eagle AXS T-Type 12-Speed with Rival AXS Shifters
- Wheelset – Easton ARC Offset 25 700c Rims with DT Swiss 370 Hubs
| Specification | Detail |
|---|---|
| Frame Material | Carbon CC |
| Frame | Carbon CC Gravel |
| Weight | 20.64lbs / 9.36kg |
| Wheel Size | 700c |
| Fork | Carbon |
| Shock | N/A |
| Bottom Bracket | SRAM DUB 68mm Road Wide BB |
| Cassette | SRAM GX 1275 Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
| Chainguide | N/A |
| Crankset | SRAM Rival XPLR, 42T XS/S: 170mm M/L: 172.5mm XL/XXL: 175mm |
| Rear Derailleur | SRAM GX Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM Rival AXS |
| Brakes | SRAM Rival |
| Front Rotor | SRAM Centerline, Centerlock, 160mm |
| Rear Rotor | SRAM Centerline, Centerlock, 160mm |
| Grips / Bar Tape | Velo Bar Tape |
| Handlebars | Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm M: 44cm L/XL/XXL: 46cm |
| Headset | Cane Creek 50 IS Integrated -or- Cane Creek 40 IS Integrated |
| Saddle | WTB Silverado Medium, CroMo |
| Seatpost | Easton EC70, 27.2, Zero Offset, 350mm |
| Stem | Zipp Service Course Stem, 70mm |
| Front Rim | Easton ARC Offset 25 700c |
| Front Hub | DT Swiss 370, 12x100, Centerlock, 28h |
| Front Tire | Maxxis Rambler, 700x45c, DC, EXO |
| Rear Rim | Easton ARC Offset 25 700c |
| Rear Hub | DT Swiss 370, 12x142, XDR, Centerlock, 28h |
| Rear Tire | Maxxis Rambler, 700x45c, DC, EXO |
| Valves | Reserve Fillmore Valves |
| Bottom Bracket Shell | Threaded 68mm |
| Rear Brake Mount | 160mm FM |
| Fork Axle to Crown | 430mm |
| Fork Compatibility | 40mm |
| Fork Offset | 45mm |
| Front Derailleur Mount | Clamp On |
| Headset (Frame Spec) | Integrated (IS41/52) |
| Max Chainring Size | 42T (1x) | 50T (2x) |
| Max Tire Clearance | 50mm (1x) | 45mm (2x) |
| Rear Spacing | 142mm |
| Seat Clamp Diameter | 31.8mm |
| UDH Compatible | Yes |
| Water Bottle Mounts | 3 |
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Reach | 375 | 390 | 405 | 420 | 435 | 450 |
| Stack | 550 | 564 | 576 | 600 | 612 | 631 |
| Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Seat Tube Length | 450 | 455 | 485 | 515 | 545 | 575 |
| Front Center | 605 | 625 | 645 | 668 | 688 | 710 |
| BB Height | 278 | 278 | 280 | 280 | 282 | 282 |
| BB Drop | 78 | 78 | 76 | 76 | 74 | 74 |
| Wheelbase | 1023 | 1043 | 1063 | 1087 | 1108 | 1130 |
| Rear Center | 423 | 423 | 423 | 423 | 423 | 423 |
| Head Tube Length | 90 | 105 | 120 | 145 | 160 | 180 |
| Top Tube Length | 533 | 552 | 570 | 592 | 610 | 631 |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Standover Height | 723 | 728 | 753 | 778 | 804 | 830 |
