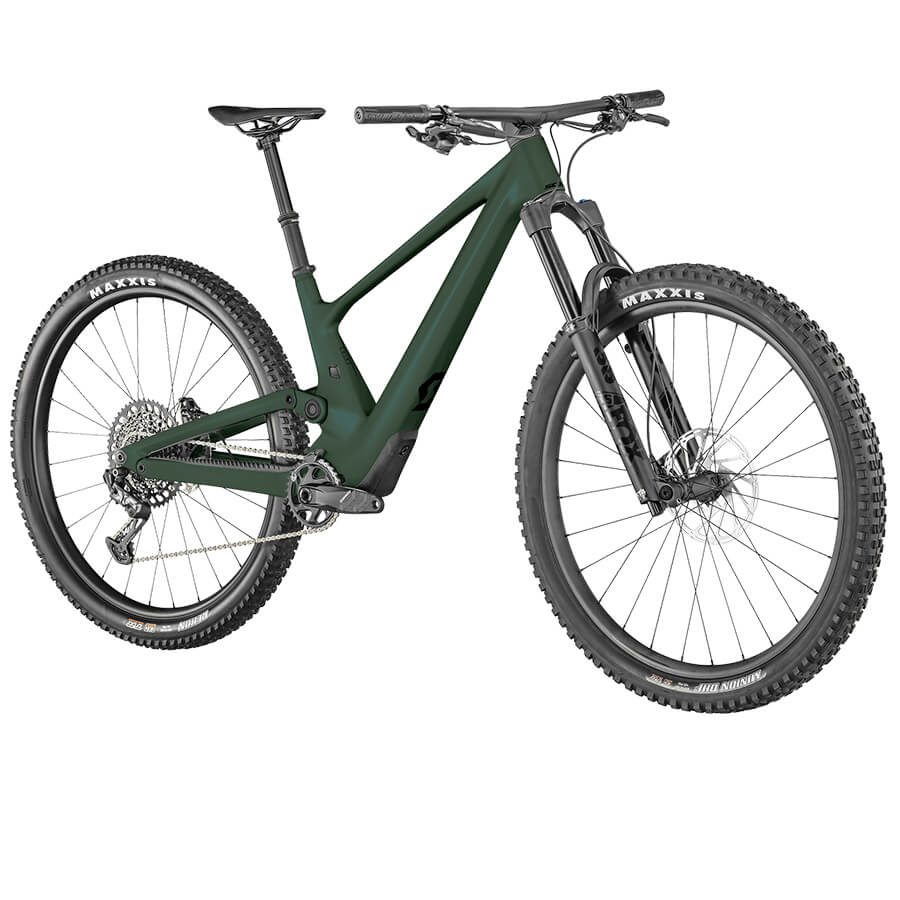

SCOTT Genius 930
Product Description
The new SCOTT Genius receives a bold new redesign that takes this trail bike up to the next level. Its ‘any trail, any time’ mantra is taken up a notch thanks to unique suspension features, cutting-edge design, and top-level geometry. If you yourself want to feel like a genius, choose the SCOTT Genius 930 trail bike, featuring a Shimano SLX-XT drivetrain and Shimano Deore brakes.
The base of the SCOTT Genius is its Integrated Suspension Technology or a fancy name for hiding its rear suspension inside of the frame. You read that right: the shock is INSIDE the frame. To make it work, SCOTT has a built-in sag indicator to every Genius, found on the non-drive side of the bike’s rocker link. SCOTT says it gives the frame a lower center of gravity. Importantly, however, mounting the shock lower means the frame is stiffer around the bottom bracket without adding any extra weight.
Want to access the shock? That is found through a downtube door that is available at a push of a button, also doubling as durable bottom bracket protection.
Each SCOTT Genius uses a three-position shock adjustment lever. Called TwinLoc, this lever is found on the handlebars and controls both the fork and shock simultaneously. This fundamentally changes the character of the bike: the wide-open setting is best for descending, while the middle ‘traction’ setting offers better pedal strike clearance, a more aggressive climbing position, and greater suspension efficiency. And of course, if you’re on a dirt road, you can place the suspension in a full lockout.
Want to customize your SCOTT Genius? Let’s talk and make your bike exactly what you want it to be, from changing wheels to saddle, tires, and more.
The SCOTT Genius 930 receives these build specifications:
- aluminum frame with 150mm travel; Fox Float NUDE shock.
- 160mm Fox Float Rhythm Air fork.
- SCOTT Twinloc suspension and dropper remote
- Shimano SLX drivetrain with XT derailleur
- Syncros alloy bar and stem
- Syncros X30S wheels
- Syncros Duncan 1.5 dropper post
- Maxxis Dissector tires
REVIEWS
Specifications
| *Please note that bike specifications are subject to change without prior notice | |
| Model | Genius 930 |
| FRAME | Genius Alloy 6061, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm |
| Chainline | |
| FORK | FOX 36 Float Rhythm Air Grip, 3-Modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 160mm travel |
| REAR SHOCK | FOX Float Custom EVOL Performace Trunnion, 3 modes / Lockout-Trail-Descend, DPS / Reb. Adj., Travel 150mm / T185X55mm |
| REMOTE SYSTEM | SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes |
| REAR DERAILLEUR | Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed |
| SHIFTERS | Shimano Deore SL-M6100-R / Rapidfire Plus |
| CRANKSET | Praxis Cadet M24HD, 55mm CL / 32T |
| CHAINGUIDE | SCOTT custom |
| BB-SET | Praxis M24 BB92 / shell 41x92mm |
| CHAIN | Shimano Deore CN-M6100 |
| CASSETTE | Shimano Deore CS-M6100-12 / 10-51 T |
| BRAKES | SRAM DB8 4 Piston Disc |
| ROTOR | SRAM Centerline CL Rotors 200/F and 180/R |
| HANDLEBAR | Syncros Hixon 2.0 Alloy 6061 D.B., 12mm Rise / back sweep 8° / 780mm, Syncros Endurance lock-on grips |
| STEM | Syncros AM 2.0, Syncros Cable Integration System, 4° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| SEATPOST | Syncros Duncan Dropper Post 2.5, 31.6mm / S size 125mm / M size 150mm / L & XLsize 170mm |
| SEAT | Syncros Tofino 2.5 Regular |
| HEADSET | Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| HUB (FRONT) | Formula CL-811 / 15x110mm |
| HUB (REAR) | Formula CL-148M / 12x148mm |
| SPOKES | Stainless Black 15G / 1.8mm |
| RIMS | Syncros X-30S / 32H / 30mm / Sleeve Joint, Tubeless ready |
| FRONT TIRE | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO |
| REAR TIRE | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO |
| EXTRAS | Syncros Fork Fender |
| APPROX WEIGHTS IN KG | 15.5 (Tubeless setup) |
| APPROX WEIGHTS IN LBS | 34.17 (Tubeless setup), MAX. SYSTEM WEIGHT128kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
Geometry
| S | M | L | XL | ||
| A | HEAD TUBE ANGLE (+0.6° HEADSET SETTING) | 65.1 ° | 65.1 ° | 65.1 ° | 65.1 ° |
| B | HEAD TUBE LENGTH | 90.0 MM | 100.0 MM | 120.0 MM | 135.0 MM |
| C | TOP TUBE HORIZONTAL | 570.1 MM | 602.2 MM | 631.3 MM | 659.3 MM |
| D | STANDOVER HEIGHT | 728.5 MM | 738.5 MM | 753.5 MM | 768.5 MM |
| E | BB OFFSET | -33.0 MM | -33.0 MM | -33.0 MM | -33.0 MM |
| F | BB HEIGHT | 342.5 MM | 342.5 MM | 342.5 MM | 342.5 MM |
| G | WHEEL BASE | 1,182.0 MM | 1,216.0 MM | 1,249.0 MM | 1,281.0 MM |
| I | BB CENTER TO TOP OF SEATTUBE | 380.0 MM | 410.0 MM | 440.0 MM | 470.0 MM |
| J | SEAT ANGLE | 76.8 ° | 77.1 ° | 77.2 ° | 77.4 ° |
| K | CHAINSTAY | 440.0 MM | 440.0 MM | 440.0 MM | 440.0 MM |
| L | REACH | 430.0 MM | 460.0 MM | 485.0 MM | 510.0 MM |
| M | STACK | 617.0 MM | 626.1 MM | 644.2 MM | 657.8 MM |
| N | STEM LENGTH | 40.0 MM | 40.0 MM | 50.0 MM | 50.0 MM |
| 0 | TRAIL | 125.8 MM | 125.8 MM | 125.8 MM | 125.8 MM |
| P | FORK LENGTH | 571.0 MM | 571.0 MM | 571.0 MM | 571.0 MM |
| Q | MAXIMUM SEATPOST INSERTION | 173.0 MM | 204.0 MM | 234.0 MM | 265.0 MM |
| R | CRANK LENGTH | 170.0 MM | 175.0 MM | 175.0 MM | 175.0 MM |
