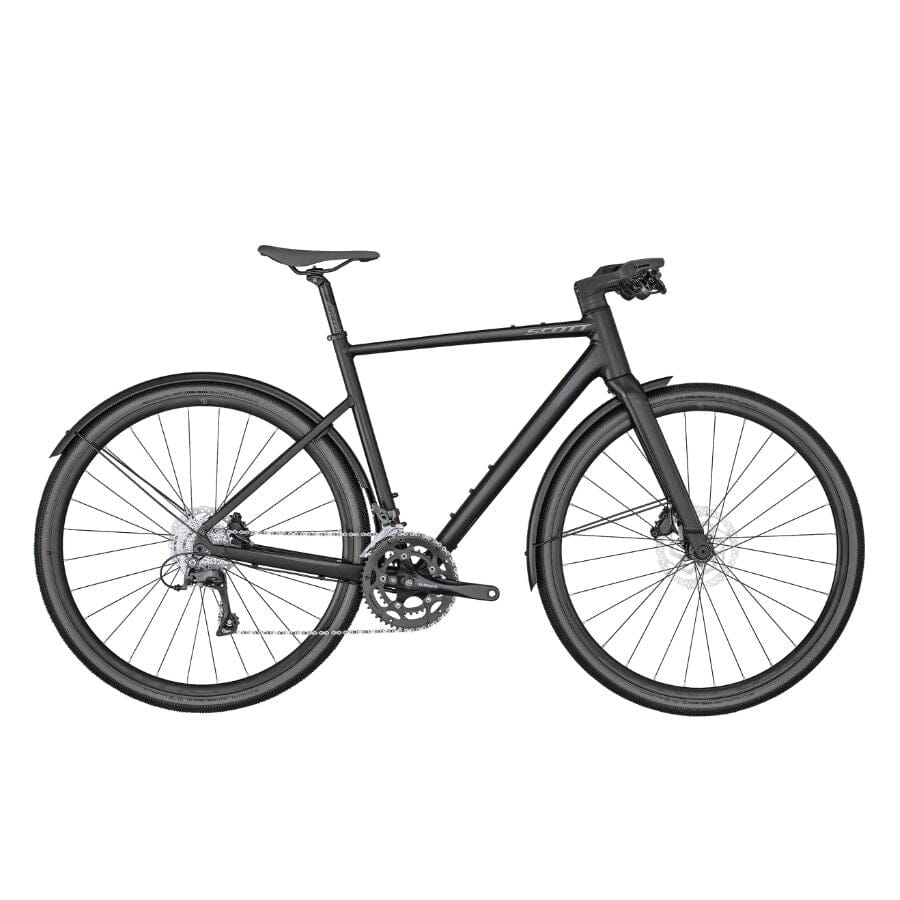

SCOTT Metrix 30 EQ 2022
Product Details
The SCOTT Metrix 30 EQ 2022 is built for riders looking for comfort, an enjoyable urban riding experience, and all-weather reliability. With a lightweight 6061 alloy frame and a matching alloy disc fork, this flat-bar commuter delivers responsive handling and long-lasting durability for city streets and beyond.
Its endurance-focused geometry strikes a balance between sporty and comfortable, making it ideal for both daily commutes and weekend adventures. Internal cable routing keeps the bike’s profile sleek while minimizing maintenance, and full-coverage Syncros fenders offer practical protection through rain, mud, and changing seasons.
A Shimano Claris 2x8 drivetrain ensures smooth, precise shifting across a range of terrains, while hydraulic disc brakes from Shimano provide reliable stopping power in all conditions. Wide Schwalbe G-One Allround tires give you dependable grip and control, whether you're navigating rough pavement, damp streets, or gravel shortcuts.
From weekday rides to weekend miles, the Metrix 30 EQ is your do-it-all commuter, blending functionality, comfort, and SCOTT’s signature attention to detail.
Key Features
-
Frame - Alloy 6061 with integrated cable routing and endurance geometry
- Drivetrain - Shimano Claris 2x8-speed
- Brakes - Shimano BR-UR300 hydraulic disc brakes
- Wheelset - Syncros Race 24 Disc with Schwalbe G-One Allround tires
*Please note that bike specifications are subject to change without prior notice
| Specification | Detail |
|---|---|
| Frame | Metrix Disc / 6061 D.Butted Alloy |
| Geometry / Derailleur Hanger | Endurance geometry / Replaceable Derailleur Hanger |
| Fender Compatibility | Syncros fender kit ready |
| Fork | Metrix Alloy Disc |
| Steerer | 1 1/4"-1 1/2" Eccentric Alloy steerer |
| Rear Derailleur | Shimano Claris RD-R2000-GS |
| Speed | 16 Speed |
| Front Derailleur | Shimano Claris FD-R2000 |
| Shifters | Shimano SL-R2000 |
| Crankset | Shimano FC-RS200 50x34 T |
| BB-Set | Shimano BB-ES300 |
| Chain | KMC X8 |
| Cassette | Shimano CS-HG50 8 Speed 11-32 T |
| Brake Levers | Shimano BL-MT201 |
| Brakes | Shimano BR-UR300 Hyd.Disc |
| Rotor | Shimano SM-RT10 CL rotor 160/F and 160/R |
| Handlebar | Syncros Flat-Bar FL2.0 620mm |
| Stem | Syncros RR2.5 1 1/4" / four Bolt 31.8mm |
| Seatpost | Syncros RR2.5 27.2/300mm |
| Seat | Syncros Tofino Regular 2.5 |
| Headset | Acros AIF-1113 |
| Front Hub | Formula Team II CL Disc 28 H |
| Rear Hub | Formula Team II CL Disc 28 H |
| Spokes | Black 2mm |
| Rims | Syncros Race 24 Disc / 28 Front & 28 Rear |
| Front Tire | Schwalbe G-ONE Allround 700x40C |
| Rear Tire | Schwalbe G-ONE Allround 700x40C |
| Extras | Syncros fender kit |
| Approx weight (kg) | 11.64 |
| Approx weight (lbs) | 25.66 |
| Max. System Weight | 120 kg (Includes bike, rider, equipment, and possible additional luggage) |
| Size | XXS / 47 | XS / 49 | S / 52 | M / 54 | L / 56 | XL / 58 | XXL / 61 |
|---|---|---|---|---|---|---|---|
| Head Tube Angle | 70.0° | 70.0° | 70.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length | 93 | 103 | 123 | 143 | 163 | 183 | 203 |
| Top Tube Horizontal | 512.3 | 523.0 | 536.5 | 556.5 | 571.2 | 581.2 | 594.2 |
| Standover Height | 747 | 762 | 786 | 806 | 825 | 844 | 869 |
| BB Offset | -71 | -71 | -71 | -71 | -71 | -71 | -71 |
| BB Height | 283 | 283 | 283 | 283 | 283 | 283 | 283 |
| Wheelbase | 1,019.5 | 1,026.9 | 1,037.7 | 1,044.9 | 1,056.4 | 1,067.0 | 1,071.3 |
| BB Center to Top Tube Center | 430 | 450 | 480 | 500 | 520 | 540 | 570 |
| BB Center to Top of Seat Tube | 470 | 490 | 520 | 540 | 560 | 580 | 610 |
| Seat Angle | 75.0° | 74.5° | 74.0° | 73.0° | 72.5° | 72.5° | 72.5° |
| Chainstay | 435 | 435 | 435 | 439 | 439 | 439 | 439 |
| Reach | 374 | 378 | 382 | 387 | 392 | 396 | 403 |
| Stack | 519 | 528.4 | 547.2 | 570 | 588.9 | 607.8 | 626.8 |
| Stem Length | 73 | 83 | 93 | 103 | 103 | 113 | 113 |
