Product Details

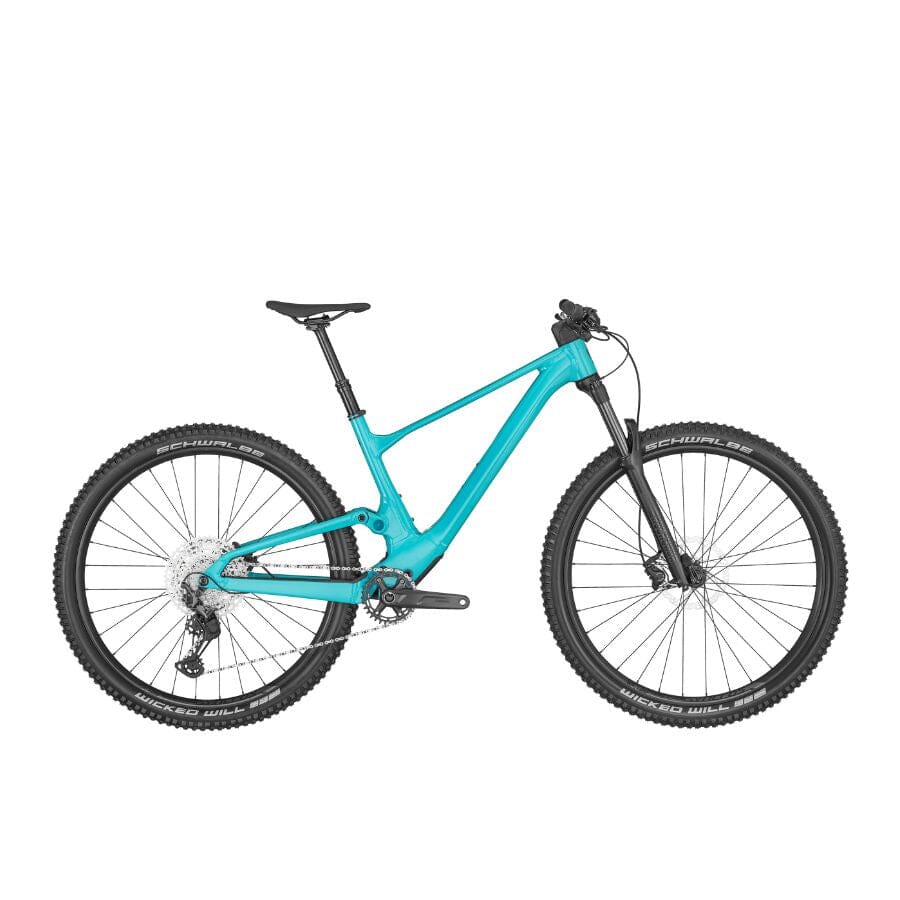

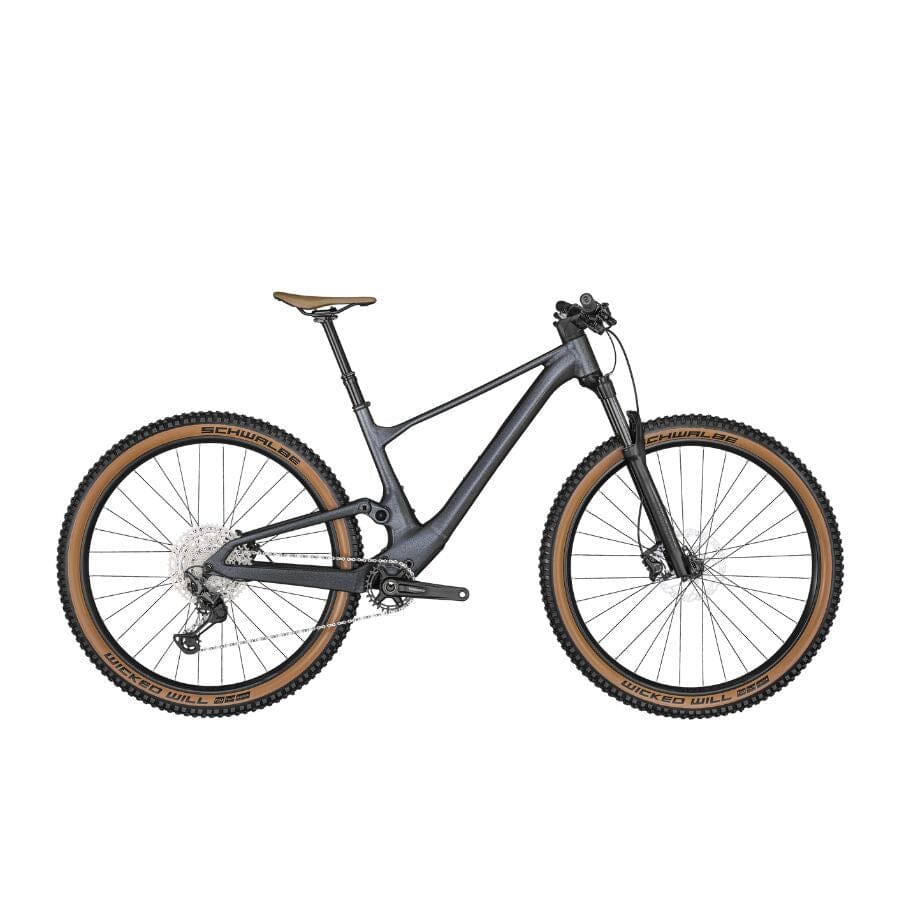

Fast is fun. It’s SCOTT Bicycles’ marketing catchphrase for a reason, and the 2023 SCOTT Spark 960 full suspension cross-country mountain bike aims to be the most fun bike you can find because they believe it’s also the fastest bike you can find at the price. Designed to propel racers to victory at World Cup races, the Olympics, and mid-week training races alike, the SCOTT Spark 960 provides all the tools needed to set KOMs or PRs. With revolutionary technology and top-end components, SCOTT’s best delivers performance limited only by the rider. Throw in a little more travel in the fork, and you’re ready to attack the descents with gusto.
If fast, and therefore fun, is your goal, the 2023 SCOTT Spark 960 is your ride. A rugged alloy frame is lightweight, strong, and climbs like a dream, with a beefed-up suspension system to add extra downhill capability to the already quick cross-country legend. Boasting SCOTT’s patented Integrated Suspension Technology, which conceals the rear shock inside the frame, the Spark 960 offers an unrivaled level of performance and possibilities. Racing up and down hills, flying through rock gardens, and sending it through berms and jumps has never been more within reach. The combination of SCOTT’s innovative design and high-quality components ensures this bike is ready for any adventure.
Featuring a RockShox Judy 130mm fork and X-Fusion Nude 5 shock with SCOTT’s TwinLoc remote system, the SCOTT Spark 960 is as plush as it gets. A Shimano XT-Deore 1x12 drivetrain with an integrated power meter blends with a Shimano disc brake set to provide unmatched stop-and-go performance. A set of 29-inch Syncros X-30SE TR wheels and Schwalbe Wicked Will tires with a 2.4-inch width create a dependable and responsive footprint to ensure maximum traction and power transfer from leg to dirt. Built with high-end Syncros components from front to back and top to bottom, and a Syncros Dropper Post, the 2023 SCOTT Spark 960 is one of the most race-ready bikes you’ll find. Get yours and discover why fast is fun.
KEY FEATURES
- Spark Alloy SL Frame
- RockShox Judy 130mm Fork
- X-Fusion Nude 5, 120mm, TwinLoc
- Shimano XT-Deore 12 Speed
- Shimano Disc Brakes
- Schwalbe Wicked Will Tires
*Please note that bike specifications are subject to change without prior notice |
FRAME | Spark Alloy SL 6011 / Integrated Suspension Technology / Flex Pivot / Adjustable head angle / Syncros Cable Integration System / BB92 / UDH Interface / 12x148mm with 55mm Chainline |
FORK | RockShox Judy Silver TK Solo Air / 15x110mm QR axle / 42mm offset / Tapered Steerer / 2-Modes / Reb. Adj. / Lockout / 130mm travel |
REAR SHOCK | X-Fusion NUDE 5 RLX Trunnion / SCOTT custom w. travel / geo adj. / 3 modes: Lockout-Traction Control-Descend / Reb. Adj. / Travel 120-80-Lockout / T165X45mm |
REMOTE SYSTEM | SCOTT TwinLoc 2 Technology / Suspension & Dropper Remote / 3 Suspension modes |
REAR DERAILLEUR | Shimano XT RD-M8100 SGS / Shadow Plus / 12 Speed |
SHIFTERS | Shimano Deore SL-M6100-R / Rapidfire Plus |
CRANKSET | Praxis Cadet M24 / 55mm CL / 32T |
BB-SET | Praxis M24 BB92 / shell 41x92mm |
CHAIN | KMC X12 |
CASSETTE | Shimano Deore CS-M6100-12 / 10-51 T |
BRAKES | Shimano MT501 Disc |
ROTOR | Shimano SM-RT54 CL / F&R 180mm |
HANDLEBAR | Syncros Fraser 2.0 DC Alloy 6061 D.B. / mini Rise / back sweep 8° / 760mm / Syncros Performance XC lock-on grips |
H'STEM | Syncros DC 3.0 / Syncros Cable Integration System / 0° rise / 6061 Alloy / 31.8mm / 1 1/8" |
SEATPOST | Syncros Duncan Dropper Post 2.5 / 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm |
SEAT | Syncros Tofino 2.5 Regular |
HEADSET | Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment / ZS56/28.6 – ZS56/40 MTB |
HUB (FRONT) | Shimano HB-MT410-B CL / 15x110mm |
HUB (REAR) | Shimano FH-MT410-B CL / 12x148mm / Micro Spline |
SPOKES | Stainless Black 15G / 1.8mm |
RIMS | Syncros X-30SE / 32H / 30mm |
FRONT TIRE | Schwalbe Wicked Will / 29x2.4" / Performance / TLR / Foldable / Addix |
REAR TIRE | Schwalbe Wicked Will 29x2.4" / Performance / TLR / Foldable / Addix |
APPROX WEIGHTS IN KG | 14.95 (with tubes) |
APPROX WEIGHTS IN LBS | 32.96 (with tubes) / MAX. SYSTEM WEIGHT128kg / The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
S | M | L | XL | ||
A | head tube angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
B | head tube length | 90.0 mm | 90.0 mm | 105.0 mm | 115.0 mm |
C | top tube horizontal | 561.0 mm | 589.0 mm | 613.0 mm | 641.0 mm |
D | standover height | 759.0 mm | 767.0 mm | 778.0 mm | 801.0 mm |
E | BB offset | -43.5 mm | -43.5 mm | -43.5 mm | -43.5 mm |
F | BB height | 331.5 mm | 331.5 mm | 331.5 mm | 331.5 mm |
G | wheel base | 1,145.0 mm | 1,174.0 mm | 1,205.0 mm | 1,236.0 mm |
H | BB center to toptube center | ||||
I | BB center to top of seattube | 415.0 mm | 440.0 mm | 490.0 mm | 540.0 mm |
J | seat angle | 75.7 ° | 75.9 ° | 76.4 ° | 76.7 ° |
K | chainstay | 437.5 mm | 437.5 mm | 437.5 mm | 437.5 mm |
L | reach | 410.0 mm | 440.0 mm | 470.0 mm | 500.0 mm |
M | stack | 607.5 mm | 607.5 mm | 617.7 mm | 627.0 mm |
N | stem length | 50.0 mm | 60.0 mm | 60.0 mm | 70.0 mm |
O | trail | 107.0 mm | 107.0 mm | 107.0 mm | 107.0 mm |
P | Fork length | 540.0 mm | 540.0 mm | 540.0 mm | 540.0 mm |
Q | Maximum Seatpost Insertion | 150.0 mm | 175.0 mm | 225.0 mm | 275.0 mm |
R | Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
