Product Details

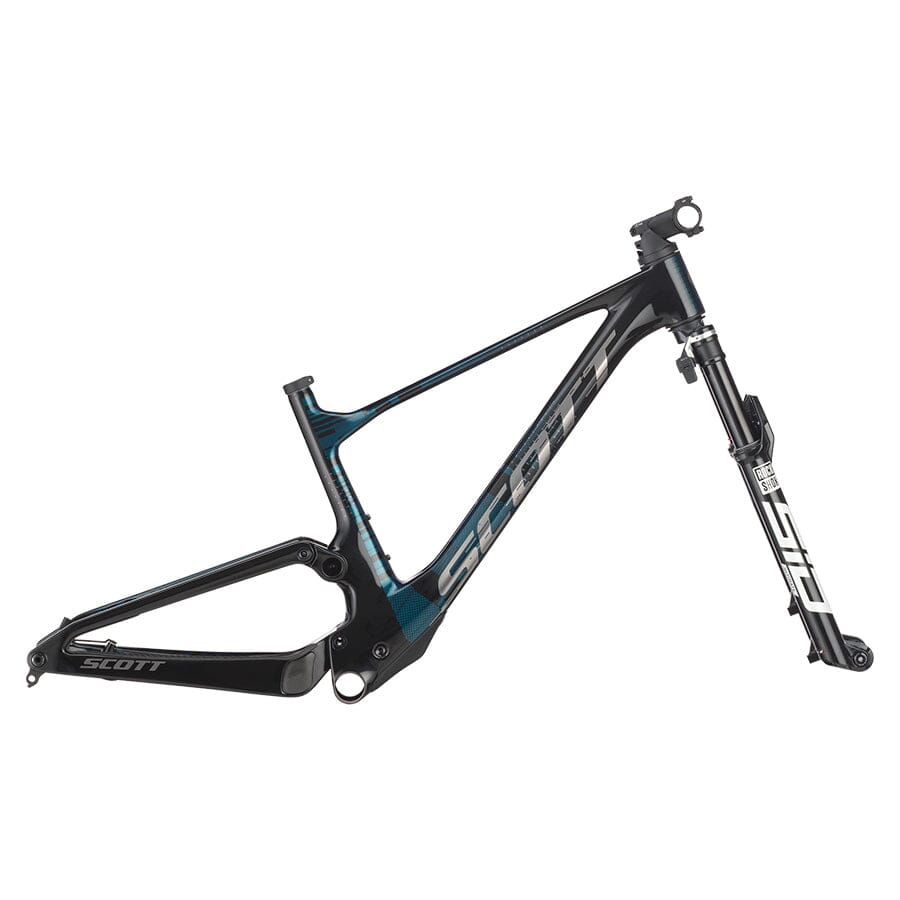

The SCOTT Spark RC SL HMX SL Frame+Fork offers an unparalleled foundation for building your dream cross-country race bike. Engineered with the finest carbon technology and cutting-edge design, this frame delivers the ultimate blend of lightweight performance and structural integrity. The HMX SL carbon fiber layup is meticulously crafted to minimize weight while maximizing stiffness, giving you the edge you need to conquer climbs and tear through descents with precision. Whether you're chasing podiums or just the thrill of the ride, this frame is designed to meet the highest standards of competition.
The Spark RC SL frame is more than just a piece of equipment—it's the result of SCOTT's relentless pursuit of perfection. With its integrated design, the frame boasts one of the most streamlined profiles on the market, reducing drag and enhancing aerodynamics. The geometry has been fine-tuned for modern cross-country racing, featuring a slack head angle and a steep seat tube angle for a perfect balance of stability and responsiveness. The frame's rear suspension is built around SCOTT's TwinLoc Suspension System, offering three distinct modes that allow you to adapt to varying terrain with just the flick of a switch. This means you can climb efficiently, traverse technical sections with confidence, and descend at full speed without missing a beat.
Included in this package is a FOX 34 Float Factory fork, adding 120mm of travel that perfectly complements the frame's aggressive geometry. The FOX fork is renowned for its performance and adjustability, giving you the confidence to tackle any trail conditions. With the Spark RC SL HMX SL Frame+Fork, you're not just assembling a bike—you're crafting a machine that embodies your dedication to speed, performance, and innovation. Embrace the challenge, push your limits, and build the bike that will take you to the next level.
KEY FEATURES
*Please note that bike specifications are subject to change without prior notice |
FRAME | Spark RC Carbon HMX SL Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline |
---|---|
TRAVEL | Lockout - 80 - 120mm |
FORK | FOX 34 SC Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset Tapered steerer / Lockout / Reb. Adj. 120mm travel |
REAR SHOCK | FOX NUDE 5 Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend DPS / Kashima / Reb. Adj. T165X45mm |
ACCESSORIES | Twinloc 2 Remote Control Shifter Kit Syncros - Acros Pro Headset System Syncros Fraser iC Handlebar Syncros rear axle |
APPROX WEIGHT IN KG | Frame incl. Shock 1870g |
APPROX WEIGHT IN LBS | Frame incl. Shock 4.12 lbs |
Size | S | M | L | XL |
---|---|---|---|---|
HEAD TUBE ANGLE | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
HEAD TUBE LENGTH | 90.0 MM | 90.0 MM | 105.0 MM | 115.0 MM |
TOP TUBE HORIZONTAL | 562.0 MM | 590.0 MM | 614.0 MM | 642.0 MM |
STANDOVER HEIGHT | 758.0 MM | 765.0 MM | 776.0 MM | 799.0 MM |
BB OFFSET | -45.0 MM | -45.0 MM | -45.0 MM | -45.0 MM |
BB HEIGHT | 330.0 MM | 330.0 MM | 330.0 MM | 330.0 MM |
WHEEL BASE | 1,129.0 MM | 1,159.0 MM | 1,190.0 MM | 1,231.0 MM |
BB CENTER TO TOP OF SEATTUBE | 415.0 MM | 440.0 MM | 490.0 MM | 540.0 MM |
SEAT ANGLE | 75.9 ° | 76.1 ° | 76.6 ° | 76.9 ° |
CHAINSTAY | 437.5 MM | 437.5 MM | 437.5 MM | 437.5 MM |
REACH | 411.0 MM | 441.0 MM | 471.0 MM | 501.0 MM |
STACK | 602.5 MM | 602.5 MM | 616.0 MM | 625.0 MM |
STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM |
TRAIL | 115.0 MM | 115.0 MM | 115.0 MM | 115.0 MM |
FORK LENGTH | 530.0 MM | 530.0 MM | 530.0 MM | 530.0 MM |
MAXIMUM SEATPOST INSERTION | 150.0 MM | 175.0 MM | 225.0 MM | 275.0 MM |
CRANK LENGTH | 170.0 MM | 175.0 MM | 175.0 MM | 175.0 MM |
