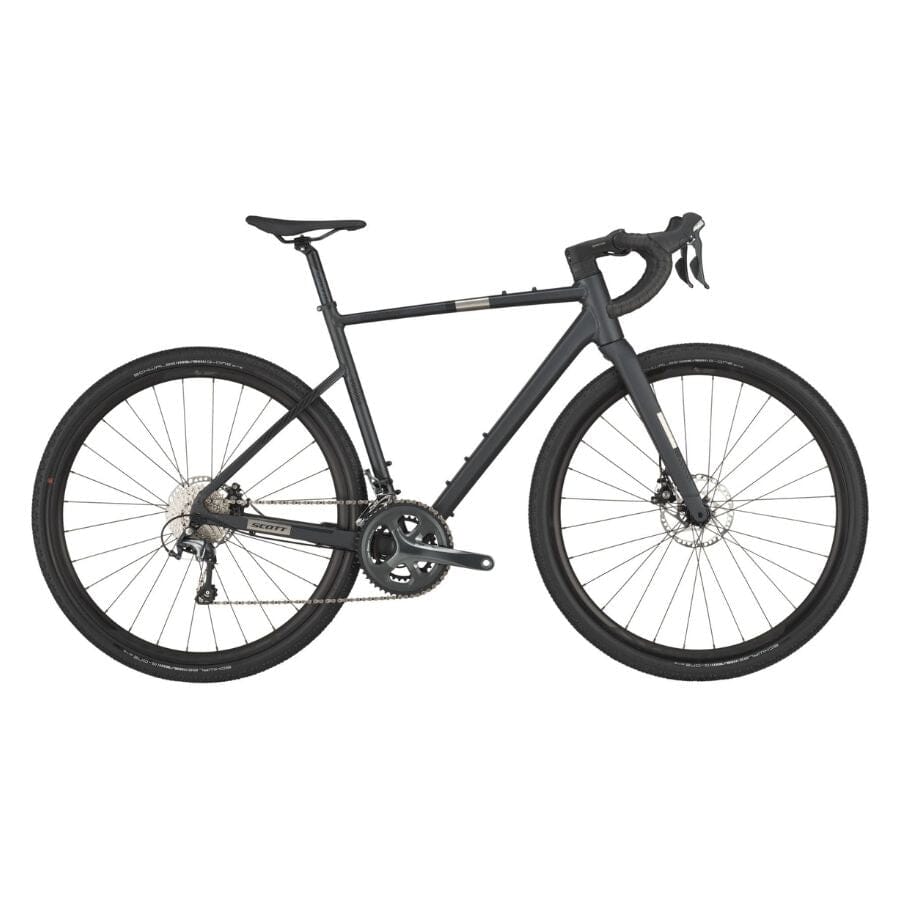

SCOTT Speedster Gravel 40
Product Details
The SCOTT Speedster Gravel 40 is built to take you off the beaten path with confidence and comfort. Whether you're exploring country roads, venturing into light trails, or commuting through the city, this versatile bike is ready for the ride. With a stable, endurance-focused geometry and rugged construction, the Speedster Gravel 40 makes long days in the saddle smoother and more enjoyable.
A durable alloy frame and matching alloy fork provide reliable handling and efficient power transfer, while the Shimano Tiagra 2x10-speed drivetrain offers a wide gear range to handle everything from steep climbs to fast descents. Hydraulic disc brakes ensure consistent stopping power in all conditions, and internal cable routing keeps things tidy and low maintenance. Schwalbe G-One Bite tires provide confident grip and smooth rolling across pavement, gravel, and everything in between.
Key Features:
-
Speedster Gravel Alloy Frame & Fork: Strong, efficient alloy construction tuned for comfort and durability over mixed terrain.
-
Shimano Tiagra 2x10 Drivetrain: Dependable, smooth-shifting performance with a wide gear range for varied routes.
-
Endurance Geometry & Hydraulic Disc Brakes: All-day comfort and control, no matter where the road—or trail—takes you.
*Please note that bike specifications are subject to change without prior notice
| Specification | Detail |
|---|---|
| Frame | Speedster Gravel | D.Butted 6061 Alloy | SCOTT Gravel Geometry | Internal Cable Routing | Replaceable Derailleur Hanger | Syncros Fender Kit Ready |
| Fork | Speedster Alloy Disc | 1 1/4"-1 1/2" Excentric Alloy Steerer |
| Rear Derailleur | Shimano Tiagra RD-4700-GS | 20-Speed |
| Front Derailleur | Shimano Tiagra FD-4700 |
| Shifters | Shimano Tiagra ST-4700 | Dual Control | 20-Speed |
| Crankset | Shimano Tiagra FC-4700 | 50/34T |
| Bottom Bracket | Shimano BB-UN300 |
| Chain | KMC X10 |
| Cassette | Shimano CS-HG500 | 10-Speed | 11-34T |
| Brakes | Shimano BR-RS305 | Mechanical Disc |
| Rotors | Shimano SM-RT64 | 160mm Front / 160mm Rear |
| Handlebar | Syncros Creston 2.0 X | Alloy | 31.8mm |
| Stem | Syncros RR2.5 | 1 1/4" | Four Bolt | 31.8mm |
| Seatpost | Syncros RR2.5 | 27.2mm x 350mm |
| Saddle | Syncros Tofino Regular 2.5 |
| Headset | Acros AIF-1133 |
| Hubs | Formula Team II CL Disc | 28H Front & Rear |
| Spokes | Black 2mm |
| Rims | Syncros Race X25 Disc | 28H Front / 28H Rear |
| Front Tire | Schwalbe G-One Bite Performance | 700x45C |
| Rear Tire | Schwalbe G-One Bite Performance | 700x45C |
| Weight | 11.4kg (25.13 lbs) |
| Measurement | XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 |
|---|---|---|---|---|---|---|---|
| Head Tube Angle | 70.0° | 70.0° | 70.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length (mm) | 93.0 | 103.0 | 123.0 | 143.0 | 163.0 | 183.0 | 203.0 |
| Top Tube (Horizontal) (mm) | 512.3 | 523.0 | 536.5 | 556.5 | 571.2 | 581.2 | 594.2 |
| Standover Height (mm) | 747.0 | 762.0 | 786.0 | 806.0 | 825.0 | 844.0 | 869.0 |
| BB Offset (mm) | -71.0 | -71.0 | -71.0 | -71.0 | -71.0 | -71.0 | -71.0 |
| BB Height (mm) | 283.0 | 283.0 | 283.0 | 283.0 | 283.0 | 283.0 | 283.0 |
| Wheelbase (mm) | 1,019.5 | 1,026.9 | 1,037.7 | 1,044.9 | 1,056.4 | 1,067.0 | 1,071.3 |
| BB to Top Tube Center (mm) | 430.0 | 450.0 | 480.0 | 500.0 | 520.0 | 540.0 | 570.0 |
| BB to Top of Seat Tube (mm) | 470.0 | 490.0 | 520.0 | 540.0 | 560.0 | 580.0 | 610.0 |
| Seat Tube Angle | 75.0° | 74.5° | 74.0° | 73.0° | 72.5° | 72.5° | 72.5° |
| Chainstay Length (mm) | 435.0 | 435.0 | 435.0 | 439.0 | 439.0 | 439.0 | 439.0 |
| Reach (mm) | 374.0 | 378.0 | 382.0 | 387.0 | 392.0 | 396.0 | 403.0 |
| Stack (mm) | 519.0 | 528.4 | 547.2 | 570.0 | 588.9 | 607.8 | 626.8 |
| Stem Length (mm) | 73.0 | 83.0 | 93.0 | 103.0 | 103.0 | 113.0 | 113.0 |
